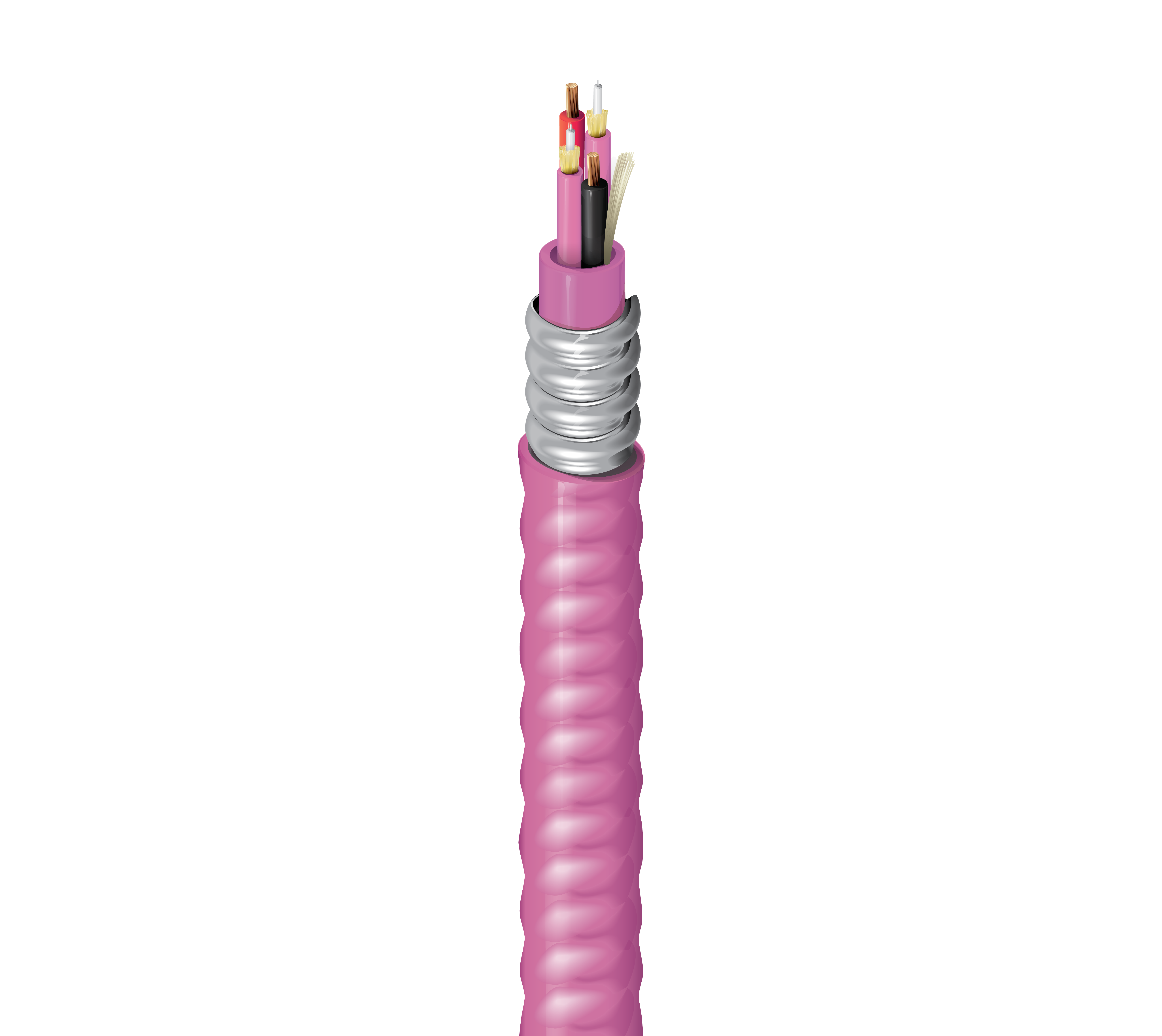

Indoor Armored Hybrid Copper-Fiber Cable, OM4, 2 Breakout Fibers, #14-2c, CL3R-OF
FX HYBRID INDOOR, OM4, BREAKOUT, 2 FIBERS, 02 x 14AWG, CL3R-OF ALUMINUM INTERLOCKED ARMOR, SUB-UNIT 2.0MM (1F X 900UM), ERIKA VIOLET JACKET
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Distributed Antenna Systems (DAS), Passive Optical Network (PON), Wireless Access Points (WAP), Security (Cameras) |
|---|
Fiber Specifications
| Fiber Type | OM4 |
|---|---|
| Fiber Core Diameter | 50/125 μm |
| Fiber Buffer Material | PVC - Polyvinyl Chloride |
| Fiber Buffer Diameter | 900 μm |
| Fiber Count | 2 |
| Fiber Color Code | TIA-598-D |
Fiber Construction
| Fiber SubUnit Strength Members | Aramid yarns |
|---|---|
| Fibers Per Subunit | 1 |
| Nominal Jacket Diameter | 0.078 in. (2.0 mm) |
| Jacket Color Fiber Unit | Erika Violet |
Conductor Specifications
| AWG Size | 14 |
|---|---|
| Number of Strands | 19x26 |
| Conductor Type | TC - Tinned Copper |
| Number of Conductors | 2 |
| Insulation Material | PVC |
| Nom. Insulation Diameter | 0.090 in. (2.3 mm) |
Inner Jacket Specifications
| Inner Jacket Strength Member | Aramid Yarns |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nominal Diameter@InnerJacket1 (cnv) | 0.318 in (8.1 mm) |
| Color | Erika Violet |
Armor Specifications
| Armor Type and Material | AIA - Aluminum Interlock Armor |
|---|
Outer Jacket Specifications
| Jacket Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Diameter | 0.61 in (15.5 mm) |
| Outer Jacket Color | Erika Violet |
| Outer Jacket Ripcord | 1 |
Optical Characteristics
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1.0 dB/km |
| 1 Gigabit Ethernet Performance | 1000 m | 550 m |
| 10 Gigabit Ethernet Performance | 550 m | -- |
| Min. Effective Modal Bandwidth (EMB) | 4700 MHz.km | -- |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz.km | 500 MHz.km |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 20x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 15x Cable OD |
| Max. Tensile Strength During Installation | 1335 N (300 lbf) |
| Max. Tensile Strength During Operation | 400 N (90 lbf) |
| Crush Resistance | 440 N/cm |
| Bulk Cable Weight | 170 lbs/kft (253 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor |
|---|---|
| Sustainability | CA Prop 65 |
| NEC / UL Compliance | CL3R-OF |
| ICEA Compliance | S-120-742 |
| TIA/EIA Compliance | ICEA S-120-742 |
History
| Update and Revision | Revision Number: 0.27 Revision Date: 02-15-2024 |
|---|
