Product Number: UHF4G2.5CY

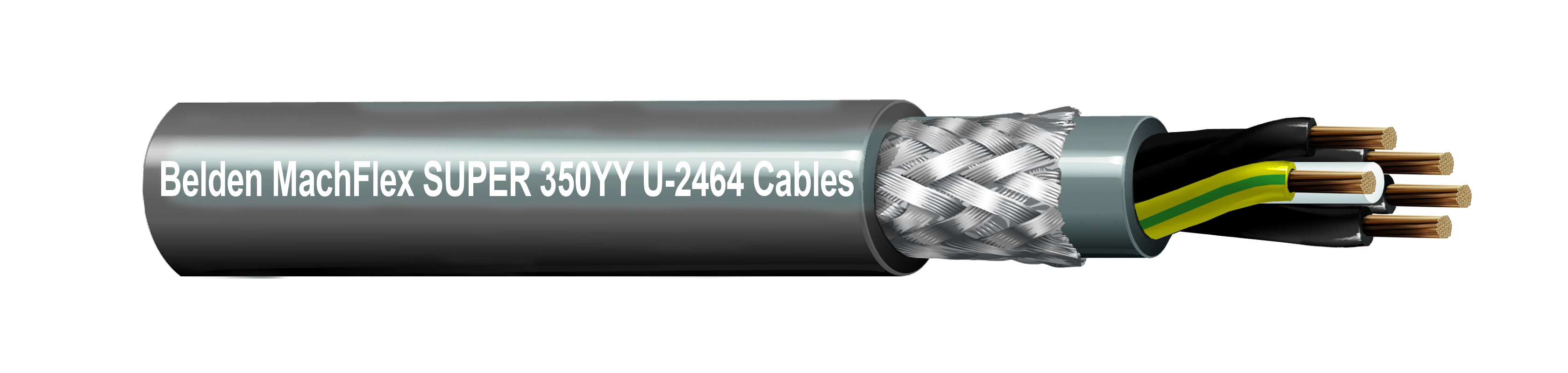

MachFlexTM High Flex 350CY UL Certified, 3 C + 1 G 2.5 mm2 Str BC, PVC Ins, PVC Inner Jkt, TCBS, PVC Outer Jkt

MachFlexTM High Flex Control 350CY UL Certified, 3 Conductors + Ground 2.5 mm2 Stranded Bare Copper, PVC Insulation, PVC Inner Jacket, Tinned Copper Braid Shield, PVC Outer Jacket

Availability: Global
Status: Active
Orderable items: 9

Ships from and sold by A5 IT.

Part numbers

UHF4G2.5CY is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
UHF4G2.5CY 010200M	Black	200 m	Order online
UHF4G2.5CY 010300M	Black	300 m	Order online
UHF4G2.5CY 010500M	Black	500 m	Order online
UHF4G2.5CY 006200M	Blue	200 m	Order online
UHF4G2.5CY 006300M	Blue	300 m	Order online
UHF4G2.5CY 006500M	Blue	500 m	Order online
UHF4G2.5CY G8U200M	Gray, RAL 7001	200 m	Order online
UHF4G2.5CY G8U300M	Gray, RAL 7001	300 m	Order online
UHF4G2.5CY G8U500M	Gray, RAL 7001	500 m	Order online

Specifications

Product Overview

Suitable Applications

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. This type of cables with flex cycles more than 5 millions would be ideally applied to drag chain and the frequently moving fields. Shielding would highly enable the cables be qualified with excellent immunity. This product group also meets UL standard requirements.

Construction Details

Overall Cable Diameter (Nominal)	12.2 mm (0.480 in)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	2.5 mm2	Stranded	BC - Bare Copper
Ground	1	2.5 mm2	Stranded	BC - Bare Copper

Insulation

Element	Material	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	Black #1, Black #2, Black #3
Ground	PVC - Polyvinyl Chloride	Yellow/Green

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	80%

Inner Jacket

Material	PVC - Polyvinyl Chloride

Outer Jacket

Material	PVC - Polyvinyl Chloride

Electrical Characteristics

Voltage

UL Voltage Rating	300 V (Max. Operating Voltage)
Voltage Rating	300/500 V (Max. Operating Voltage (VDE)), 4000 V (Testing Voltage)

Mechanical Characteristics

Table Notes	"Drag Chain Performance : 1m Travel Distance, Travel Speed 2m/s, Acceleration 4m/s2 ≥ 5,000,000 Cycles; 5m Travel Distance, Travel Speed 3m/s, Acceleration 10m/s2 ≥ 200,000 Cycles"
Bulk Cable Weight	249 kg/km (167 lbs/1000ft)

Temperature

Operating	0°C to +70°C ( UL: +80°C ) (Continuous movement)
Installation	‐40°C to +80°C ( UL: +80°C ) (Fixed installation)

Bend Radius

Stationary Min.	91.5 mm (3.60 in)
Installation Min.	48.8 mm (1.92 in)

Standards and Compliance

Environmental Suitability	UV Resistance, Oil Resistance - EN 50290-2-22 (TM54)
Flammability / Reaction to Fire	FT 1 , VW-1, IEC 60332-1-2, DIN VDE 0482-332-1-2, DIN EN 60332-1-2
AWM Compliance	AWM 2464, AWM I/II A/B
ISO/IEC Compliance	IEC 60228
CENELEC Compliance	EN 50363-4-1, EN 50363-3
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
Other Standard Compliance(s)	VDE 0285, UL 1581, VDE 0295, DIN VDE 0207-363-4-1, BS 6360
