Product Number: HF2X0.75P

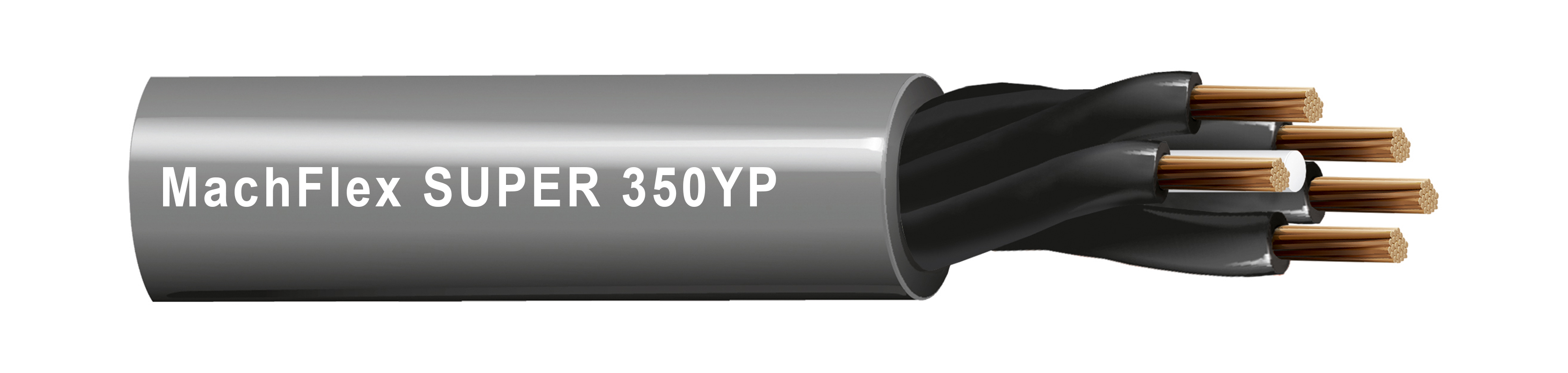

MachFlexTM High Flex Super 350YP Control Cable 2C 0.75mm2 Str BC, PVC Ins, PUR Jkt

MachFlexTM High Flex Super 350YP Control Cable 2 Conductor 0.75mm2 Stranded Bare Copper, PVC Insulation, PUR Jacket

Availability: EMEA | Asia Pacific
Status: Active
Orderable items: 9

Ships from and sold by A5 IT.

Part numbers

HF2X0.75P is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
HF2X0.75P 010100M	Black, RAL 9004	100 m	Order online
HF2X0.75P 010200M	Black, RAL 9004	200 m	Order online
HF2X0.75P 010300M	Black, RAL 9004	300 m	Order online
HF2X0.75P 006100M	Blue	100 m	Order online
HF2X0.75P 006200M	Blue	200 m	Order online
HF2X0.75P 006300M	Blue	300 m	Order online
HF2X0.75P G8U100M	Gray, RAL 7001	100 m	Order online
HF2X0.75P G8U200M	Gray, RAL 7001	200 m	Order online
HF2X0.75P G8U300M	Gray, RAL 7001	300 m	Order online

Specifications

Product Overview

Suitable Applications

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. PUR jacket ensure the cable with excellent abrasion resistance and flex cycles more than 5 million would be ideally applied to drag chain and the frequently moving fields.

Construction Details

Overall Cable Diameter (Nominal)	5.7 mm (0.22 in)

Conductor

Element	Conductor(s)
No. of Elements	2
Size	0.75 mm2
Stranding	Stranded
Stranding Class	Class 6
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Color Code	Black #1, Black #2

Outer Jacket

Material	PUR - Polyurethane

Electrical Characteristics

Voltage

Voltage Rating	300/500 V (Max. Operating Voltage), 4000 V (Testing Voltage)

Mechanical Characteristics

Bulk Cable Weight	40 kg/km (27 lbs/1000ft)

Temperature

Operating	-5°C to +70°C(Occasional movement)
Installation	-40°C to +80°C(Fixed installation)

Bend Radius

Installation Min.	22.8 mm (0.898 in)
Flexing Min.	42.75 mm

Standards and Compliance

Environmental Suitability	Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2, DIN VDE 0482-332-1-2, DIN EN 60332-1-2
ISO/IEC Compliance	IEC 60228
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2)
Other Standard Compliance(s)	VDE 0285, EN 50525-2-51, VDE 0285-525-2-51, VDE 0295, EN 50363-3, EN 50363-10-2, BS 6360
