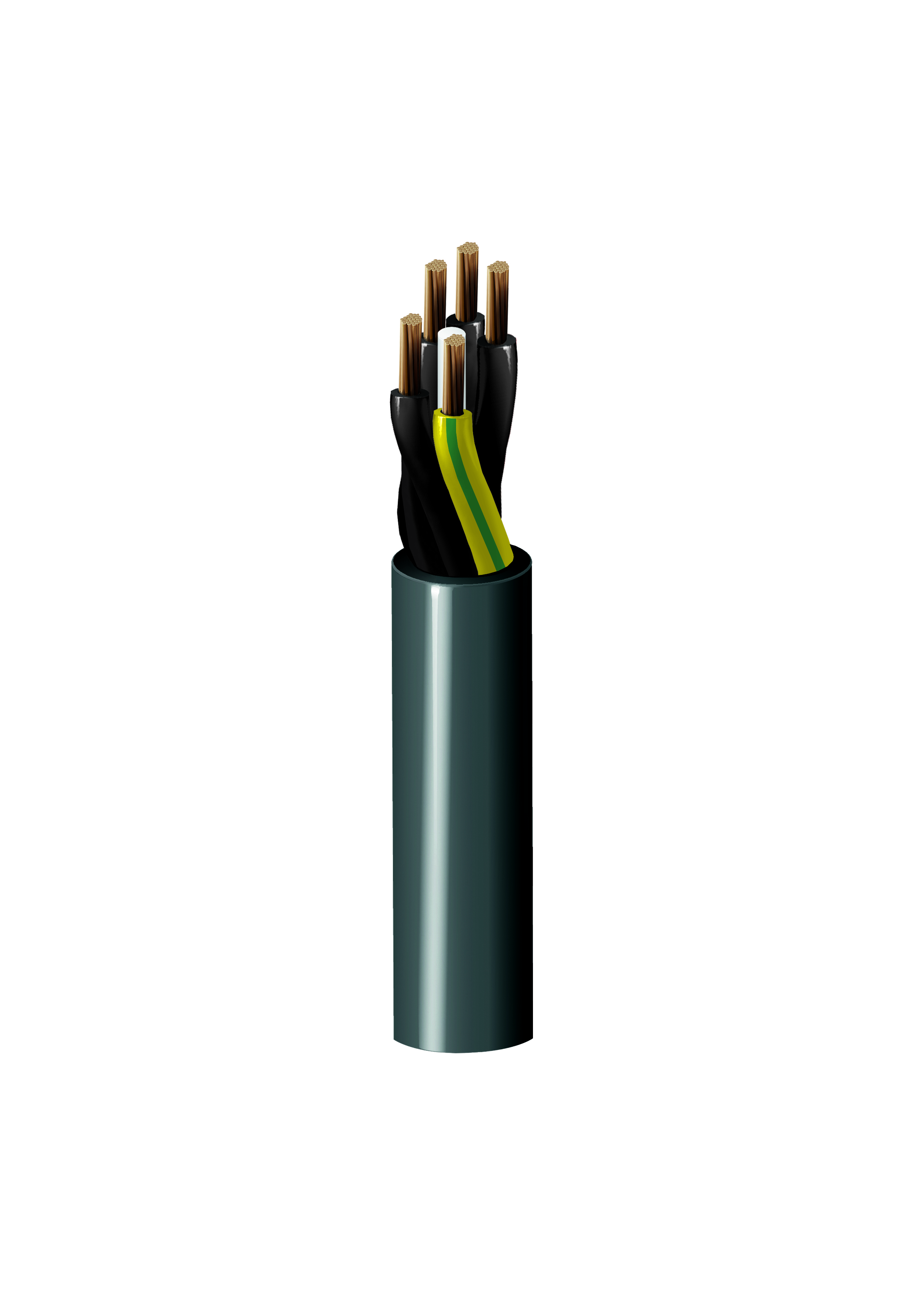

MachFlexTM 610YY Control & Power Cable, 3+1G C 4mm2 Str BC, PVC Ins, PVC Jkt
MachFlexTM 610YY Control & Power Cable, 3 Conductor + 1 Ground 4mm2 Stranded Bare Copper, PVC Insulation, PVC Jacket
- Availability
- EMEA | Asia Pacific
- Status
- Active
- Orderable items
- 9
Part numbers
H4G4 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| H4G4 010100M | Black | 100 m | Order online |
| H4G4 010200M | Black | 200 m | Order online |
| H4G4 010300M | Black | 300 m | Order online |
| H4G4 006100M | Blue | 100 m | Order online |
| H4G4 006200M | Blue | 200 m | Order online |
| H4G4 006300M | Blue | 300 m | Order online |
| H4G4 G8U100M | Gray, RAL 7001 | 100 m | Order online |
| H4G4 G8U200M | Gray, RAL 7001 | 200 m | Order online |
| H4G4 G8U300M | Gray, RAL 7001 | 300 m | Order online |
Specifications
Product Overview
| Suitable Applications | Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 13.7 mm (0.539 in) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Stranding Class | Material |
|---|---|---|---|---|---|
| Conductor(s) | 3 | 4 mm2 | Stranded | Class 5 | BC - Bare Copper |
| Ground | 1 | 4 mm2 | Stranded | Class 5 | BC - Bare Copper |
Insulation
| Element | Material | Color Code |
|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | Black #1, Black #2, Black #3 |
| Ground | PVC - Polyvinyl Chloride | Yellow/Green |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Electrical Characteristics
Voltage
| Voltage Rating | 600/1000 V (Max. Operating Voltage), 4000 V (Testing Voltage) |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 325 kg/km (218 lbs/1000ft) |
|---|
Temperature
| Operating | -5°C to +70°C(Occasional movement) |
|---|---|
| Installation | -40°C to +80°C(Fixed installation) |
Bend Radius
| Installation Min. | 54.8 mm (2.16 in) |
|---|---|
| Flexing Min. | 205.5 mm |
Standards and Compliance
| Environmental Suitability | Sunlight Resistance, UV Resistance, Oil Resistance - EN 50290-2-22 (TM54) |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, DIN VDE 0482‐332‐1‐2, DIN EN 60332‐1‐2 |
| ISO/IEC Compliance | IEC 60228 |
| CENELEC Compliance | EN 50290-2-22 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2) |
| Other Standard Compliance(s) | IEC 60227-5, EN 50525-2-51, DIN VDE 0207-363-4-1, VDE 0295, BS 6360 |
History
| Update and Revision | Revision Number: 0.74 Revision Date: 02-03-2026 |
|---|
