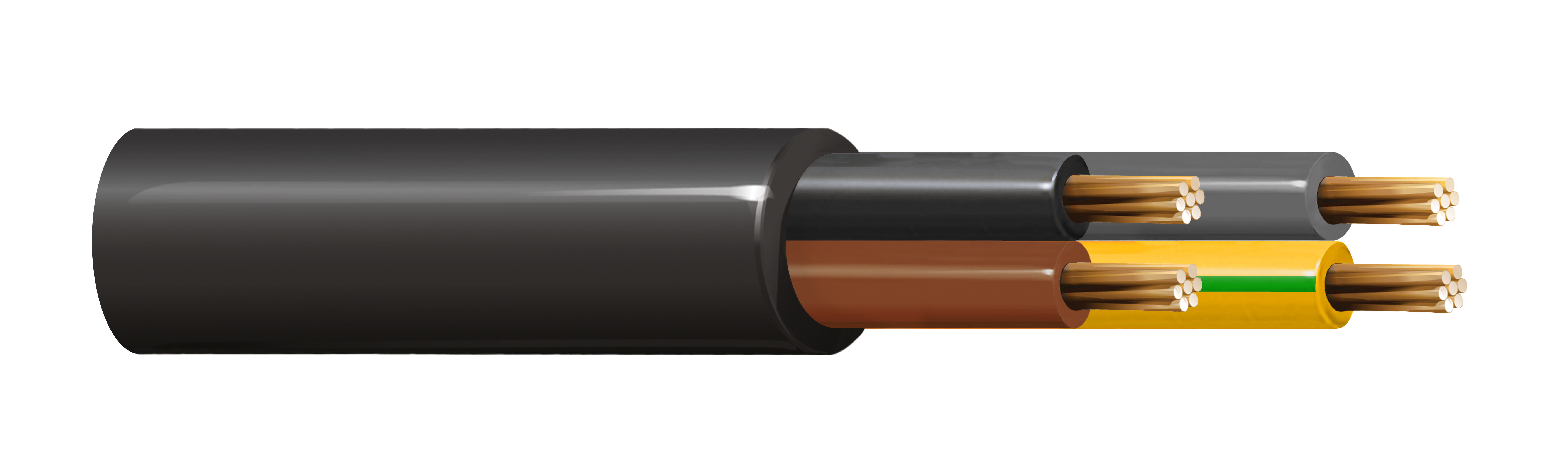

Product Number: C4G2.5L

MachFlexTM 375 HH, 3 C + 1 G 2.5 mm2 Str BC, LSZH Ins, LSZH Jkt

MachFlexTM 375HH LSZH Power and Control Cables, 3 Conductors + 1 Ground 2.5 mm2 Stranded Bare Copper, LSZH Insulation, LSZH Outer Jacket, UL AWM 21310

Availability: Global
Status: Active

Ships from and sold by A5 IT.

Specifications

Product Overview

Suitable Applications	Applicable for occasional flexing or fixed installation connecting precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more in limited smoke and no halogen required environment.

Construction Details

Overall Cable Diameter (Nominal)	9.2 mm (0.36 in)

Conductor

Element	No. of Elements	Size	Stranding	Stranding Class	Material
Conductor(s)	3	2.5 mm2	Stranded	Class 5	BC - Bare Copper
Ground	1	2.5 mm2	Stranded	Class 5	BC - Bare Copper

Insulation

Element	Material	Color Code
Conductor(s)	LSZH - Low Smoke Zero Halogen (Flame Retardant)	Brown, Black, Gray
Ground	LSZH - Low Smoke Zero Halogen (Flame Retardant)	Yellow/Green

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)

Electrical Characteristics

Electricals

Max. Conductor DCR	7.98 Ohm/km (2.43 Ohm/1000ft)

Voltage

UL Voltage Rating	600 V (Max. Operating Voltage)
Voltage Rating	450/750 V (EN Voltage Rating)

Mechanical Characteristics

Bulk Cable Weight	168 kg/km (113 lbs/1000ft)

Temperature

UL Temperature	80°C
Operating	-25°C to +70°C
Installation	-40°C to +80°C

Bend Radius

Installation Min.	36.8 mm (1.45 in)
Flexing Min.	138 mm (5.43 in)

Standards and Compliance

Environmental Suitability	Indoor/Outdoor
Flammability / Reaction to Fire	FT2, IEC 60332-1-2, IEC 60332-3-24, IEC 60332-3-25, DIN VDE 0482‐332‐1‐2
AWM Compliance	AWM 21310
ISO/IEC Compliance	IEC 60227-5
CENELEC Compliance	EN 50525-3-11
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)
