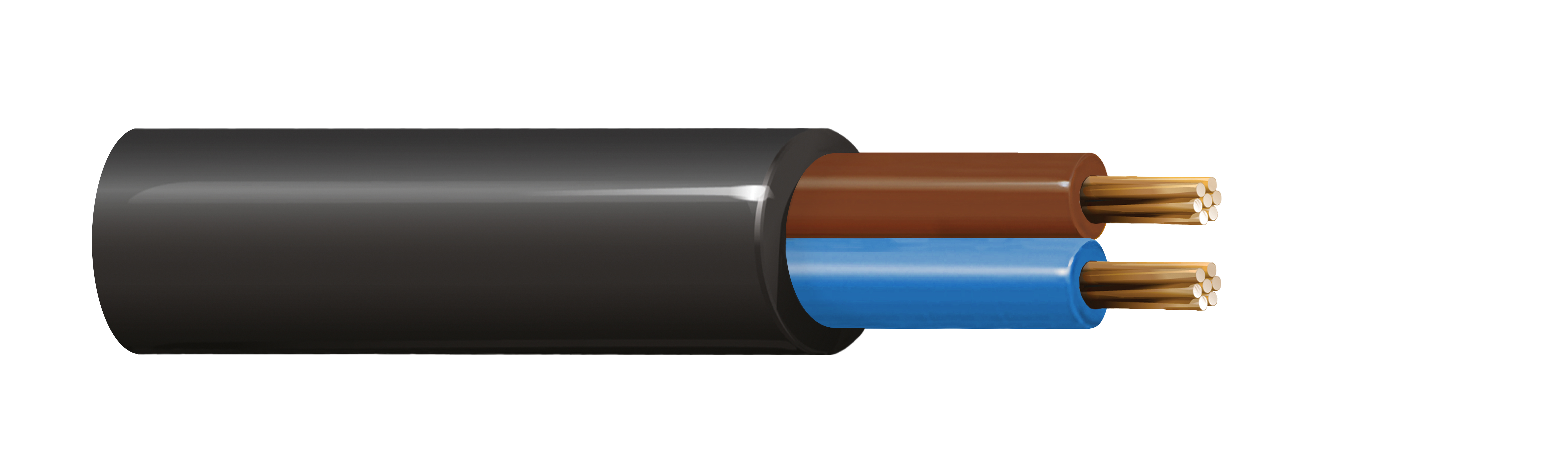

Product Number: C2X2.5L

MachFlexTM 375 HH, 2 C 2.5 mm2 Str BC, LSZH Ins, LSZH Jkt

Name: Belden C2X2.5L
Brand: Belden
SKU: C2X2.5L

MachFlexTM 375HH LSZH Power and Control Cables, 2 Conductors 2.5 mm2 Stranded Bare Copper, LSZH Insulation, LSZH Outer Jacket, UL AWM 21310

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Applicable for occasional flexing or fixed installation connecting precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more in limited smoke and no halogen required environment.

Overall Cable Diameter (Nominal)	8.0 mm (0.31 in)

Element	Conductor(s)
Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)
Color Code	Blue, Brown

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)

UL Voltage Rating	600 V (Max. Operating Voltage)
Voltage Rating	450/750 V (EN Voltage Rating)

Bulk Cable Weight	110 kg/km (74 lbs/1000ft)

Installation Min.	32 mm (1.3 in)
Flexing Min.	120 mm (4.7 in)

Environmental Suitability	Indoor/Outdoor
Flammability / Reaction to Fire	FT2, IEC 60332-1-2, IEC 60332-3-24, IEC 60332-3-25, DIN VDE 0482‐332‐1‐2
AWM Compliance	AWM 21310
ISO/IEC Compliance	IEC 60227-5
European Halogen Free Standards	IEC 60754-1 - Halogen Amount = 0.5%, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 μS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3, IEC 61034-2 - Smoke Density Min. Transmittance = 60%
European Directive Compliance	EU Directive 2011/65/EU (RoHS 2)
APAC Compliance	China RoHS II (GB/T 26572-2011)
