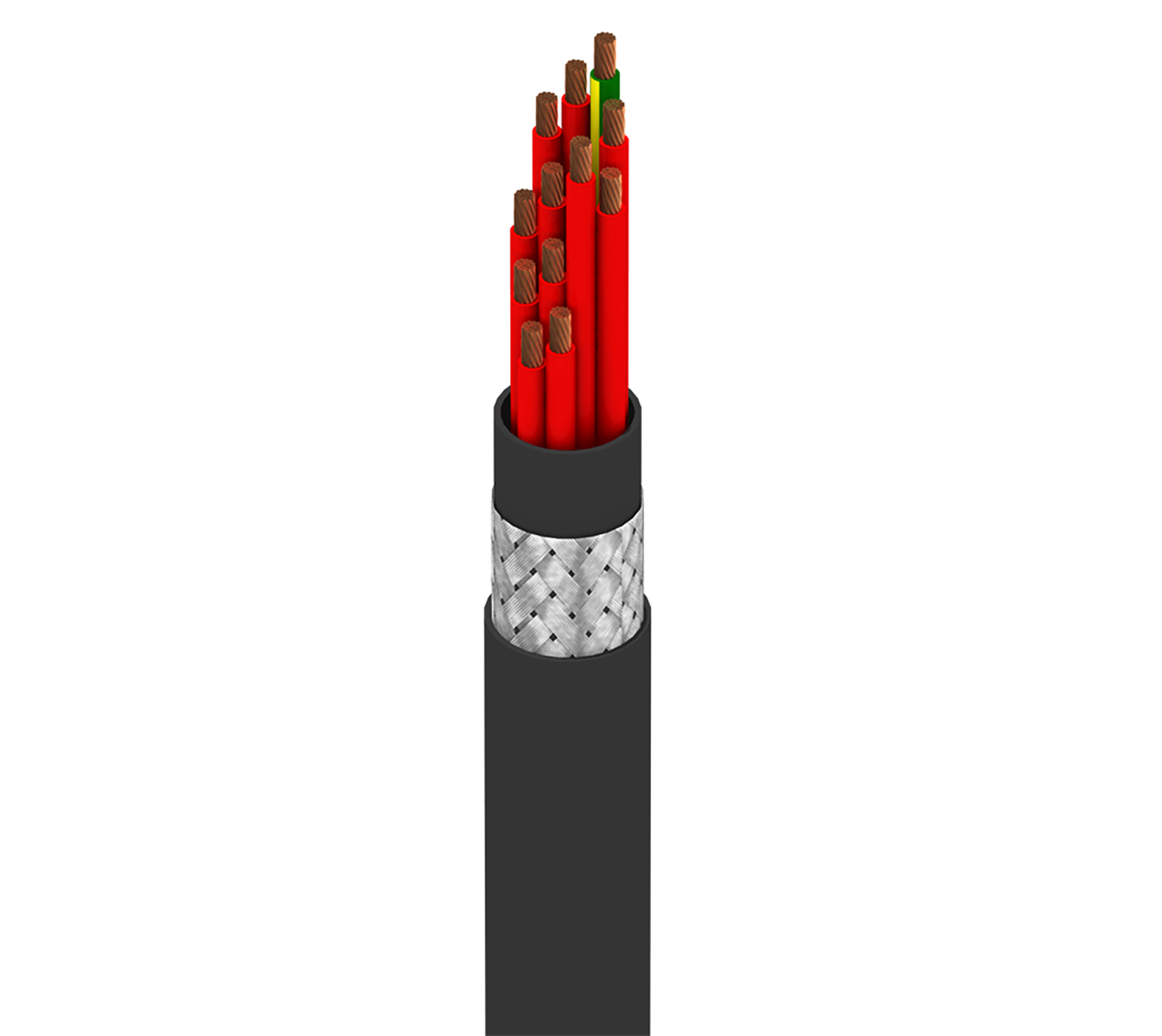

Product Number: 77812WS

MachFlexTM, 12+G C #18 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587

MachFlexTM for High Flex, 12+G Conductor 18AWG (105(7x15)x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

77812WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	UPC	Order
77812WS 010100	Black	Reel	612825412434	Order online

Specifications

Physical Characteristics (Overall)

Conductor Count	12

Conductor

Element	AWG	Stranding	Material	No. of Conductors
Conductor(s)	18	105x38	BC - Bare Copper	11
Ground	18	105x30	BC - Bare Copper	1

Insulation

Element	Material	Nominal Diameter	Nominal Wall Thickness
Conductor(s)	PVC - Polyvinyl Chloride	0.096 in	0.022 in
Ground	PVC - Polyvinyl Chloride

Color Chart

Color	Red and Numbered

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.480 in
Nominal Wall Thickness	0.030 in

Outer Shield

Type	Braid
Material	Tinned Copper (TC)
Coverage [%]	85%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.634 in
Nominal Wall Thickness	0.060 in

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	6.4 Ohm/1000ft
Nominal Outer Shield DCR	1.6 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Conductor	45 pF/ft

Inductance

Nominal Inductance	.19 μH/ft

Voltage

UL Voltage Rating	600 V

Temperature Range

UL Temperature Rating	90°C
Operating Temperature Range	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Mechanical Characteristics

Oil Resistance	Yes
Flex Cycle Rating	14 Million Cycles
Bulk Cable Weight	497 lbs/1000ft
Maximum Recommended Pulling Tension	174 lbs
Minimum Continuous Flexing Bend Radius	5.1 in
Minimum Minor Axis Bend Radius	5.1 in

Standards

UL AWM Style Compliance	AWM 2587, AWM 10012
CSA AWM Compliance	AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
