Product Number: 77605W

MachFlexTM, 5+G C #16 Str BC, PVC Ins, PVC Jkt, AWM 2587

Name: Belden 77605W
Brand: Belden
SKU: 77605W

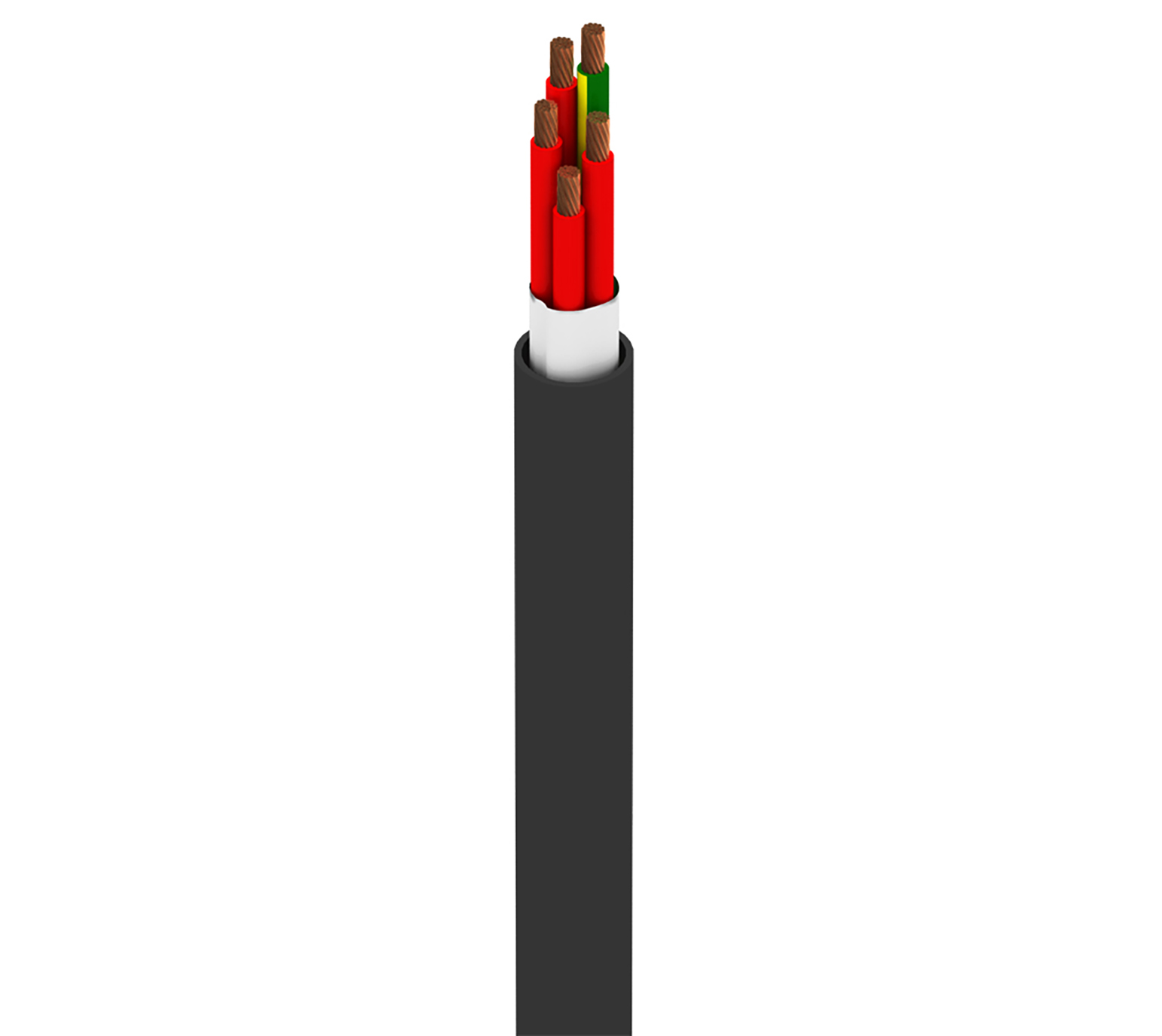

MachFlexTM for High Flex, 5+G Conductor 16AWG (168(7x24)x38) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587

Ships from and sold by A5 IT.

Part numbers

77605W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
77605W 010100	Black	Reel	612825412212	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Overall Cable Diameter (Nominal)	0.396 in (10.1 mm)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	4	16	168x38	BC - Bare Copper
Ground	1	16	168x38	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.111 in (2.82 mm)	Red and Numbered
Ground	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.111 in (2.82 mm)	Yellow/Green/Green

Shield Type	No Shield
Material	No Shield

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Conductor(s)	4.1 Ohm/1000ft	34 pF/ft (110 pF/m)	11.2 Amps per Conductor at 30oC
Ground Wire	4.18 Ohm/1000ft (13.7 Ohm/km)

UL Voltage Rating	600 V (AWM 2587)
Voltage Rating	600 V (CSA AWM I/II A/B)

Max. Pull Tension	106 lbs (48.1 kg)
Bulk Cable Weight	260 lbs/1000ft

UL Temperature	90°C
Operating	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Flexing Min.	3.2 in (81 mm)

Environmental Suitability	Oil Resistance
AWM Compliance	AWM 2587, AWM 10012, AWM I/II A/B
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
