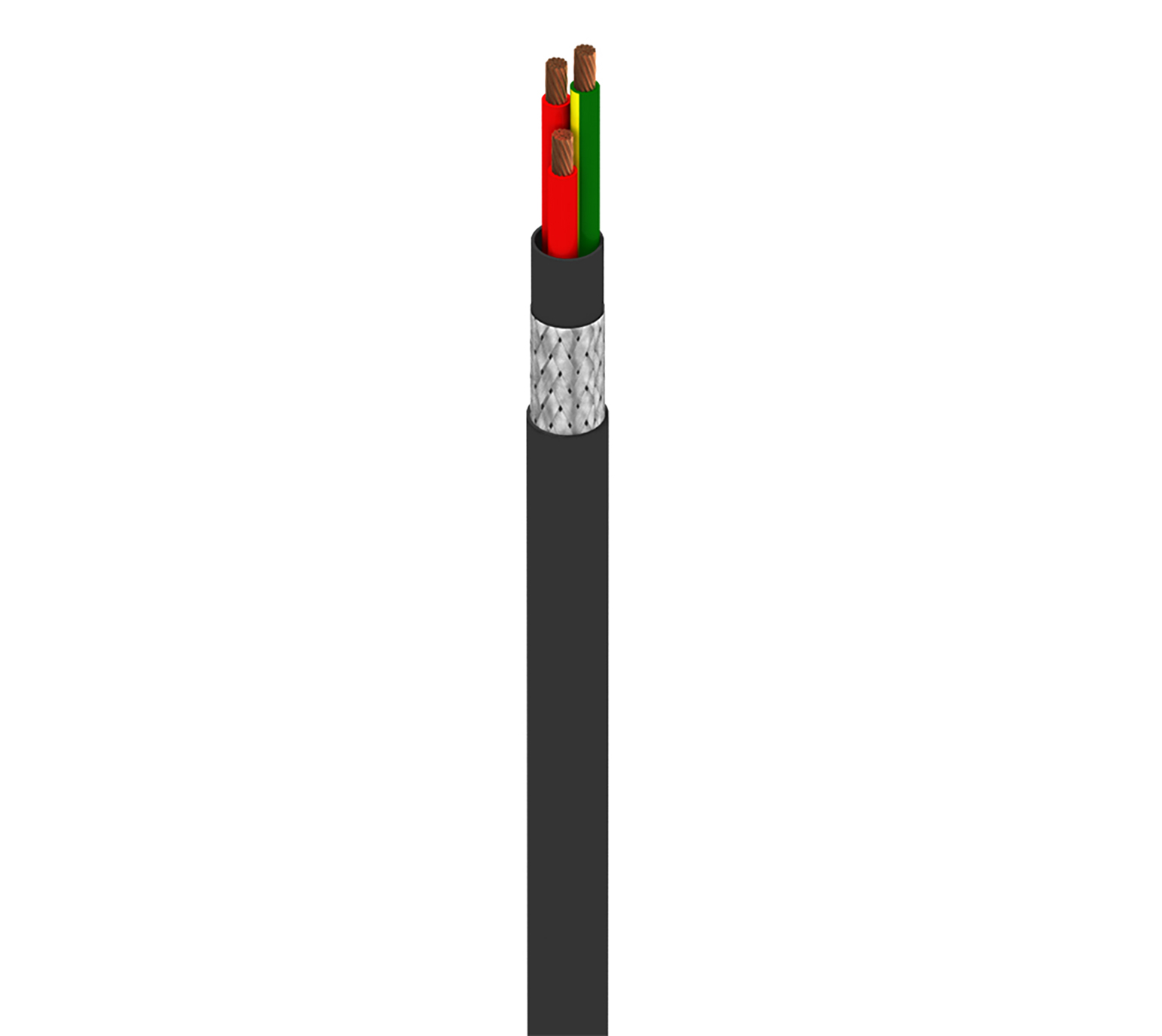

Product Number: 77003WS

MachFlexTM, 3+1G C #20 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587

MachFlexTM for High Flex, 3+1G Conductor 20AWG (63(7x9)x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

77003WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	UPC	Order
77003WS 010100	Black	Reel	612825411994	Order online
77003WS 0101000	Black	Reel	612825412007	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Physical Characteristics (Overall)

Conductor Count	3

Conductor

Element	AWG	Stranding	Material	No. of Conductors
Conductor(s)	20	63x38	BC - Bare Copper	2
Ground	20	63x38	BC - Bare Copper	1

Insulation

Element	Material	Nominal Diameter	Nominal Wall Thickness
Conductor(s)	PVC - Polyvinyl Chloride	0.084 in	0.022 in
Ground	PVC - Polyvinyl Chloride

Color Chart

Color	Red and Numbered

Inner Jacket

Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.252 in
Nominal Wall Thickness	0.025 in

Outer Shield

Type	Braid
Material	Tinned Copper (TC)
Coverage [%]	85%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.350 in
Nominal Wall Thickness	0.035 in

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	10.7 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Conductor	40 pF/ft

Inductance

Nominal Inductance	.20 μH/ft

Voltage

UL Voltage Rating	600 V

Temperature Range

UL Temperature Rating	90°C
Operating Temperature Range	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Mechanical Characteristics

Oil Resistance	Yes
Flex Cycle Rating	14 Million Cycles
Bulk Cable Weight	142 lbs/1000ft
Maximum Recommended Pulling Tension	30 lbs
Minimum Continuous Flexing Bend Radius	2.8 in
Minimum Minor Axis Bend Radius	2.8 in

Standards

UL AWM Style Compliance	AWM 2587, AWM 10012
CSA AWM Compliance	AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
