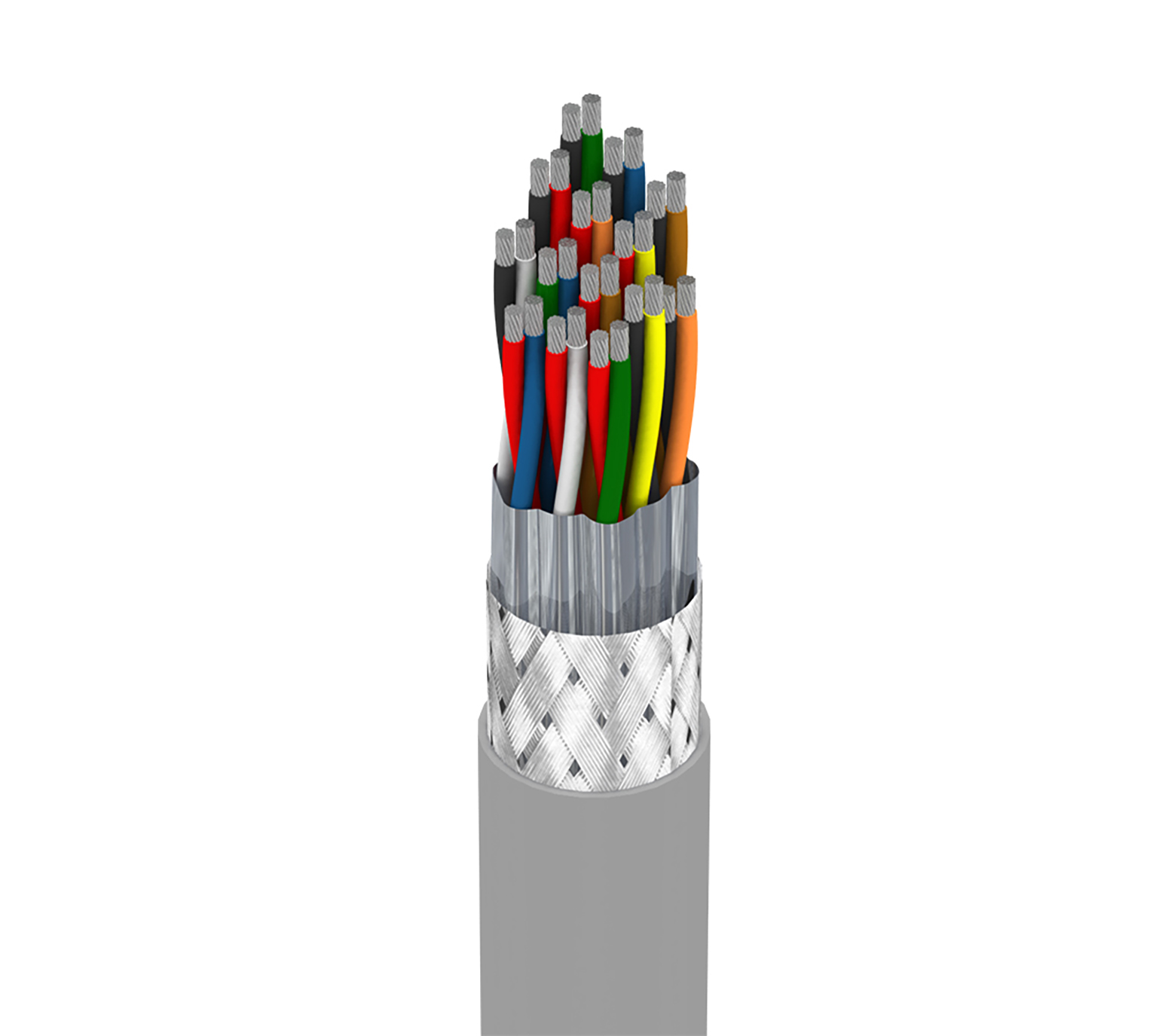

Product Number: 76514TS

MachFlexTM, 14 Pr #26 Str TC, SRPVC Ins, OS+TC Brd, PVC Jkt, CMG

MachFlexTM for High Flex, 14 Pair 26AWG (7x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

76514TS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
76514TS 008100	Gray	Reel	612825411499	Order online
76514TS 0081000	Gray	Reel	612825411505	Order online
76514TS 008500	Gray	Reel	612825411512	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.426 in

Conductor

Element	Pair(s)
No. of Elements	14
Size	26 AWG
Stranding	7x34
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.039 in (0.99 mm)
Color Code	Black & Red, Black & white, Black & Green, Black & Blue, Black & Brown, Black & Yellow, Black & Orange, Red & Green, Red & White, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & Blue

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	26 AWG (7x34) TC
Braid	Tinned Copper (TC)	85%

Outer Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.053 in (1.3 mm)
Nom. Diameter	0.426 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	42 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	21.4 pF/ft (70.2 pF/m)
Nom. Characteristic Impedence	89 Ohm

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	72 lbs (33 kg)
Bulk Cable Weight	102 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-10°C To 105°C (Static), 5°C To 105°C (Flexing)

Bend Radius

Stationary Min.	4.26 in (108 mm)
Installation Min.	6.4 in
Flexing Min.	6.4 in (160 mm)

Standards and Compliance

Environmental Suitability	Sunlight Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, FT4
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2661, AWM 10002, AWM I/II A/B
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
