Product Number: 76405TS

MachFlexTM, 5 Pr #28 Str TC, SRPVC Ins, OS+TC Brd, PVC Jkt, CMG

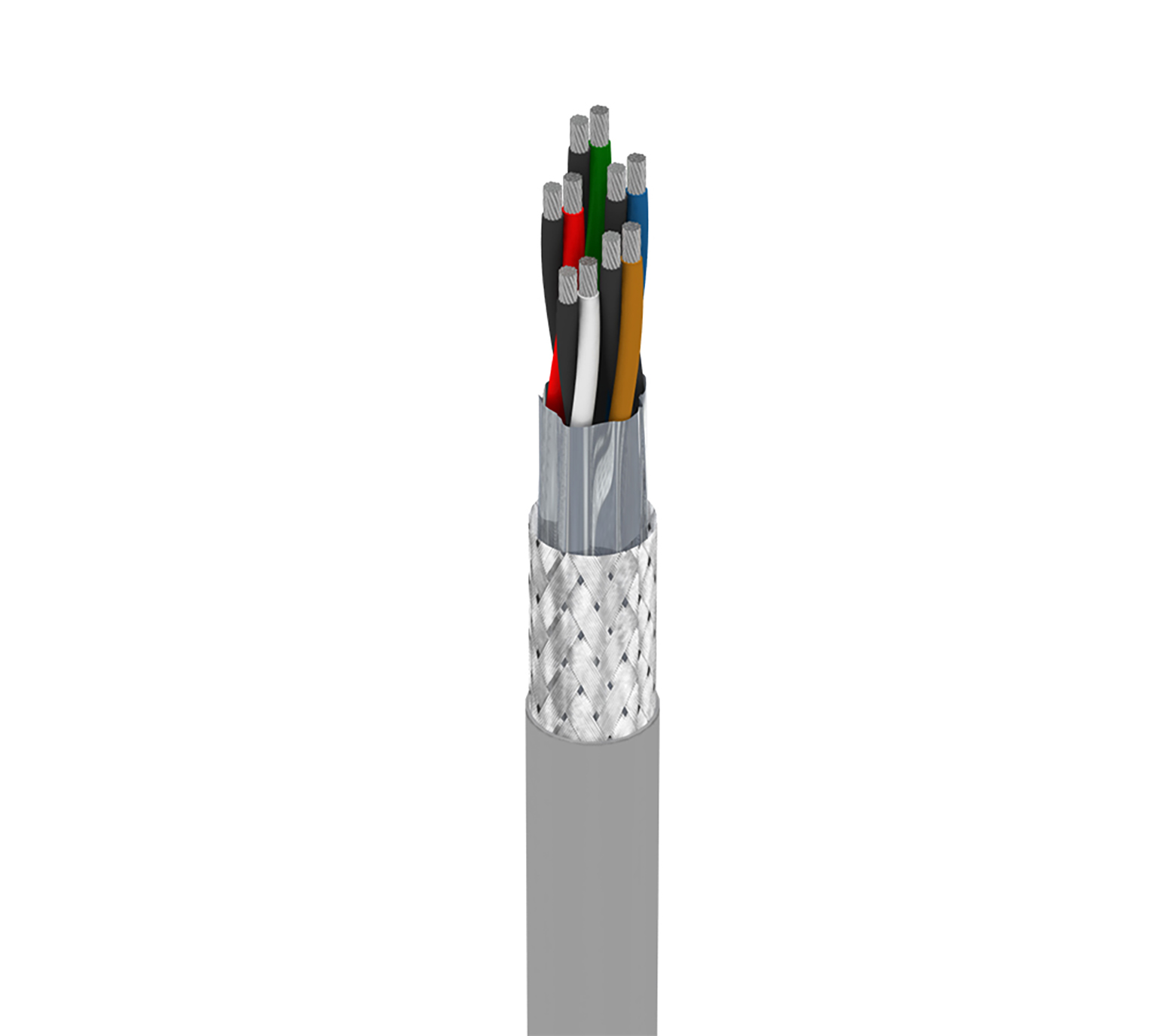

MachFlexTM for High Flex, 5 Pair 28AWG (7x36) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

76405TS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	UPC	Order
76405TS 008100	Gray	Reel	612825411246	Order online
76405TS 0081000	Gray	Reel	612825411253	Order online
76405TS 008500	Gray	Reel	612825411260	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Physical Characteristics (Overall)

Conductor Count	10
Total Number of Pairs	5

Conductor

Element	Conductor(s)
AWG	28
Stranding	7x36
Material	TC - Tinned Copper
No. of Pairs	5

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.035 in
Nominal Wall Thickness	0.010 in

Outer Shield

Type	Material	Coverage [%]	Drainwire Material	Drainwire AWG
Tape	Bi-Laminate (Alum+Poly)	100%	TC - Tinned Copper	26
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.274 in
Nominal Wall Thickness	0.040 in

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	67 Ohm/1000ft
Nominal Outer Shield DCR	3.2 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Conductor	21.0 pF/ft

Inductance

Nominal Inductance	.22 μH/ft

Impedance

Nominal Characteristic Impedance	90 Ohm

Voltage

UL Voltage Rating	300 V

Temperature Range

UL Temperature Rating	105°C
Operating Temperature Range	-10°C To 105°C (Static), 5°C To 105°C (Flexing)

Mechanical Characteristics

Flex Cycle Rating	6 Million Cycles
Bulk Cable Weight	43 lbs/1000ft
Maximum Recommended Pulling Tension	21.2 lbs
Minimum Continuous Flexing Bend Radius	4.1 in
Minimum Minor Axis Bend Radius	2.7 in

Standards

NEC/(UL) Compliance	CM
CEC/C(UL) Compliance	CMG
UL AWM Style Compliance	AWM 2661, AWM 10002
CSA AWM Compliance	AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
