Product Number: 76402TS

MachFlexTM, 2 Pr #28 Str TC, SRPVC Ins, OS+TC Brd, PVC Jkt, CMG

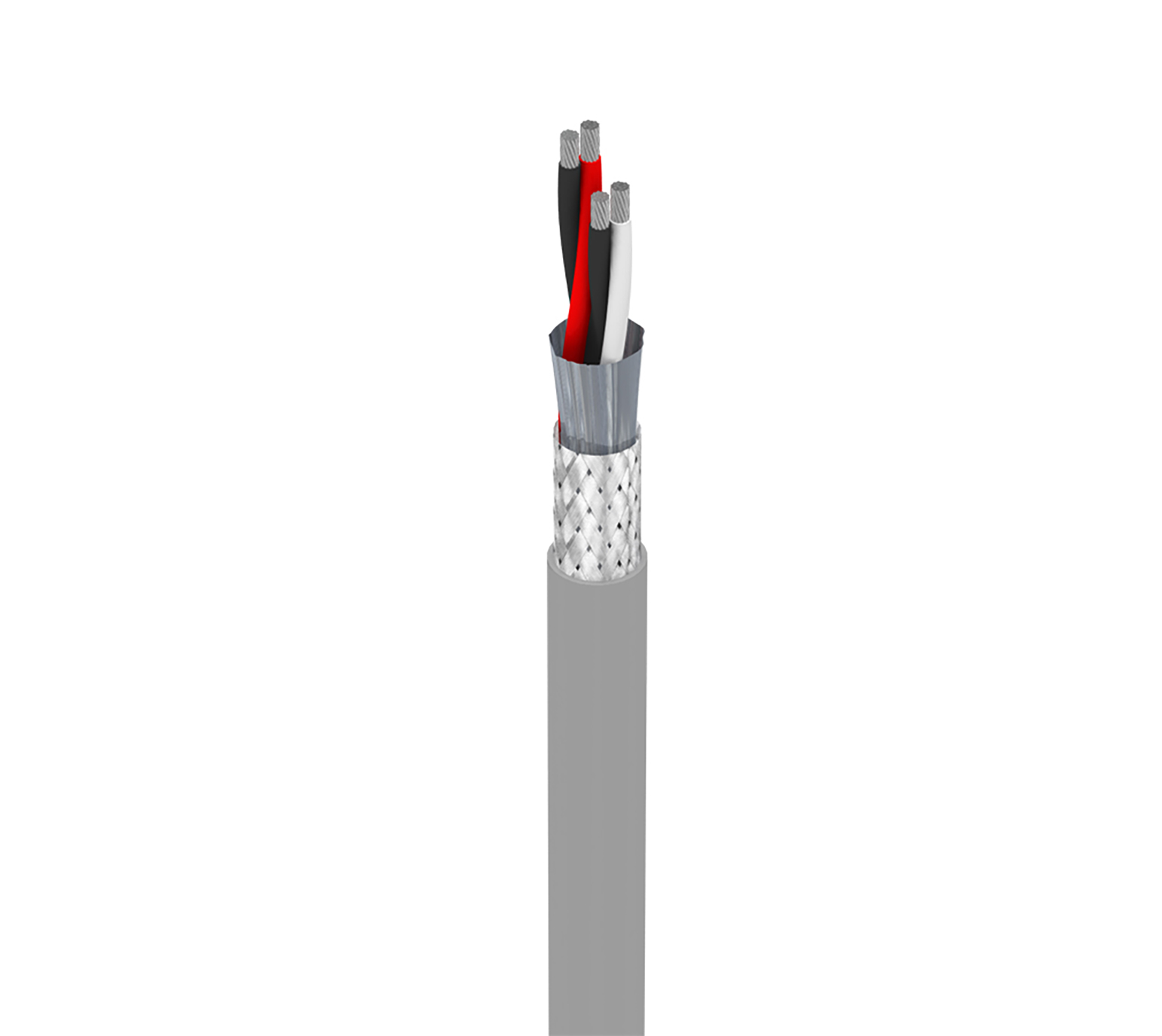

MachFlexTM for High Flex, 2 Pair 28AWG (7x36) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CMG

Availability: Americas
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

76402TS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
76402TS 008100	Gray	Reel	612825411178	Order online
76402TS 0081000	Gray	Reel	612825411185	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.231 in

Conductor

Element	Pair(s)
No. of Elements	2
Size	28 AWG
Stranding	7x36
Material	TC - Tinned Copper

Insulation

Element	Pair(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.035 in (0.89 mm)
Color Code	Black & Red, Black & white

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	26 AWG (7x34) TC
Braid	Tinned Copper (TC)	85%

Outer Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.040 in (1.0 mm)
Nom. Diameter	0.231 in

Electrical Characteristics

Nom Outer Shield DCR	4.4 Ohm/1000ft (14 Ohm/km)

Electricals

Nom. Conductor DCR	67 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	21.8 pF/ft (71.5 pF/m)
Nom. Characteristic Impedence	82 Ohm
Nom. Inductance	.22 μH/ft (0.72 μH/m)

Voltage

UL Voltage Rating	300 V

Mechanical Characteristics

Max. Pull Tension	11.6 lbs (5.26 kg)
Bulk Cable Weight	33 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-10°C To 105°C (Static), 5°C To 105°C (Flexing)

Bend Radius

Stationary Min.	2.31 in (58.7 mm)
Installation Min.	3.5 in
Flexing Min.	3.5 in

Standards and Compliance

Environmental Suitability	Sunlight Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, FT4
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2661, AWM 10002, AWM I/II A/B
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
