Product Number: 76305WS

MachFlexTM, 5 C #22 Str TC, SRPVC Ins, OS+TC Srv, PVC Jkt, CMG

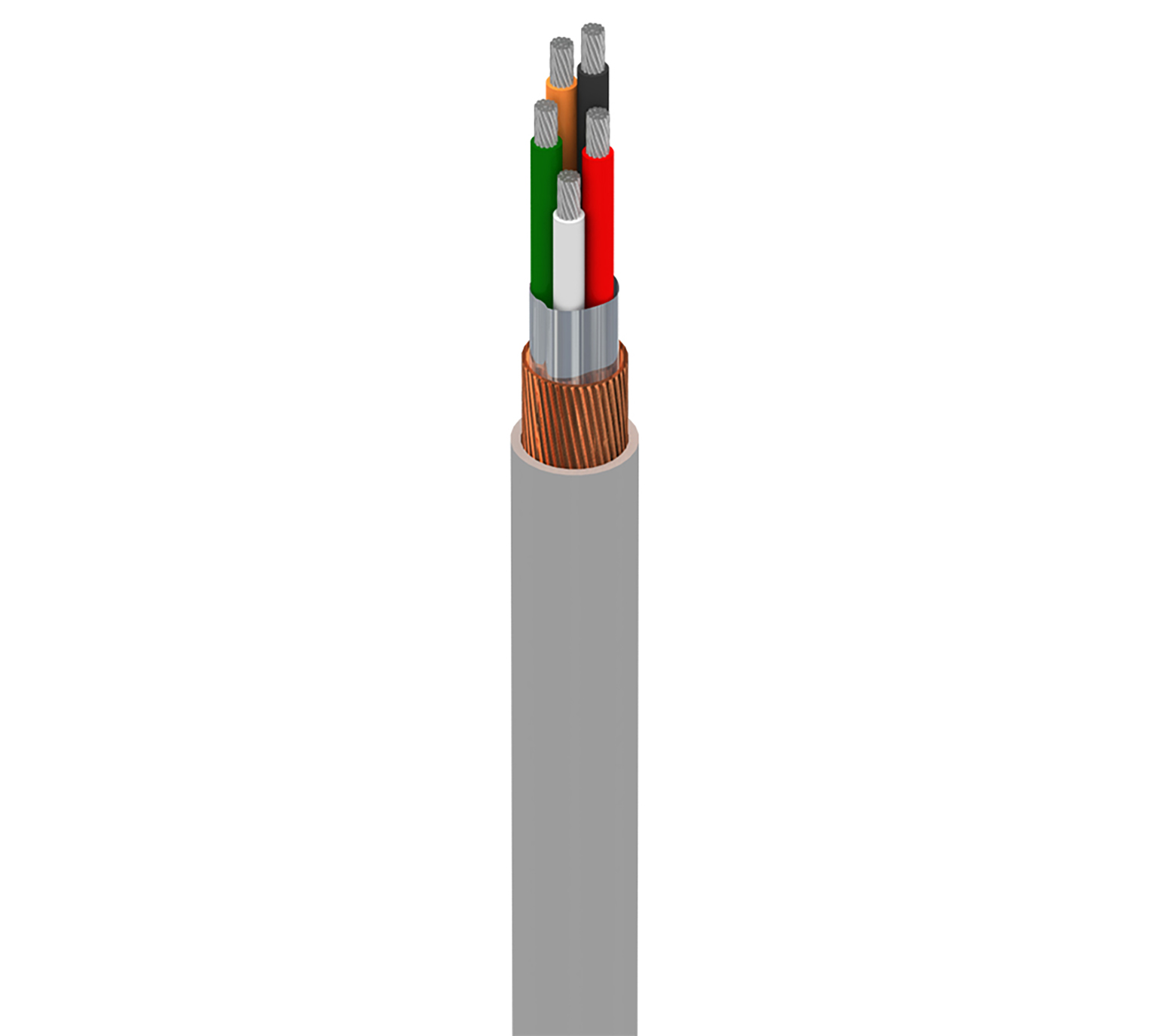

MachFlexTM for High Flex, 5 Conductor 22AWG (19x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Serve(90%) Shield, PVC Outer Jacket, CMG

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

76305WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
76305WS 008100	Gray	Reel	612825411031	Order online
76305WS 0081000	Gray	Reel	612825411048	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.247 in (6.27 mm)

Conductor

Element	Conductor(s)
No. of Elements	5
Size	22
Stranding	19x34
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.052 in (1.3 mm)
Color Code	Black, Red, White, Green, Orange

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	26 AWG (7x34) TC
Spiral Serve / Screen	Tinned Copper (TC)	90%

Outer Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.040 in (1.0 mm)
Nom. Diameter	0.247 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	15.4 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	38 pF/ft (120 pF/m)
Max. Current	4 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (AWM 2661)
Voltage Rating	300 V (CSA AWM I/II A/B)

Mechanical Characteristics

Max. Pull Tension	35 lbs (16 kg)
Bulk Cable Weight	42 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-10°C To 105°C (Static), 5°C To 105°C (Flexing)

Bend Radius

Flexing Min.	2.2 in (56 mm)

Standards and Compliance

Environmental Suitability	Indoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1685 UL loading, FT4
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2661, AWM 10002, AWM I/II A/B
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
