Product Number: 76207WS

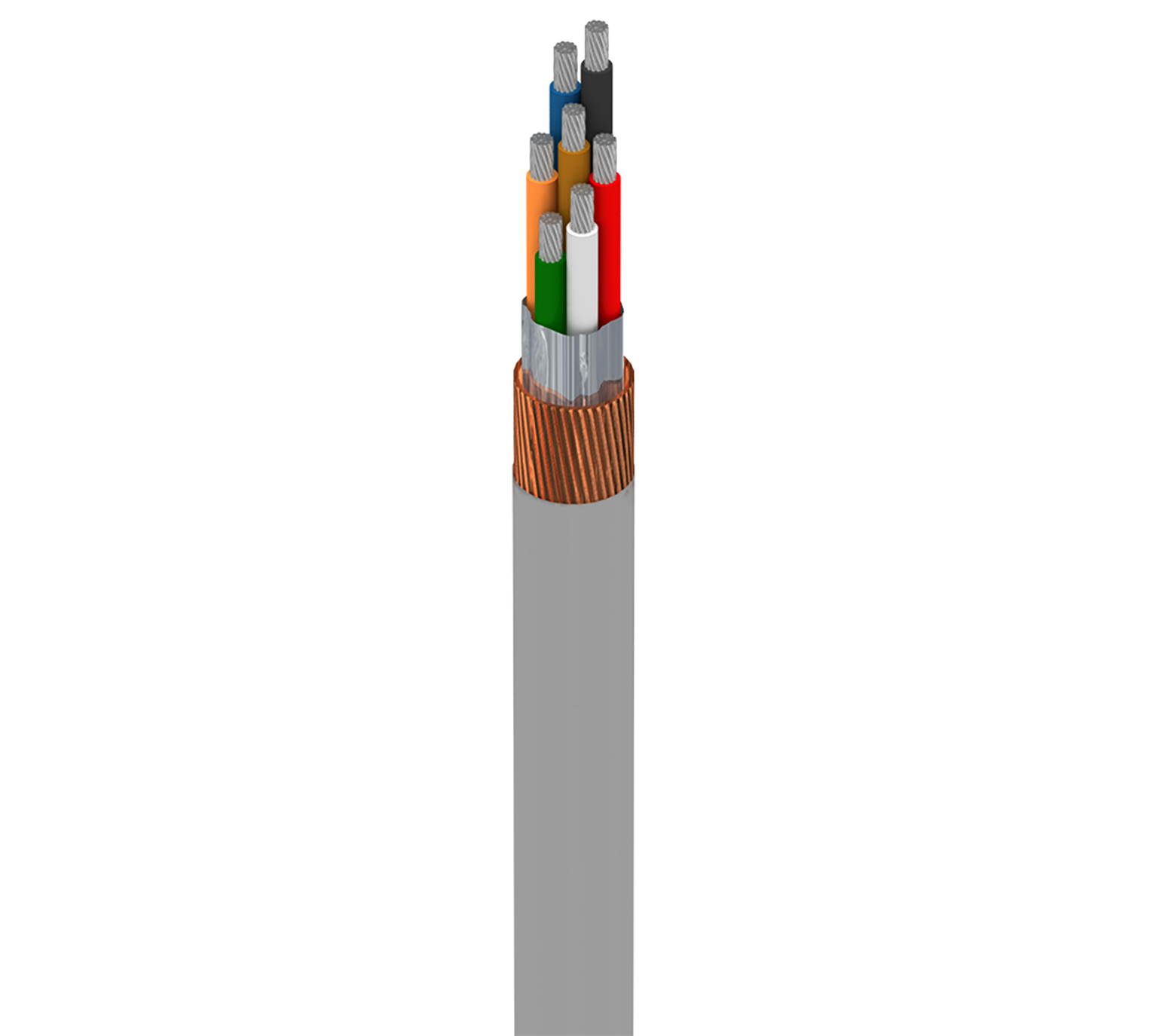

MachFlexTM, 7 C #24 Str TC, SRPVC Ins, OS+TC Srv, PVC Jkt, CMG

MachFlexTM for High Flex, 7 Conductor 24AWG (10x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Serve(90%) Shield, PVC Outer Jacket, CMG

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

76207WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	UPC	Order
76207WS 008100	Gray	Reel	612825410850	Order online
76207WS 0081000	Gray	Reel	612825410867	Order online
76207WS 008500	Gray	Reel	612825410874	Order online

Specifications

Physical Characteristics (Overall)

Conductor Count	7

Conductor

Element	Conductor(s)
AWG	24
Stranding	10x34
Material	TC - Tinned Copper
No. of Conductors	7

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nominal Wall Thickness	0.010 in

Outer Shield

Type	Material	Coverage [%]	Drainwire Material	Drainwire AWG
Tape	Bi-Laminate (Alum+Poly)	100%	TC - Tinned Copper	26
Spiral Serve / Screen	Tinned Copper (TC)	90%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Nominal Diameter	0.253 in
Nominal Wall Thickness	0.040 in

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	29 Ohm/1000ft
Nominal Outer Shield DCR	4.7 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Conductor	32 pF/ft

Inductance

Nominal Inductance	.19 μH/ft

Voltage

UL Voltage Rating	300 V

Temperature Range

UL Temperature Rating	105°C
Operating Temperature Range	-10°C To 105°C (Static), 5°C To 105°C (Flexing)

Mechanical Characteristics

Flex Cycle Rating	6 Million Cycles
Bulk Cable Weight	40 lbs/1000ft
Maximum Recommended Pulling Tension	27 lbs
Minimum Continuous Flexing Bend Radius	2.0 in
Minimum Minor Axis Bend Radius	2.0 in

Standards

NEC/(UL) Compliance	CM
CEC/C(UL) Compliance	CMG
UL AWM Style Compliance	AWM 2661, AWM 10002
CSA AWM Compliance	AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
