Product Number: 76104WS

MachFlexTM, 4 C #26 Str TC, SRPVC Ins, OS+TC Srv, PVC Jkt, CMG

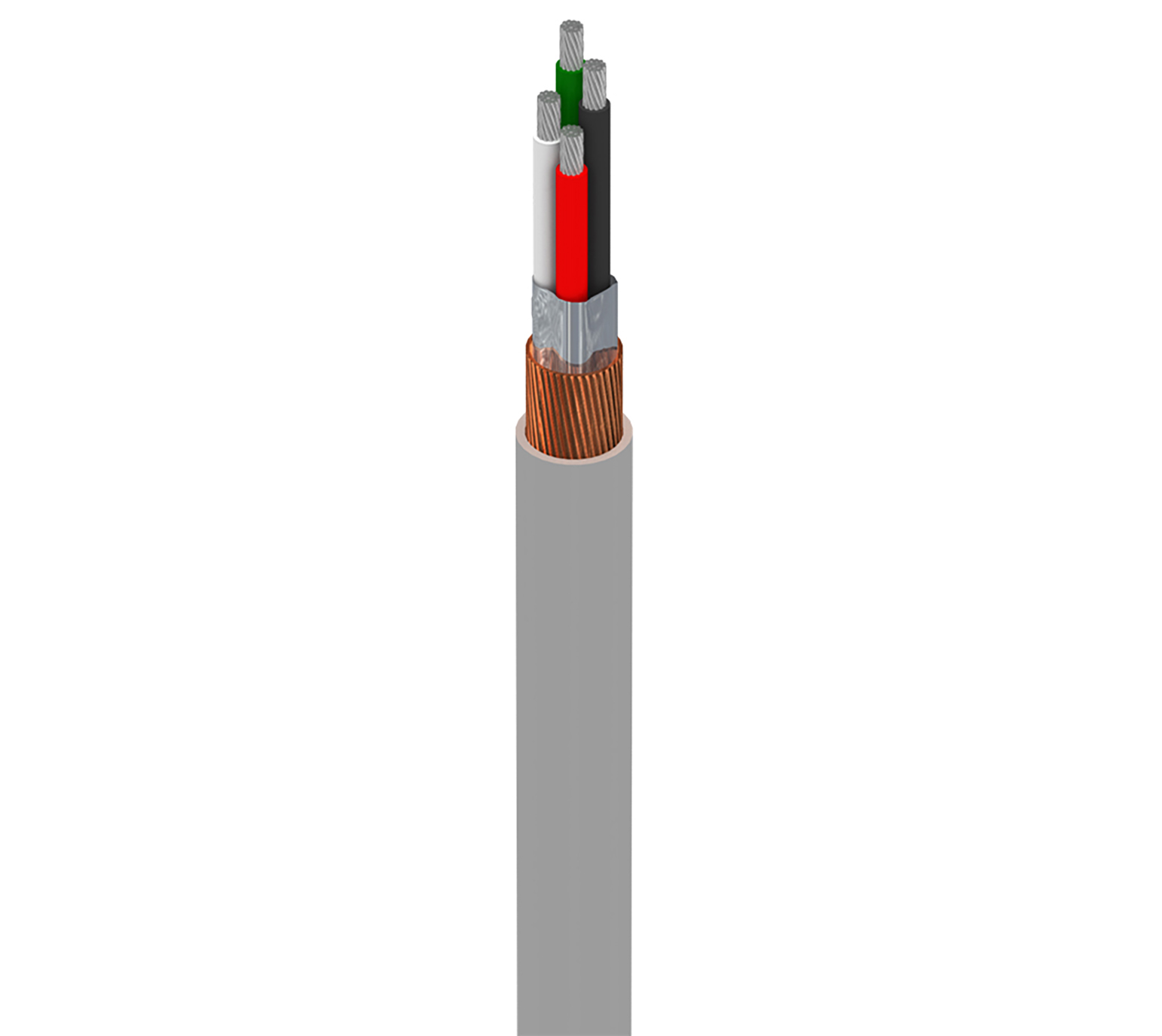

MachFlexTM for High Flex, 4 Conductor 26AWG (7x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Serve(90%) Shield, PVC Outer Jacket, CMG

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

76104WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
76104WS 008100	Gray	Reel	612825410591	Order online
76104WS 0081000	Gray	Reel	612825410607	Order online
76104WS 008500	Gray	Reel	612825410614	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.199 in (5.05 mm)

Conductor

Element	Conductor(s)
No. of Elements	4
Size	26
Stranding	7x34
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.039 in (0.99 mm)
Color Code	Black, Red, White, Green

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	26 AWG (7x34) TC
Spiral Serve / Screen	Tinned Copper (TC)	90%

Outer Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.040 in (1.0 mm)
Nom. Diameter	0.199 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	42 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	28 pF/ft (92 pF/m)
Max. Current	2.2 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (AWM 2661)
Voltage Rating	300 V (CSA AWM I/II A/B)

Mechanical Characteristics

Max. Pull Tension	13.2 lbs (5.99 kg)
Bulk Cable Weight	24 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-10°C To 105°C (Static), 5°C To 105°C (Flexing)

Bend Radius

Flexing Min.	1.6 in (41 mm)

Standards and Compliance

Environmental Suitability	Indoor, Sunlight Resistance
Flammability / Reaction to Fire	UL 1685 UL loading, FT4
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2661, AWM 10002, AWM I/II A/B
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
