Product Number: 76102WS

MachFlexTM, 2 C #26 Str TC, SRPVC Ins, OS+TC Srv, PVC Jkt, CMG

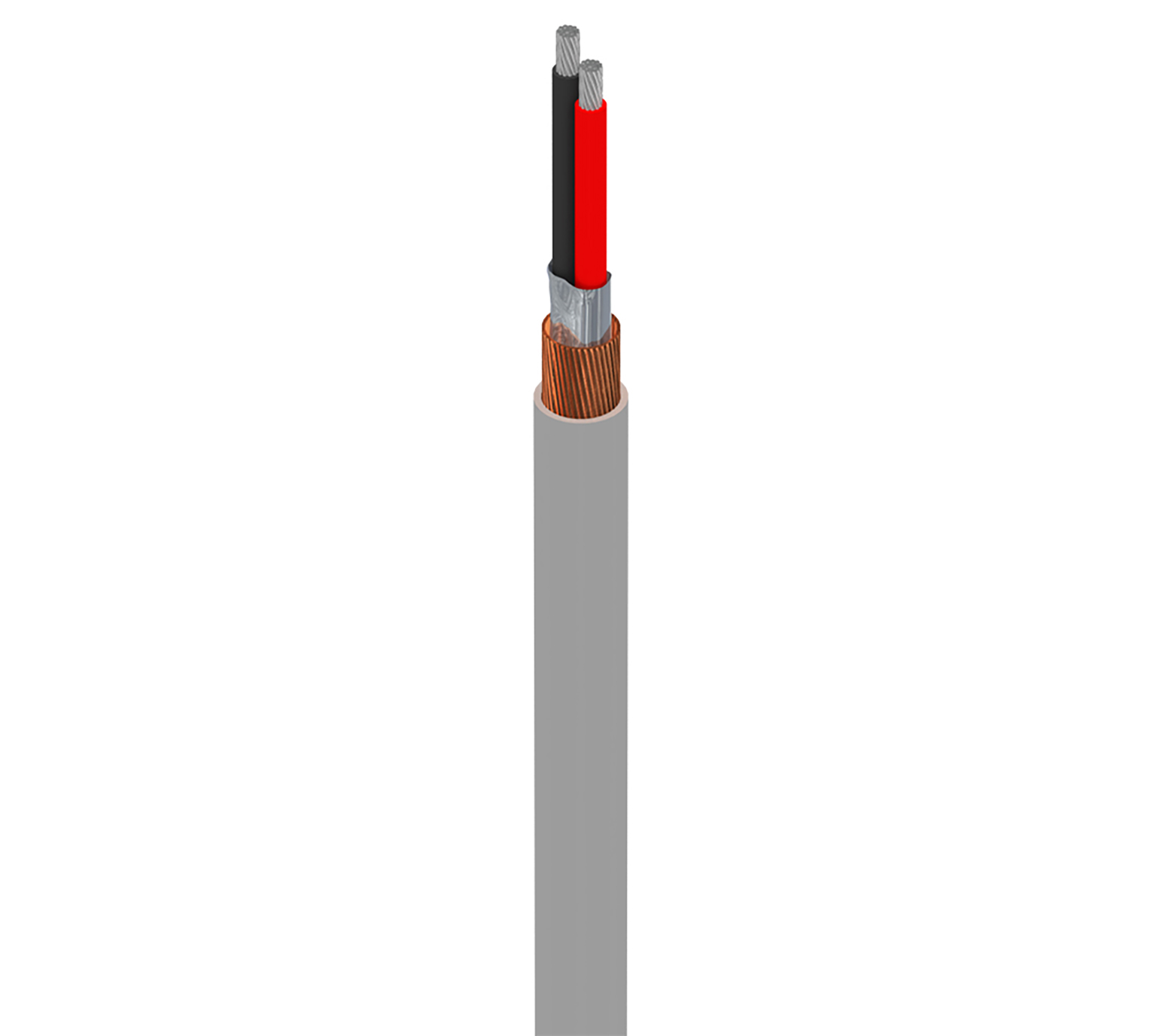

MachFlexTM for High Flex, 2 Conductor 26AWG (7x34) Tinned Copper, SRPVC Insulation, Overall Beldfoil®+Tinned Copper Serve(90%) Shield, PVC Outer Jacket, CMG

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

76102WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
76102WS 008100	Gray	Reel	612825410539	Order online
76102WS 0081000	Gray	Reel	612825410546	Order online
76102WS 008500	Gray	Reel	612825410553	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.182 in (4.62 mm)

Conductor

Element	Conductor(s)
No. of Elements	2
Size	26
Stranding	7x34
Material	TC - Tinned Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.010 in (0.25 mm)
Nom. Insulation Diameter	0.039 in (0.99 mm)
Color Code	Black, Red

Outer Shield

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	26 AWG (7x34) TC
Spiral Serve / Screen	Tinned Copper (TC)	90%

Outer Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.040 in (1.0 mm)
Nom. Diameter	0.182 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	41 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	31 pF/ft (100 pF/m)
Nom. Characteristic Impedence	62 Ohm
Max. Current	2.8 Amps per Conductor at 25oC

Voltage

UL Voltage Rating	300 V (AWM 2661)
Voltage Rating	300 V (CSA AWM I/II A/B)

Mechanical Characteristics

Max. Pull Tension	8.5 lbs (3.9 kg)
Bulk Cable Weight	21 lbs/1000ft

Temperature

UL Temperature	105°C
Operating	-10°C To 105°C (Static), 5°C To 105°C (Flexing)

Bend Radius

Flexing Min.	1.5 in (38 mm)

Standards and Compliance

Environmental Suitability	Sunlight Resistance
Flammability / Reaction to Fire	UL 1685 UL loading, FT4
NEC / UL Compliance	Article 800, CM
AWM Compliance	AWM 2661, AWM 10002, AWM I/II A/B
CEC / C(UL) Compliance	CMG.
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
