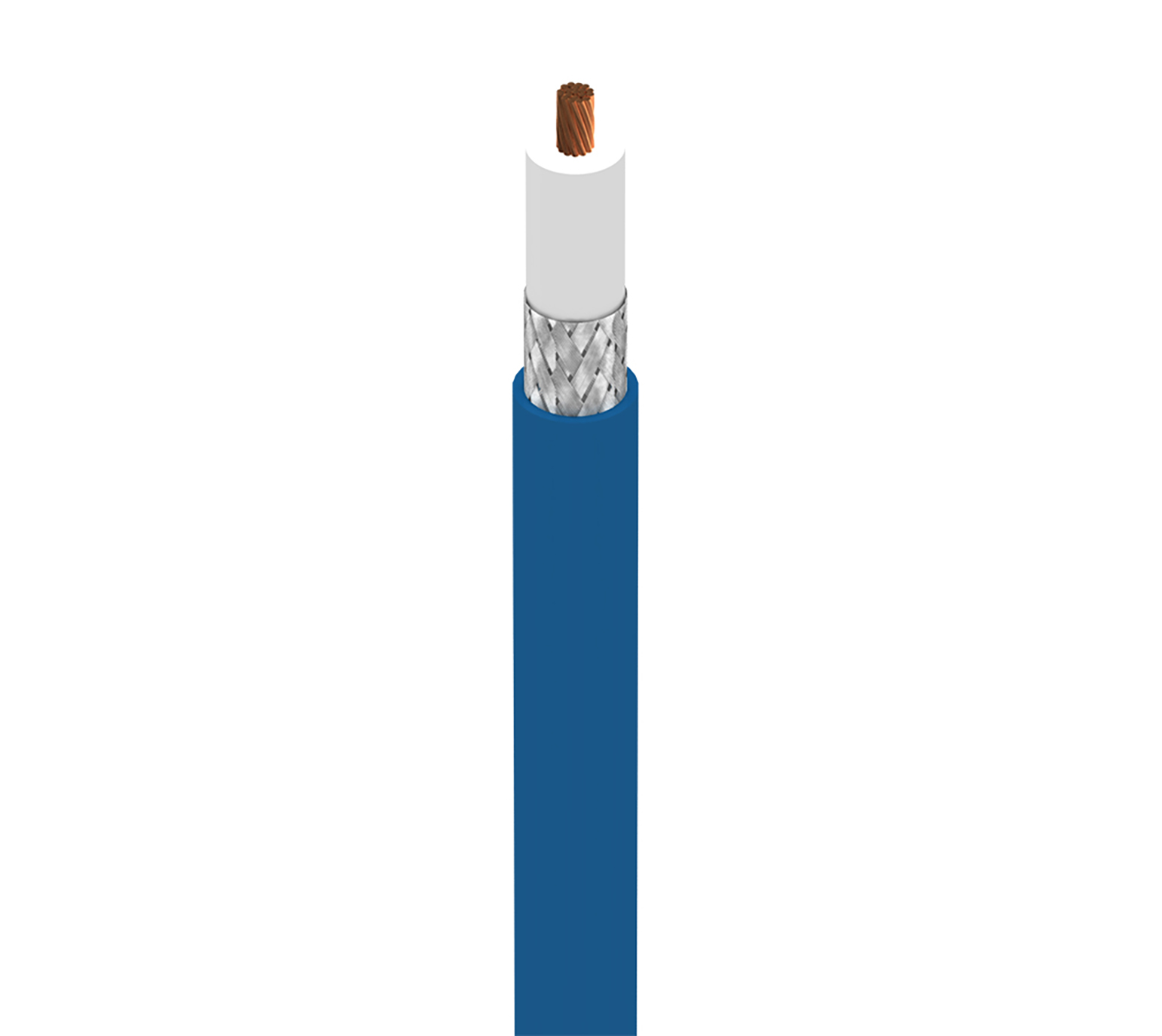

Product Number: 7503A

MachFlexTM, Vision Coax 75Ω, #20 Str BC, PO Ins, OA TC Brd, PVC Jkt, AWM 1354

MachFlexTM for High Flex, 1 Conductor 20AWG (105(7x15)x40) Bare Copper, PO Insulation, Overall Tinned Copper Braid(95%) Shield, PVC Outer Jacket, AWM 1354

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

7503A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	Length	UPC	Order
7503A G7X500	Blue, Matte	Reel	500 ft	612825187325	Order online
7503A G7X1000	Blue, Matte	Reel	1,000 ft	612825187301	Order online

Specifications

Physical Characteristics (Overall)

Conductor Count	1

Conductor

AWG	20
Stranding	7x15x40
Material	BC - Bare Copper
Nominal Diameter	0.04 in
No. of Coax	1

Insulation

Material	PE - Polyethylene (Foam)
Nominal Diameter	0.185 in

Outer Shield

Type	French Braid
Material	Tinned Copper (TC)
Coverage [%]	95%

Outer Jacket

Material	PVC - Polyvinyl Chloride
Material Trade Name	Belflex®
Nominal Diameter	0.275 in

Electrical Characteristics

Conductor DCR

Nominal Conductor DCR	8.1 Ohm/1000ft
Nominal Outer Shield DCR	11 Ohm/1000ft
Outer Conductor DCR	11 Ohm/1000ft

Capacitance

Nom. Capacitance Conductor to Shield	17.3 pF/ft

Inductance

Nominal Inductance	0.097 μH/ft

Impedance

Nominal Characteristic Impedance	75 Ohm

High Frequency (Nominal/Typical)

Frequency [MHz]	Nom. Insertion Loss
2.2 MHz	0.3 dB/100ft
5 MHz	0.4 dB/100ft
10 MHz	0.6 dB/100ft
30 MHz	1.1 dB/100ft
50 MHz	1.5 dB/100ft
100 MHz	2.2 dB/100ft

Delay

Nominal Delay	1.3 ns/ft
Nominal Velocity of Propagation (VP) [%]	80%

High Frequency

Frequency [MHz]
2.2 MHz
5 MHz
10 MHz
30 MHz
50 MHz
100 MHz

Voltage

UL Voltage Rating	30 V RMS

Temperature Range

Non-UL Temp Rating	80°C
Operating Temperature Range	-40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight	34 lbs/1000ft
Maximum Recommended Pulling Tension	35 lbs
Minimum Continuous Flexing Bend Radius	5.5 in
Minimum Minor Axis Bend Radius	2.75 in

Standards

UL AWM Style Compliance	AWM 1354
CSA AWM Compliance	AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
MII Order #39 (China RoHS)	Yes
