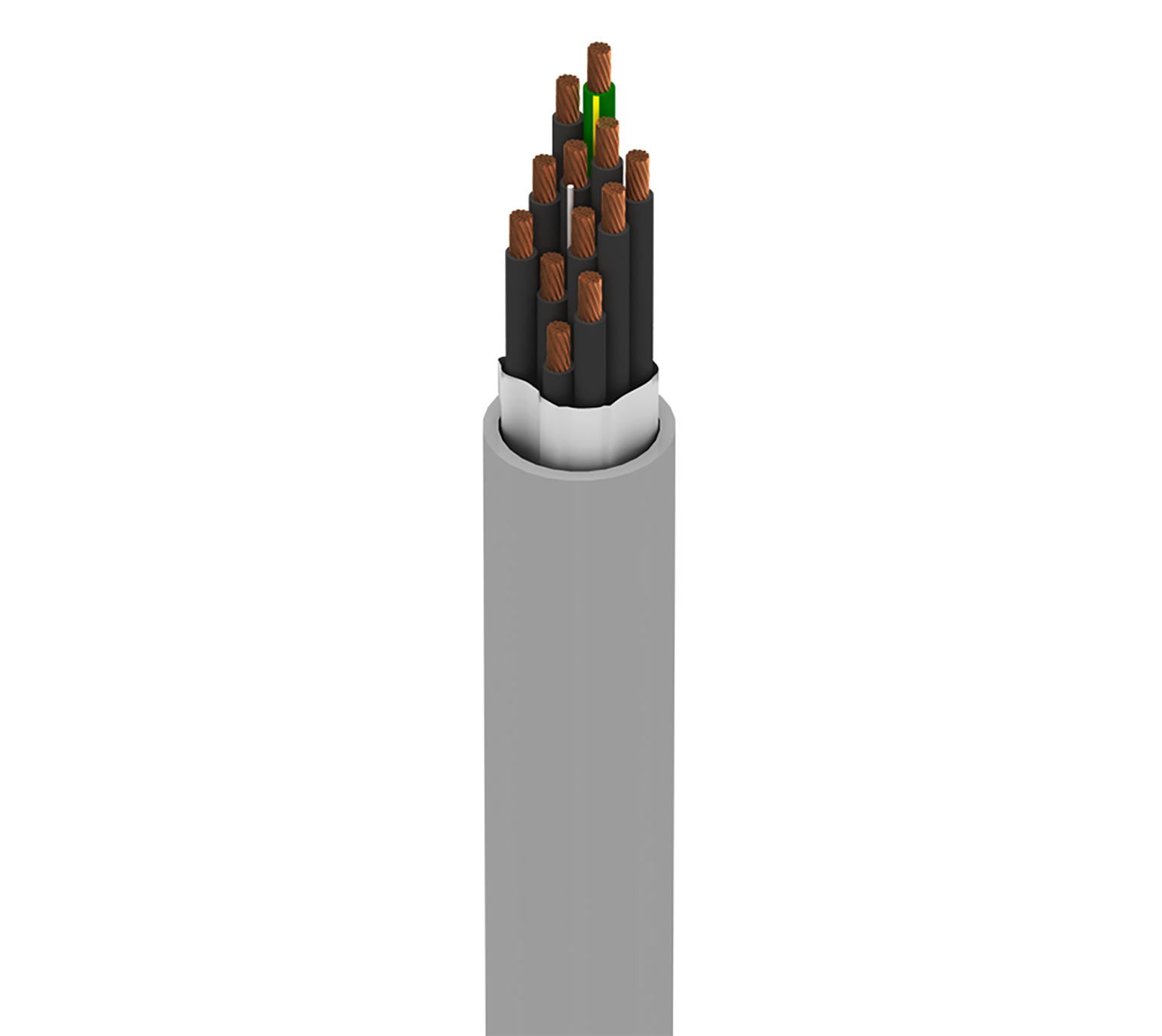

MachFlexTM, 11+1G C #14 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER
MachFlexTM for High Flex, 11+1G Conductor 14AWG (41x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
7440W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 7440W 060250 | Chrome | Reel | 250 ft | 612825186755 | Order online |
| 7440W 0601000 | Chrome | Reel | 1,000 ft | 612825186748 | Order online |
| 7440W 0605000 | Chrome | Reel | 5,000 ft | 612825186762 | Order online |
Specifications
Physical Characteristics (Overall)
| Conductor Count | 12 |
|---|
Conductor
| Element | AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|---|
| 14 | 41x30 | BC - Bare Copper | 11 | |
| Ground Wire | 14 | 41x30 | BC - Bare Copper | 1 |
Insulation
| Material | PVC/Nylon - Polyvinyl Chloride + Nylon |
|---|---|
| Nominal Diameter | 0.117 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black and Numbered 1 |
| 2 | Black and Numbered 2 |
| 3 | Black and Numbered 3 |
| 4 | Black and Numbered 4 |
| 5 | Black and Numbered 5 |
| 6 | Black and Numbered 6 |
| 7 | Black and Numbered 7 |
| 8 | Black and Numbered 8 |
| 9 | Black and Numbered 9 |
| 10 | Black and Numbered 10 |
| 11 | Black and Numbered 11 |
| 12 | Green/Yellow |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Nominal Diameter | 0.617 in |
| Nominal Wall Thickness | 0.063 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 2.5 Ohm/1000ft |
|---|
Voltage
| UL Voltage Rating |
|---|
| 1000 V RMS |
| 600 V RMS |
Temperature Range
| UL Temperature Rating | 75°C Dry, 90°C Wet |
|---|---|
| Other Temp Range | Flexing: -5°C To +90 °C |
Mechanical Characteristics
| Oil Resistance | Yes |
|---|---|
| UV Resistance | Yes |
| Flex Cycle Rating | 1 Million Flexes |
| Bulk Cable Weight | 259 lbs/1000ft |
| Maximum Recommended Pulling Tension | 804 lbs |
| Minimum Continuous Flexing Bend Radius | 6.2 in |
Standards
| NEC/(UL) Compliance | TC-ER, WTTC |
|---|---|
| CEC/C(UL) Compliance | CIC, TC |
| UL AWM Style Compliance | AWM 20328 |
| CSA AWM Compliance | AWM I/II A/B |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS) | Yes |
Suitability
| Suitability - Non-Halogenated | No |
|---|---|
| Suitability - Oil Resistance | Yes - Oil Res II |
| Suitability - Sunlight Resistance | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL1685 UL Loading |
|---|---|
| CSA Flammability | FT4 |
| IEEE Flammability | IEEE 1202 FT4 |
| UL voltage rating | 1000 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP. |
|---|
History
| Update and Revision | Revision Number: 0.371 Revision Date: 02-03-2025 |
|---|
