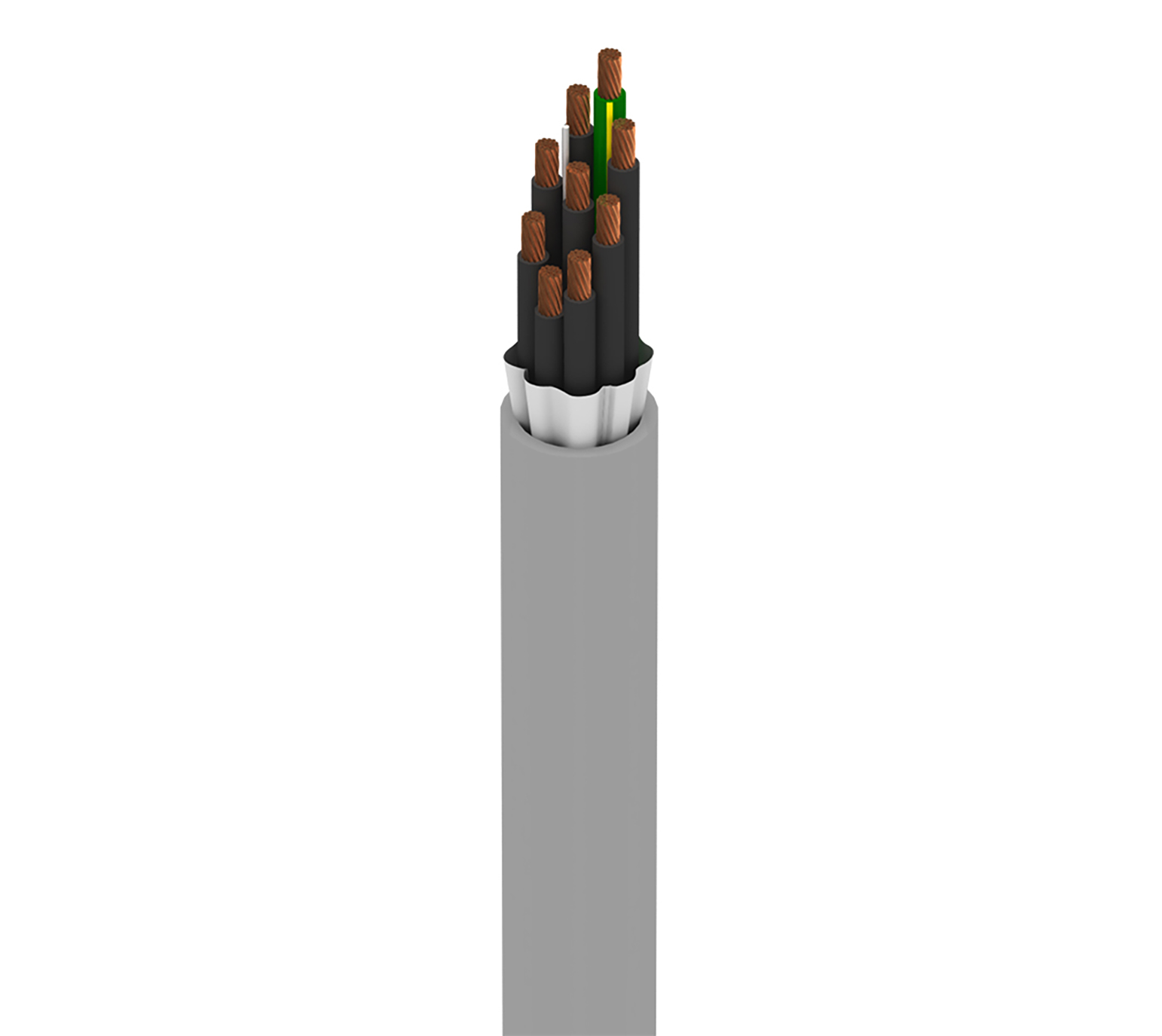

Product Number: 7439W

MachFlexTM, 8+1G C #14 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

Name: Belden 7439W
Brand: Belden
SKU: 7439W

MachFlexTM for High Flex, 8+1G Conductor 14AWG (41x30) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Ships from and sold by A5 IT.

Part numbers

7439W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7439W 060250	Chrome	Reel	250 ft	612825186724	C	Order online
7439W 0601000	Chrome	Reel	1,000 ft	612825186717	—	Order online
7439W 0605000	Chrome	Reel	5,000 ft	612825186731	—	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Element	Size	Stranding	Material
	14	41x30	BC - Bare Copper
Ground Wire	14	41x30	BC - Bare Copper

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Insulation Diameter	0.117 in (2.97 mm)
Color Code	Black and Numbered 1, Black and Numbered 2, Black and Numbered 3, Black and Numbered 4, Black and Numbered 5, Black and Numbered 6, Black and Numbered 7, Black and Numbered 8, Green/Yellow

Material	No Shield

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.593 in

Nom. Conductor DCR	2.5 Ohm/1000ft (8.2 Ohm/km)

UL Voltage Rating	1000 V RMS, 600 V RMS

Max. Pull Tension	603 lbs (274 kg)
Bulk Cable Weight	171 lbs/1000ft (254 kg/km)

UL Temperature	75°C Dry, 90°C Wet

Flexing Min.	5.9 in

Environmental Suitability	Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, 1202
NEC / UL Compliance	TC-ER, WTTC
AWM Compliance	AWM 20328, AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
