Product Number: 7416WS

MachFlexTM, 17+1G C #18 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, 1000V WTTC, 600V TC-ER

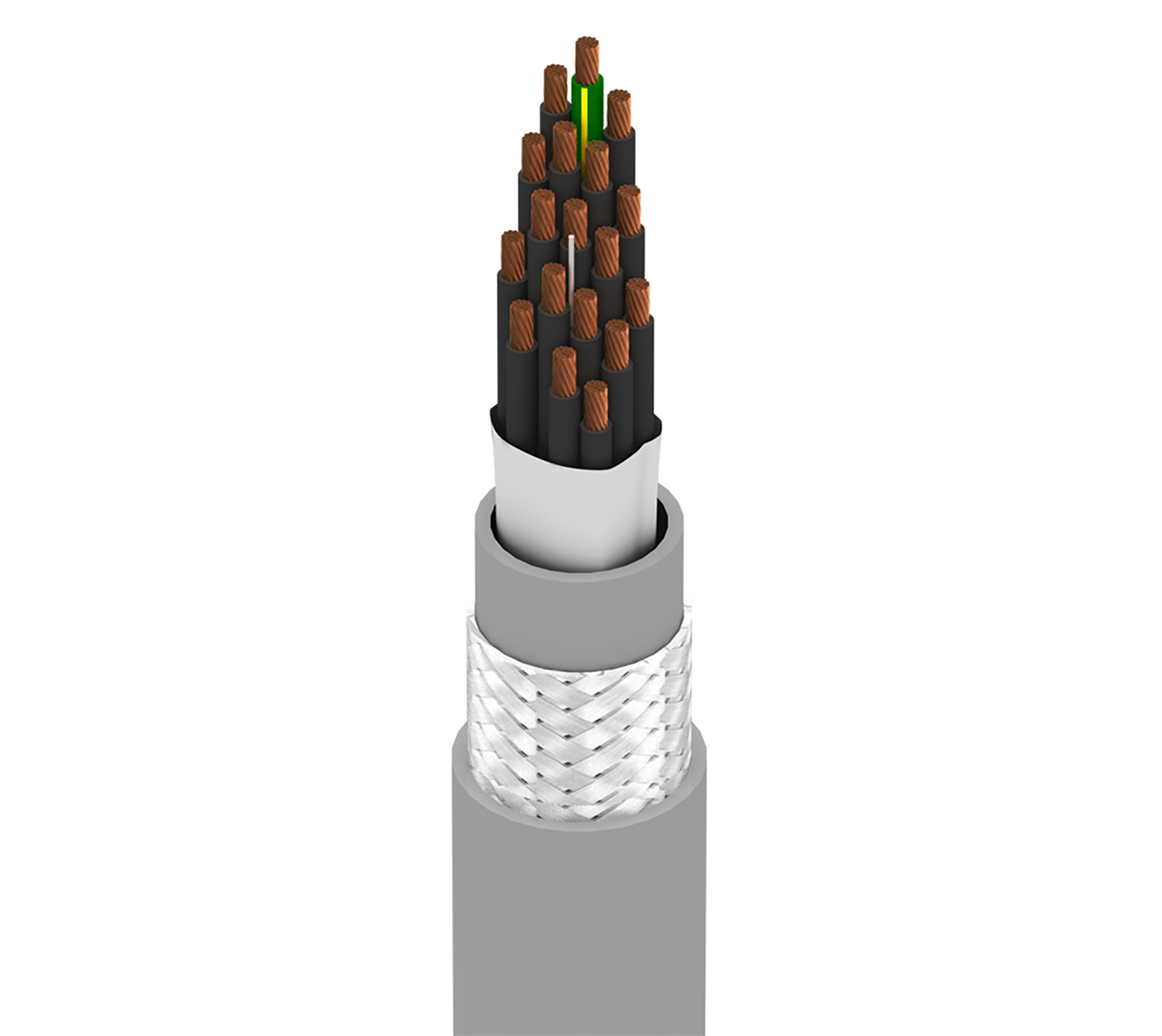

MachFlexTM for High Flex, 17+1G Conductor 18AWG (16x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

7416WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
7416WS 0601000	Chrome	Reel	1,000 ft	612825186021	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Conductor

Element	Size	Stranding	Material
	18	16x30	BC - Bare Copper
Ground Wire	18	16x30	BC - Bare Copper

Insulation

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Insulation Diameter	0.089 in (2.3 mm)
Color Code	Black and Numbered 1, Black and Numbered 2, Black and Numbered 3, Black and Numbered 4, Black and Numbered 5, Black and Numbered 6, Black and Numbered 7, Black and Numbered 8, Black and Numbered 9, Black and Numbered 10, Black and Numbered 11, Black and Numbered 12, Black and Numbered 13, Black and Numbered 14, Black and Numbered 15, Black and Numbered 16, Black and Numbered 17, Green/Black

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	85%

Inner Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.025 in (0.64 mm)
Nom. Diameter	0.5 in (13 mm)

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.654 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	6.5 Ohm/1000ft (21 Ohm/km)

Voltage

UL Voltage Rating	1000 V RMS, 600 V RMS

Mechanical Characteristics

Max. Pull Tension	414 lbs (188 kg)
Bulk Cable Weight	263 lbs/1000ft (391 kg/km)

Temperature

UL Temperature	75°C Dry, 90°C Wet

Bend Radius

Flexing Min.	6.5 in

Standards and Compliance

Environmental Suitability	Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, 1202
NEC / UL Compliance	TC-ER, WTTC
AWM Compliance	AWM 20328, AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
