Product Number: 7415WS

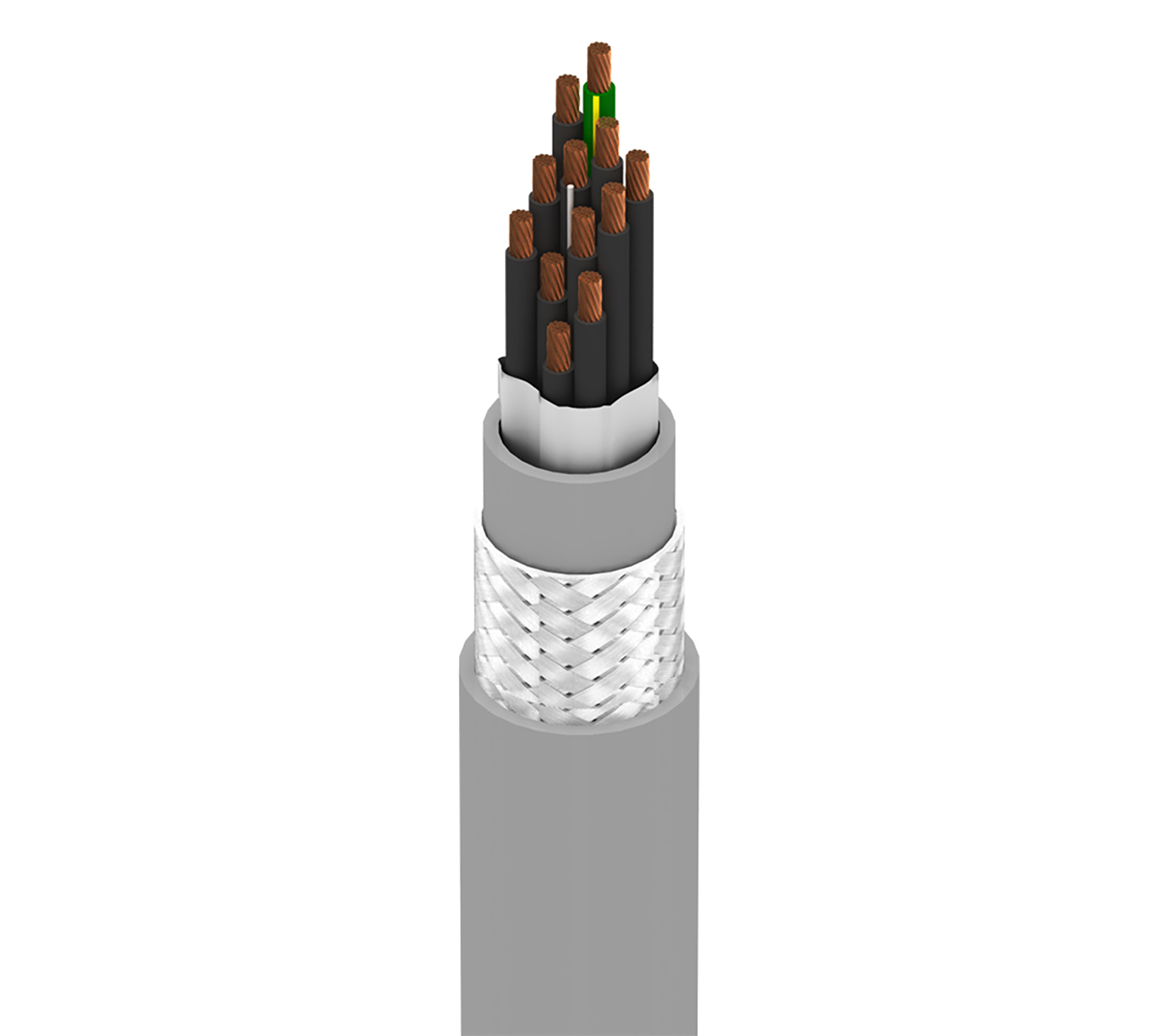

MachFlexTM, 11+1G C #18 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, 1000V WTTC, 600V TC-ER

MachFlexTM for High Flex, 11+1G Conductor 18AWG (16x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

7415WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7415WS 060250	Chrome	Reel	250 ft	612825185970	C	Order online
7415WS 0601000	Chrome	Reel	1,000 ft	612825185963	C	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.578 in

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	11	18 AWG	16x30	BC - Bare Copper
Ground Wire	1	18 AWG	16x30	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)	0.089 in (2.3 mm)	Black and Numbered
Ground Wire	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)	0.089 in (2.3 mm)	Green/Yellow

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	85%

Inner Jacket

Separator	non-Woven Tape
Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.25 in (6.4 mm)
Nom. Diameter	0.424 in (10.8 mm)
Color	Chrome

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.578 in

Electrical Characteristics

Nom Outer Shield DCR	2.92 Ohm/1000ft (9.58 Ohm/km)

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	6.5 Ohm/1000ft	10.5 Amps per Conductor at 30oC
Ground Wire	7.06 Ohm/1000ft (23.2 Ohm/km)	24 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	1000 V (WTTC), 600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	249.6 lbs (113.2 kg)
Bulk Cable Weight	196 lbs/1000ft

Temperature

UL Temperature	UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C
Operating	-40°C To 105°C

Bend Radius

Stationary Min.	2.31 in (58.7 mm)
Installation Min.	2.89 in

Standards and Compliance

Environmental Suitability	Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336
AWM Compliance	AWM 20328, AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
