Product Number: 7411WS

MachFlexTM, 3+1G C #18 Str BC, PVC-NYL Ins, OA TC Brd, TPE Jkt, 1000V WTTC, 600V TC-ER

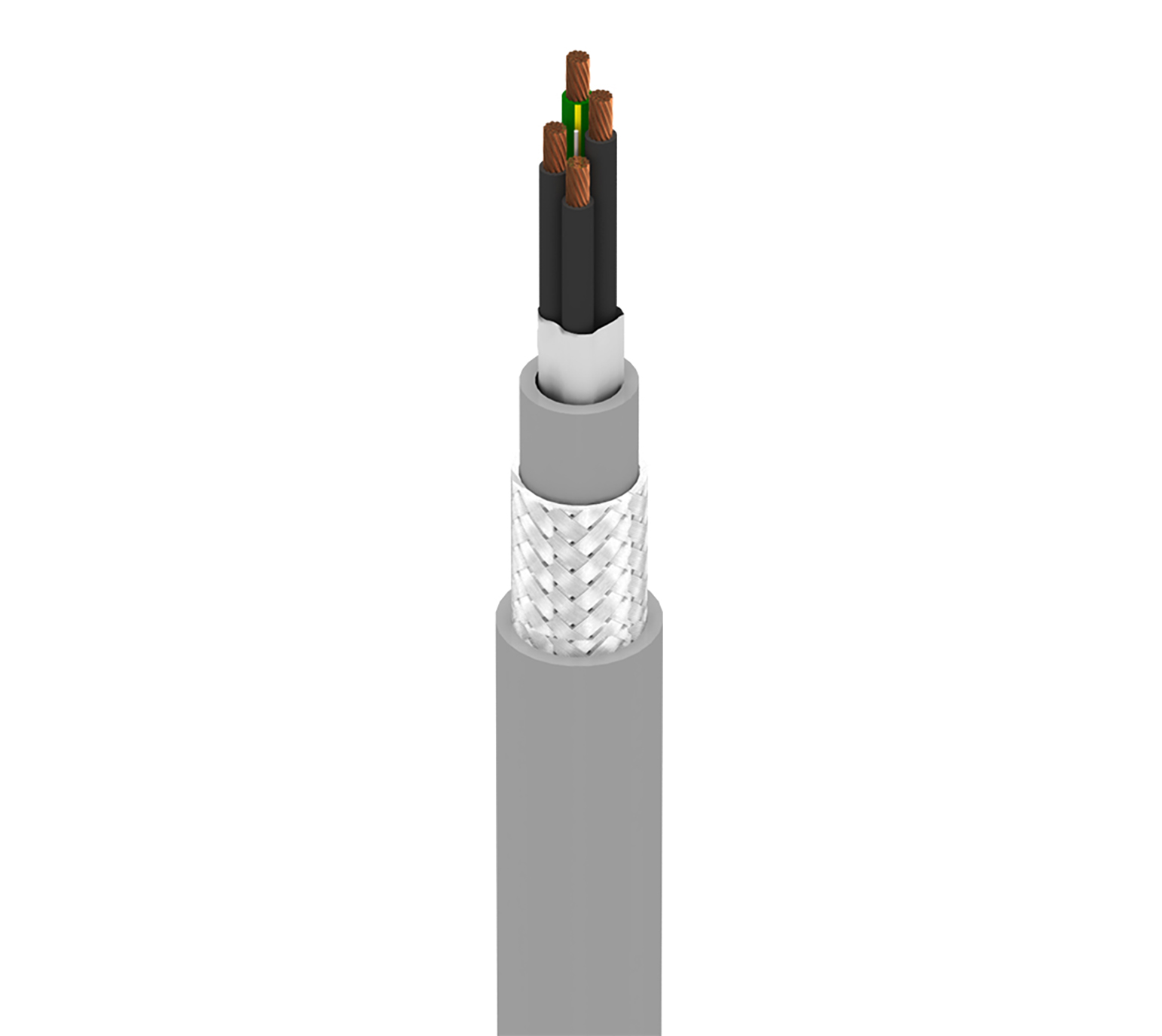

MachFlexTM for High Flex, 3+1G Conductor 18AWG (16x30) Bare Copper, PVC-NYL Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

7411WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7411WS 060250	Chrome	Reel	250 ft	612825185802	C	Order online
7411WS 0601000	Chrome	Reel	1,000 ft	612825185796	C	Order online
7411WS 0605000	Chrome	Reel	5,000 ft	612825185819	—	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.391 in

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	18 AWG	16x30	BC - Bare Copper
Ground Wire	1	18 AWG	16x30	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)	0.089 in (2.3 mm)	Black and Numbered
Ground Wire	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)	0.089 in (2.3 mm)	Green/Yellow

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	85%

Inner Jacket

Separator	non-Woven Tape
Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.25 in (6.4 mm)
Nom. Diameter	0.269 in (6.83 mm)
Color	Chrome

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.047 in (1.2 mm)
Nom. Diameter	0.391 in

Electrical Characteristics

Nom Outer Shield DCR	4.32 Ohm/1000ft (14.2 Ohm/km)

Electricals

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	6.5 Ohm/1000ft	15 Amps per Conductor at 30oC
Ground Wire	7.06 Ohm/1000ft (23.2 Ohm/km)	24 Amps per Conductor at 30oC

Voltage

UL Voltage Rating	1000 V (WTTC), 600 V (TC-ER)

Mechanical Characteristics

Max. Pull Tension	83.2 lbs (37.7 kg)
Bulk Cable Weight	91 lbs/1000ft

Temperature

UL Temperature	UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C
Operating	-40°C To 105°C

Bend Radius

Stationary Min.	1.56 in (39.6 mm)
Installation Min.	1.95 in

Standards and Compliance

Environmental Suitability	Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336
AWM Compliance	AWM 20328, AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
