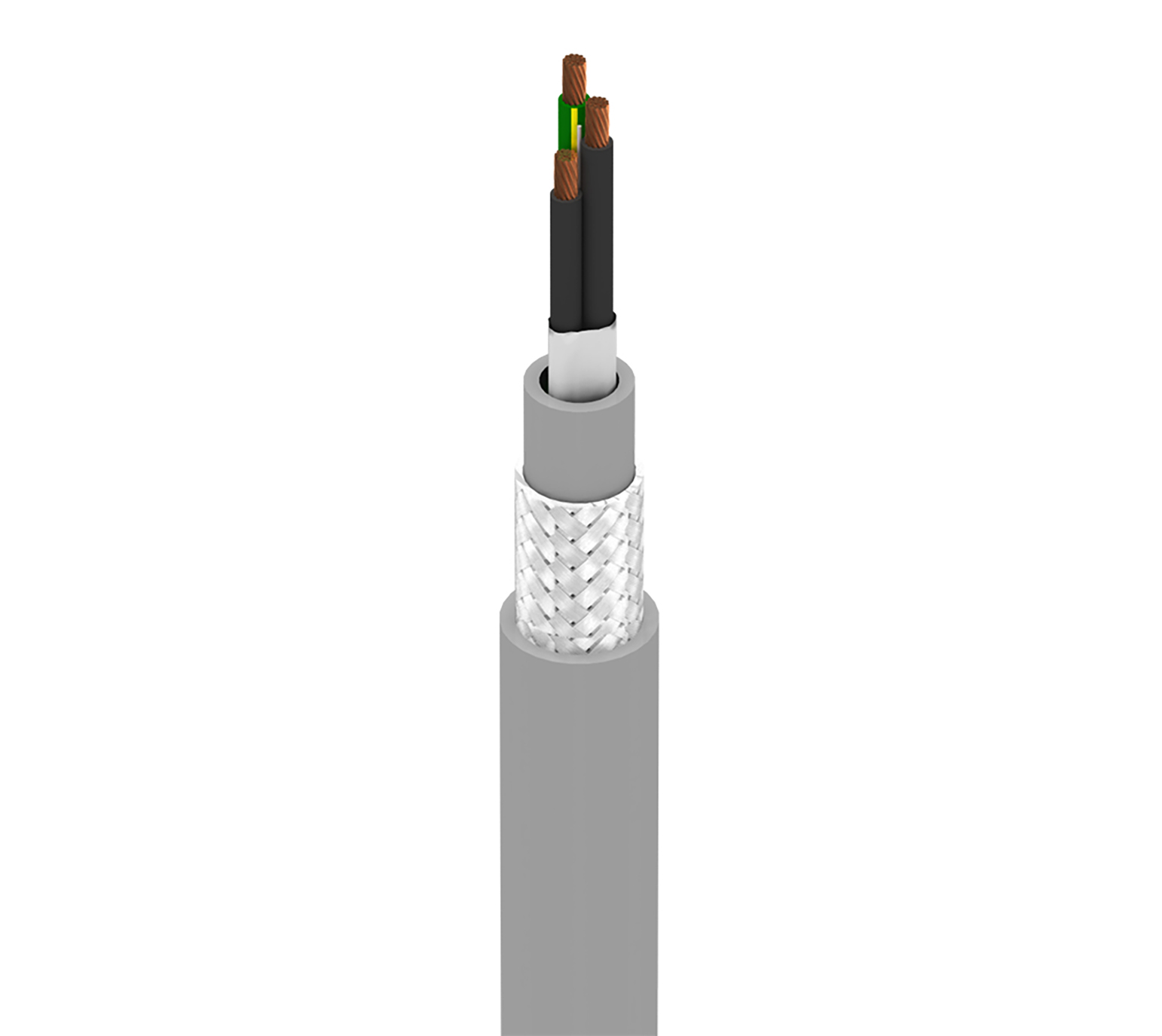

MachFlexTM, 2+1G C #20 Str BC, PVC Ins, OA TC Brd, TPE Jkt, PLTC
MachFlexTM for High Flex, 2+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Outer Jacket, PLTC
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
7401WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Put-Up Type | Length | UPC | Order |
|---|---|---|---|---|---|
| 7401WS 060250 | Chrome | Reel | 250 ft | 612825185314 | Order online |
| 7401WS 0601000 | Chrome | Reel | 1,000 ft | 612825185307 | Order online |
| 7401WS 0605000 | Chrome | Reel | 5,000 ft | 612825185321 | Order online |
Specifications
Physical Characteristics (Overall)
| Conductor Count | 3 |
|---|
Conductor
| Element | AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|---|
| 20 | 19x32 | BC - Bare Copper | 2 | |
| Ground Wire | 20 | 19x32 | BC - Bare Copper | 1 |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Wall Thickness | 0.015 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Black and Numbered 1 |
| 2 | Black and Numbered 2 |
| 3 | Green/Yellow |
Inner Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Nominal Diameter | 0.197 in |
| Nominal Wall Thickness | 0.025 in |
Outer Shield
| Type | Braid |
|---|---|
| Material | Tinned Copper (TC) |
| Coverage [%] | 85% |
| Nominal Diameter | 0.219 in |
Outer Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|---|
| Nominal Diameter | 0.303 in |
| Nominal Wall Thickness | 0.042 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR | 8.8 Ohm/1000ft |
|---|
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Temperature Range
| UL Temperature Rating | 90°C |
|---|---|
| Operating Temperature Range | -40°C (-5°C Flexing) To +90°C |
| Other Temp Range | Flexing: -5°C To +90 °C |
Mechanical Characteristics
| Oil Resistance | Yes |
|---|---|
| UV Resistance | Yes |
| Flex Cycle Rating | 1 Million Flexes |
| Bulk Cable Weight | 56 lbs/1000ft |
| Maximum Recommended Pulling Tension | 39 lbs |
| Minimum Continuous Flexing Bend Radius | 3 in |
Standards
| NEC/(UL) Compliance | PLTC |
|---|---|
| UL AWM Style Compliance | AWM 20327 |
| CSA AWM Compliance | AWM I/II A/B |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2011/65/EU (RoHS 2) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive Compliance | EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS) | Yes |
Suitability
| Suitability - Non-Halogenated | No |
|---|---|
| Suitability - Oil Resistance | Yes - Oil Res II |
| Suitability - Sunlight Resistance | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability | UL1685 UL Loading |
|---|---|
| CSA Flammability | FT4 |
| IEEE Flammability | IEEE 1202 FT4 |
| UL voltage rating | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N) | No |
|---|
Related Part Numbers
| Footnote | C - CRATE REEL PUT-UP. |
|---|
History
| Update and Revision | Revision Number: 0.340 Revision Date: 02-03-2025 |
|---|
