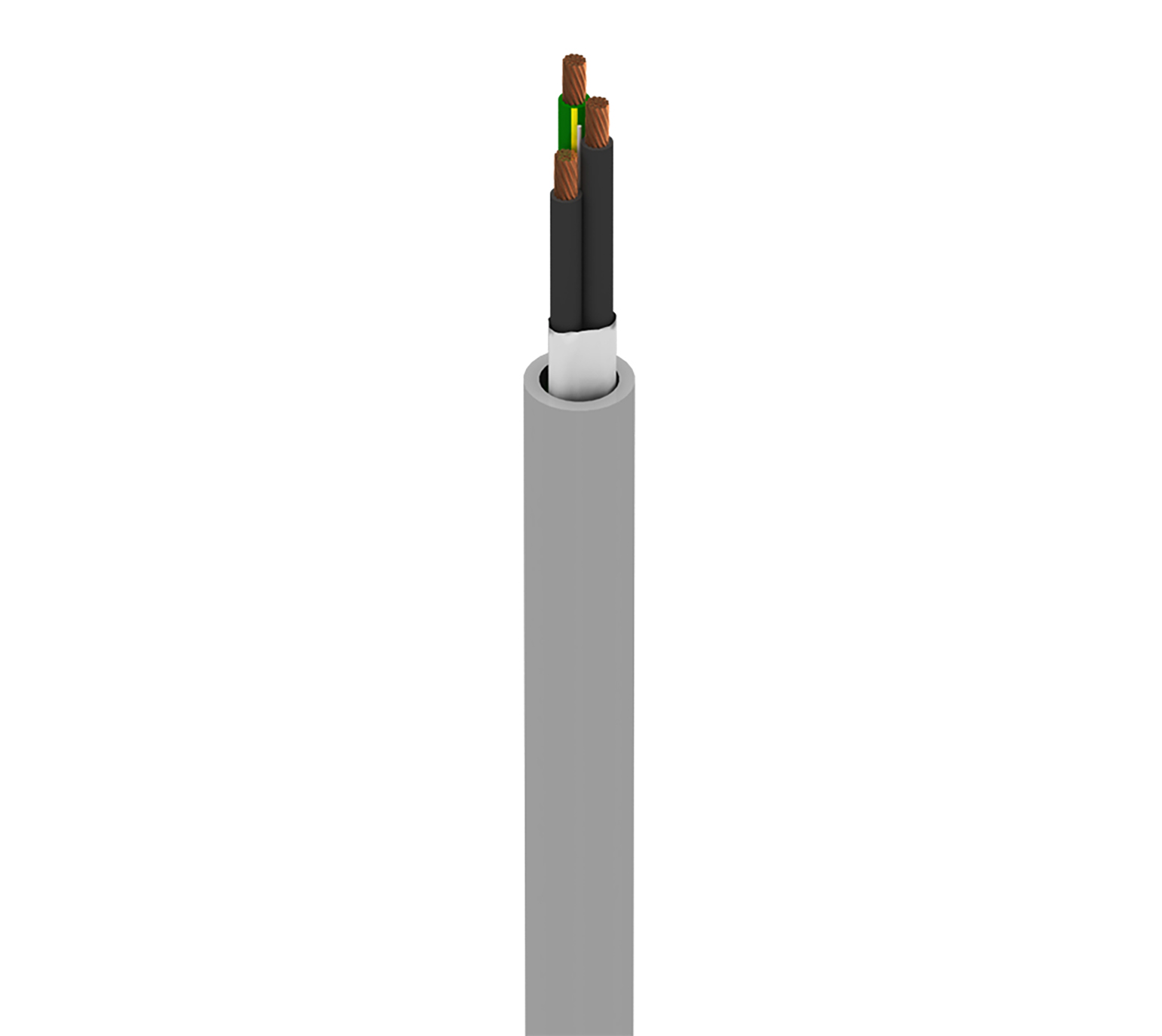

MachFlexTM, 2+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC
MachFlexTM for High Flex, 2+1G Conductor 20AWG (19x32) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
7401W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 7401W 060250 | Chrome | Reel | 250 ft | 612825185284 | C | Order online |
| 7401W 0601000 | Chrome | Reel | 1,000 ft | 612825185277 | C | Order online |
| 7401W 0605000 | Chrome | Reel | 5,000 ft | 612825185291 | — | Order online |
Specifications
Product Overview
| Suitable Applications | Robotics, Robot, Continuous Flex |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.221 in |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 20 AWG | 19x32 | BC - Bare Copper |
| Ground Wire | 1 | 20 AWG | 19x32 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.066 in (1.7 mm) | Black and Numbered |
| Ground Wire | PVC - Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.066 in (1.7 mm) | Green/Yellow |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Separator | non-Woven Tape |
|---|---|
| Material | TPE - Thermoplastic Elastomer |
| Nom. Thickness | 0.037 in (0.94 mm) |
| Nom. Diameter | 0.221 in |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Conductor(s) | 10.7 Ohm/1000ft | 9 Amps per Conductor at 30oC |
| Ground Wire | 10.7 Ohm/1000ft (35.1 Ohm/km) | 14.4 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 300 V |
|---|---|
| Voltage Rating | 600 V |
Mechanical Characteristics
| Max. Pull Tension | 45 lbs (20 kg) |
|---|---|
| Bulk Cable Weight | 29 lbs/1000ft |
Temperature
| UL Temperature | UL : 90°C, AWM 20327 : 105°C |
|---|---|
| Operating | -40°C To 105°C |
Bend Radius
| Stationary Min. | 2.21 in (56.1 mm) |
|---|---|
| Installation Min. | 2.21 in |
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 725, PLTC |
| AWM Compliance | AWM 20327, AWM I/II A/B |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.374 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
