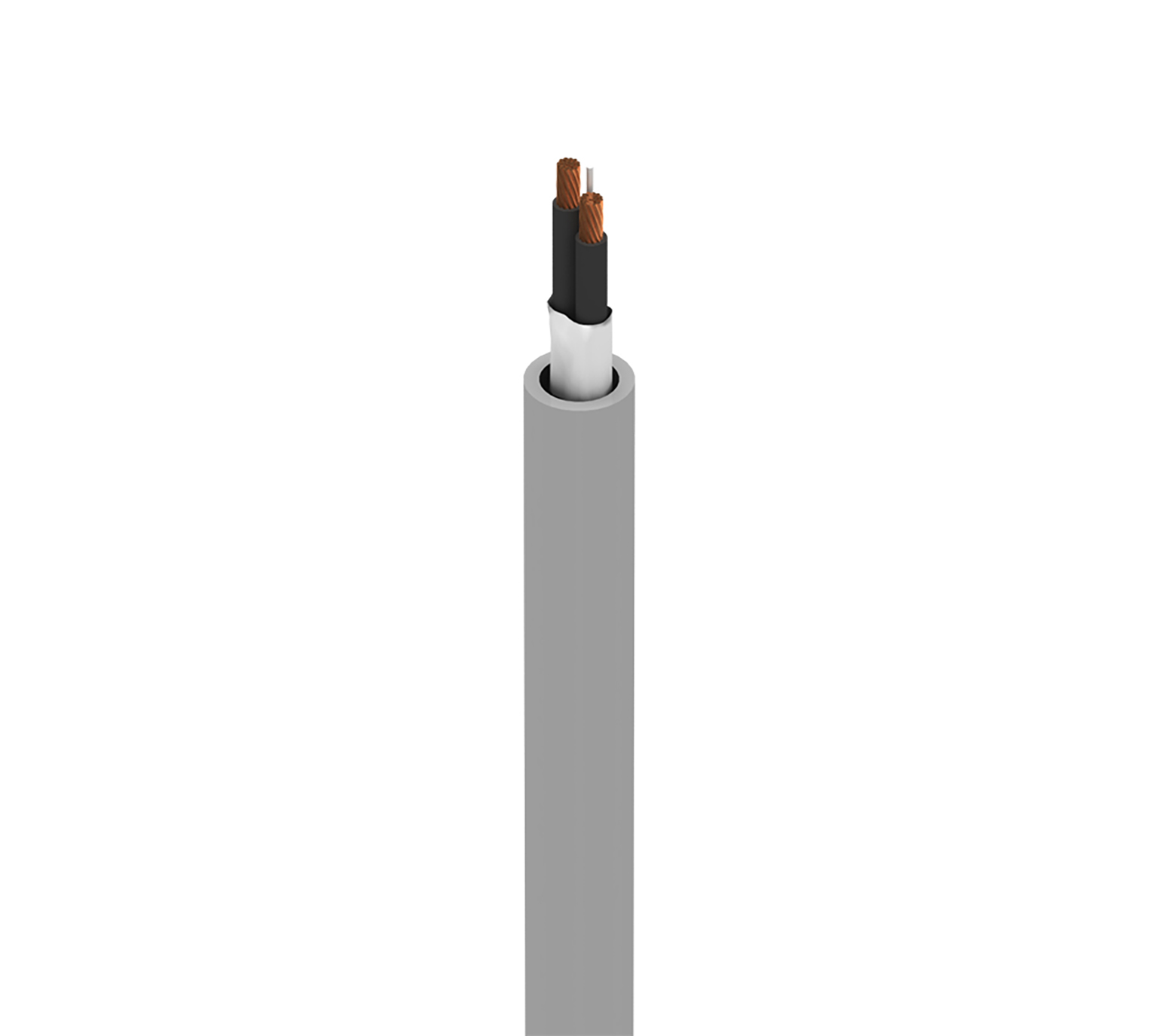

MachFlexTM, 2 C #20 Str BC, PVC Ins, TPE Jkt, PLTC
MachFlexTM for High Flex, 2 Conductor 20AWG (19x32) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
7400W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 7400W 060250 | Chrome | Reel | 250 ft | 612825185253 | C | Order online |
| 7400W 0601000 | Chrome | Reel | 1,000 ft | 612825185246 | C | Order online |
| 7400W 0605000 | Chrome | Reel | 5,000 ft | 612825185260 | — | Order online |
Specifications
Product Overview
| Suitable Applications | Robotics, Robot, Continuous Flex |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.211 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 20 AWG |
| Stranding | 19x32 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.015 in (0.38 mm) |
| Nom. Insulation Diameter | 0.066 in (1.7 mm) |
| Color Code | Black and Numbered |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Separator | non-Woven Tape |
|---|---|
| Material | TPE - Thermoplastic Elastomer |
| Nom. Thickness | 0.037 in (0.94 mm) |
| Nom. Diameter | 0.211 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 10.7 Ohm/1000ft |
|---|---|
| Max. Current | 9 Amps per Conductor at 30oC |
Voltage
| UL Voltage Rating | 300 V |
|---|---|
| Voltage Rating | 600 V |
Mechanical Characteristics
| Max. Pull Tension | 30 lbs (14 kg) |
|---|---|
| Bulk Cable Weight | 25 lbs/1000ft |
Temperature
| UL Temperature | UL : 90°C, AWM 20327 : 105°C |
|---|---|
| Operating | -40°C To 105°C |
Bend Radius
| Stationary Min. | 2.11 in (53.6 mm) |
|---|---|
| Installation Min. | 2.11 in |
Standards and Compliance
| Environmental Suitability | Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance |
|---|---|
| Flammability / Reaction to Fire | UL1685 UL Loading, IEEE 1202 FT4 |
| NEC / UL Compliance | Article 725, PLTC |
| AWM Compliance | AWM 20327, AWM I/II A/B |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.380 Revision Date: 09-07-2025 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
