Product Number: 73612W

MachFlexTM, 12 C #16 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

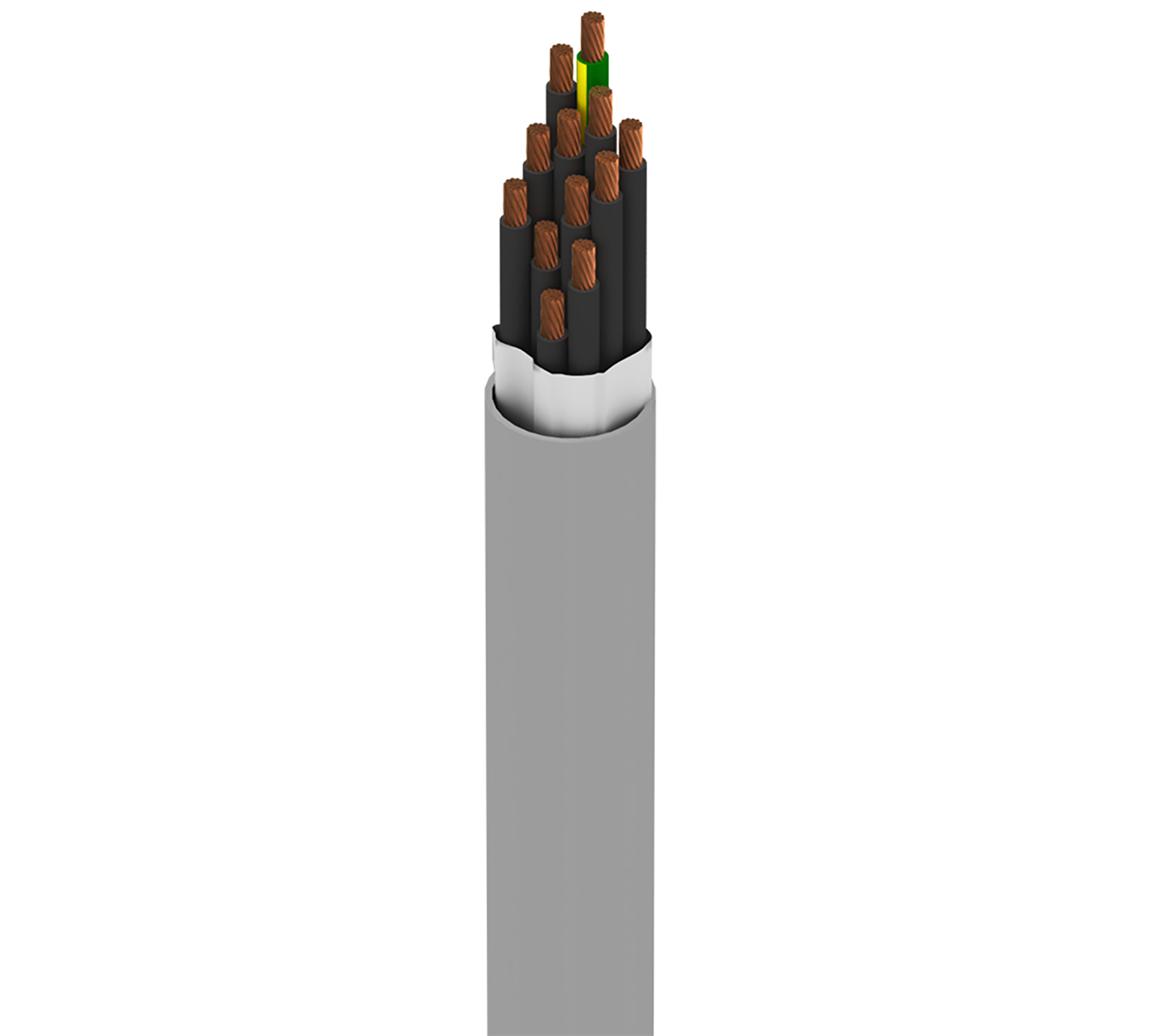

Name: Belden 73612W
Brand: Belden
SKU: 73612W

MachFlexTM for Moderate Flex, 12 Conductor 16AWG (26x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ships from and sold by A5 IT.

Part numbers

73612W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	UPC	Order
73612W 008100	Gray	Reel	612825409984	Order online
73612W 0081000	Gray	Reel	612825409991	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Conductor Count	12

Element	AWG	Stranding	Material	No. of Conductors
Conductor(s)	16	26x30	BC - Bare Copper	11
Ground	16	26x30	BC - Bare Copper	1

Element	Material	Nominal Diameter	Nominal Wall Thickness
Conductor(s)	PVC - Polyvinyl Chloride	0.104 in	0.022 in
Ground	PVC - Polyvinyl Chloride

Color	Black and Numbered

Type	No Shield
Material	No Shield

Nominal Conductor DCR	4.1 Ohm/1000ft

Nom. Capacitance Conductor to Conductor	34 pF/ft

Nominal Inductance	.180 μH/ft

UL Voltage Rating	600 V

UL Temperature Rating	90°C
Operating Temperature Range	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Oil Resistance	Yes
Flex Cycle Rating	1 Million Cycles
Bulk Cable Weight	380 lbs/1000ft
Maximum Recommended Pulling Tension	245 lbs
Minimum Continuous Flexing Bend Radius	2.7 in
Minimum Minor Axis Bend Radius	2.7 in

UL AWM Style Compliance	AWM 2587
CSA AWM Compliance	AWM I/II A/B

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
