Product Number: 73407WS

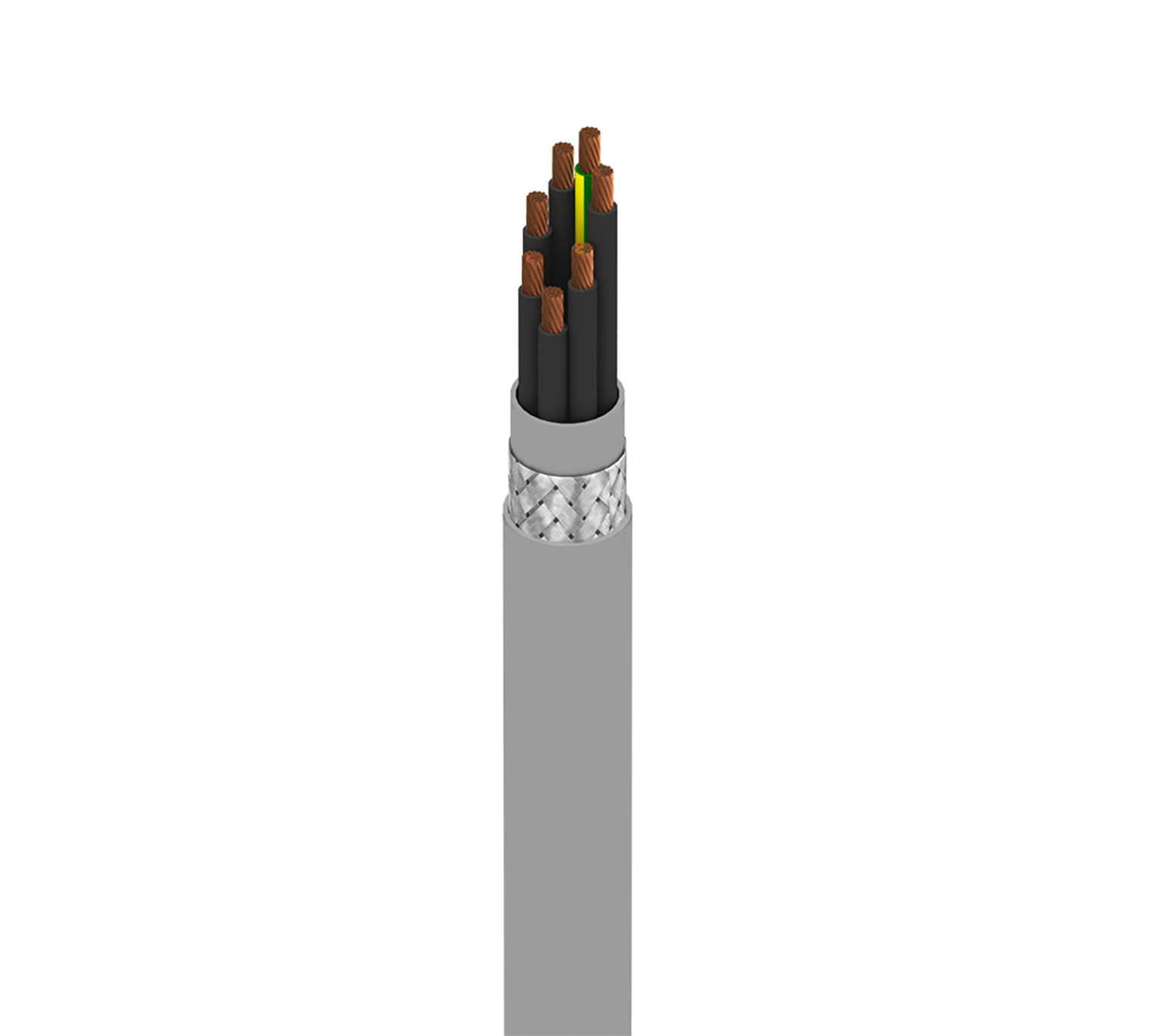

MachFlexTM, 7 C #14 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587 CLASS K

MachFlexTM for Moderate Flex, 7 Conductor 14AWG (41x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

73407WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
73407WS 008100	Gray	Reel	612825409618	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.581 in (14.8 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	6	14	41x30	BC - Bare Copper
Ground	1	14	41x30	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.118 in (3.00 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.118 in (3.00 mm)	Yellow/Green

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	85%

Inner Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	.035 in (0.89 mm)
Nom. Diameter	.433 in (11.0 mm)

Outer Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.057 in (1.4 mm)
Nom. Diameter	0.581 in

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Conductor(s)	2.6 Ohm/1000ft	57 pF/ft (190 pF/m)	17 Amps per Conductor at 30oC
Ground Wire	2.62 Ohm/1000ft (8.60 Ohm/km)

Voltage

UL Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	240 lbs (110 kg)
Bulk Cable Weight	490 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Bend Radius

Flexing Min.	4.6 in (120 mm)

Standards and Compliance

Environmental Suitability	Oil Resistance
AWM Compliance	AWM 2587, AWM I/II A/B
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
