Product Number: 73404W

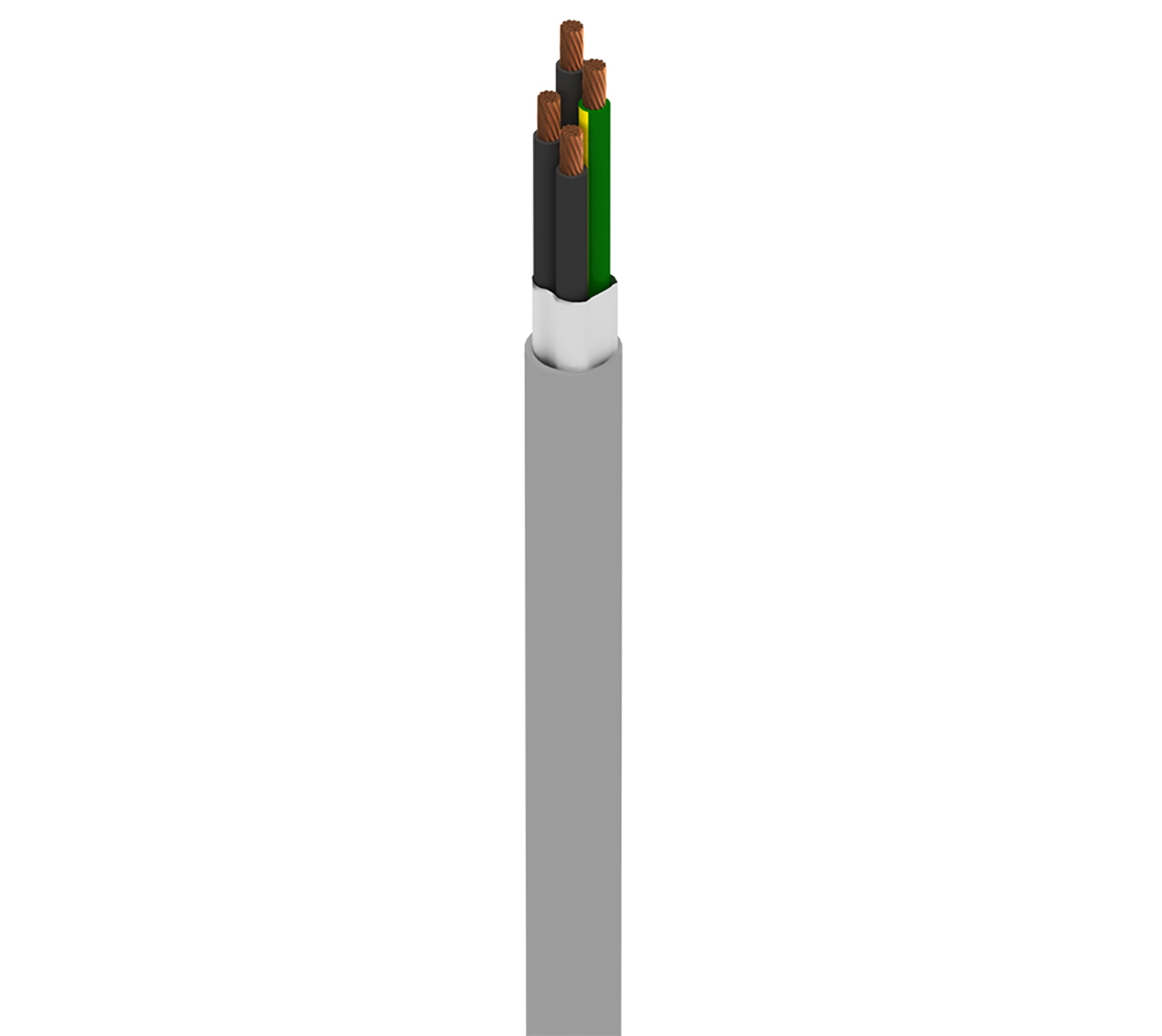

MachFlexTM, 4 C #14 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

Name: Belden 73404W
Brand: Belden
SKU: 73404W

MachFlexTM for Moderate Flex, 4 Conductor 14AWG (41x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ships from and sold by A5 IT.

Part numbers

73404W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
73404W 008100	Gray	Reel	612825409496	Order online
73404W 0081000	Gray	Reel	612825409502	Order online
73404W 008500	Gray	Reel	612825409519	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Overall Cable Diameter (Nominal)	0.404 in (10.3 mm)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	14	41x30	BC - Bare Copper
Ground	1	14	41x30	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.118 in (3.00 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.118 in (3.00 mm)	Yellow/Green

Shield Type	No Shield
Material	No Shield

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Conductor(s)	2.6 Ohm/1000ft	36 pF/ft (120 pF/m)	20 Amps per Conductor at 30oC
Ground Wire	2.62 Ohm/1000ft (8.60 Ohm/km)

UL Voltage Rating	600 V

Max. Pull Tension	129 lbs (58.5 kg)
Bulk Cable Weight	212 lbs/1000ft

UL Temperature	90°C
Operating	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Flexing Min.	2.0 in (51 mm)

Environmental Suitability	Oil Resistance
AWM Compliance	AWM 2587, AWM I/II A/B
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
