Product Number: 73205W

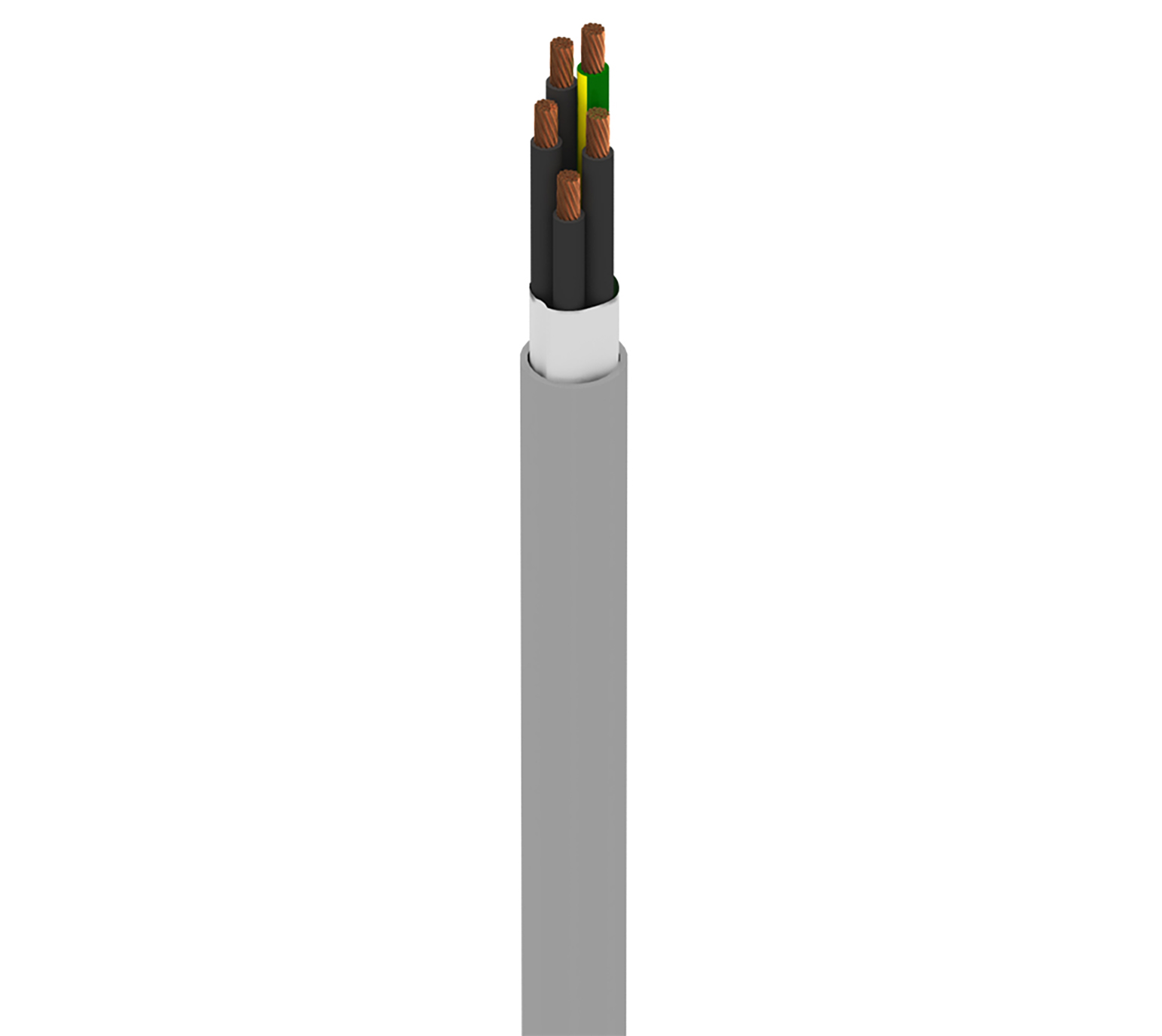

MachFlexTM, 5 C #12 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

Name: Belden 73205W
Brand: Belden
SKU: 73205W

MachFlexTM for Moderate Flex, 5 Conductor 12AWG (65x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ships from and sold by A5 IT.

Part numbers

73205W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
73205W 008100	Gray	Reel	612825409359	Order online
73205W 0081000	Gray	Reel	612825409366	Order online
73205W 008500	Gray	Reel	612825409373	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Overall Cable Diameter (Nominal)	0.553 in (14.0 mm)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	4	12	65x30	BC - Bare Copper
Ground	1	12	65x30	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.137 in (3.48 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.137 in (3.48 mm)	Yellow/Green

Shield Type	No Shield
Material	No Shield

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Conductor(s)	1.65 Ohm/1000ft	39 pF/ft (130 pF/m)	24 Amps per Conductor at 30oC
Ground Wire	1.65 Ohm/1000ft (5.41 Ohm/km)

UL Voltage Rating	600 V

Max. Pull Tension	255 lbs (116 kg)
Bulk Cable Weight	307 lbs/1000ft

UL Temperature	90°C
Operating	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Flexing Min.	2.8 in (71 mm)

Environmental Suitability	Oil Resistance
AWM Compliance	AWM 2587, AWM I/II A/B
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
