Product Number: 73204WS

MachFlexTM, 4 C #12 Str BC, PVC Ins, OA TC Brd, PVC Jkt, PVC Jkt, AWM 2587 CLASS K

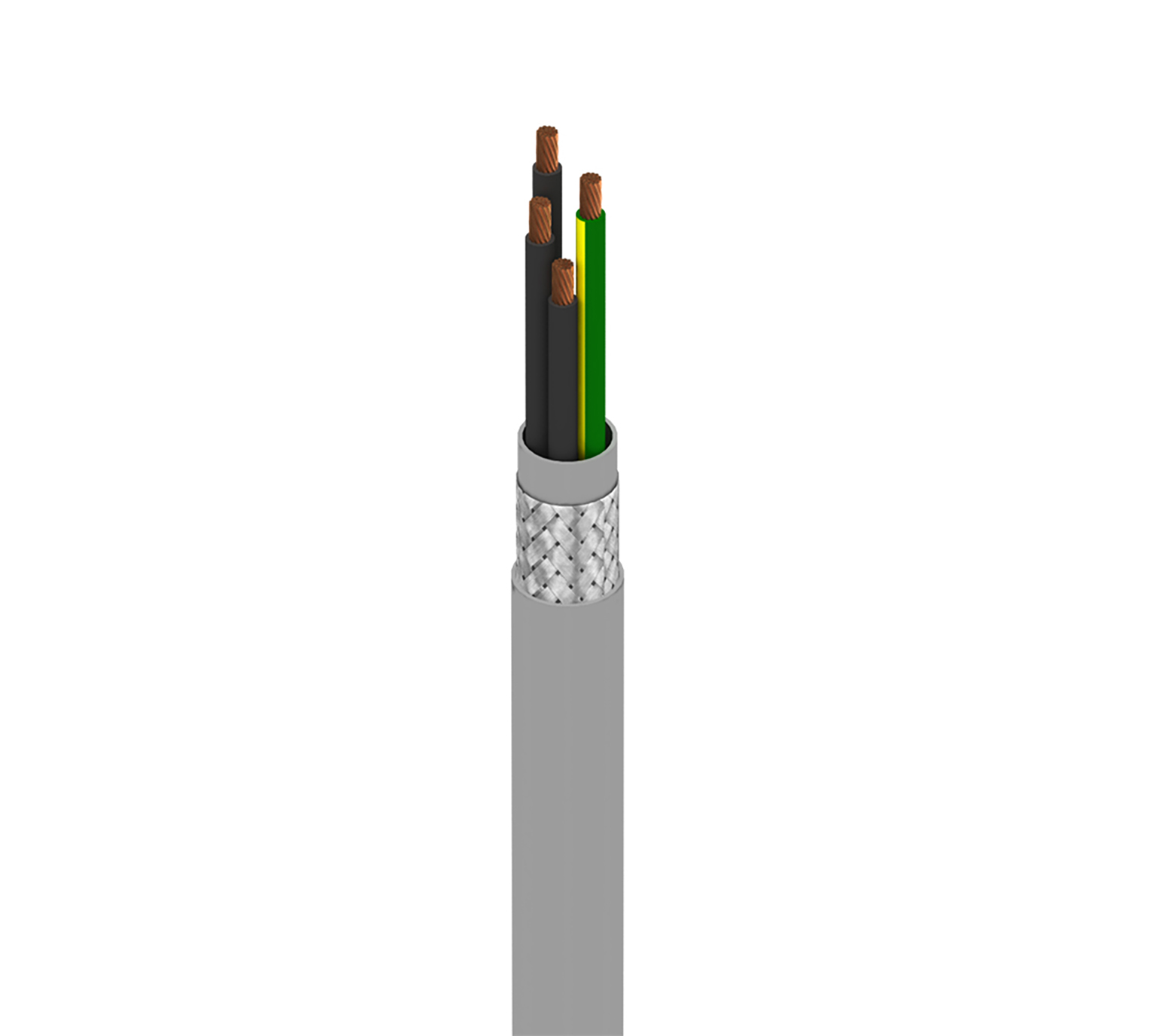

MachFlexTM for Moderate Flex, 4 Conductor 12AWG (65x30) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, PVC Inner Jacket, PVC Outer Jacket, AWM 2587 CLASS K

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

73204WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
73204WS 008100	Gray	Reel	612825409328	Order online
73204WS 0081000	Gray	Reel	612825409335	Order online
73204WS 008500	Gray	Reel	612825409342	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Overall Cable Diameter (Nominal)	0.616 in (15.6 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	12	65x30	BC - Bare Copper
Ground	1	12	65x30	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.137 in (3.48 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.137 in (3.48 mm)	Yellow/Green

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	85%

Inner Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	.055 in (1.4 mm)
Nom. Diameter	.450 in (11.4 mm)

Outer Jacket

Separator	Paper Tape
Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.066 in (1.7 mm)
Nom. Diameter	0.616 in

Electrical Characteristics

Electricals

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Conductor(s)	1.65 Ohm/1000ft	64 pF/ft (210 pF/m)	24 Amps per Conductor at 30oC
Ground Wire	1.65 Ohm/1000ft (5.41 Ohm/km)

Voltage

UL Voltage Rating	600 V

Mechanical Characteristics

Max. Pull Tension	218 lbs (98.9 kg)
Bulk Cable Weight	374 lbs/1000ft

Temperature

UL Temperature	90°C
Operating	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Bend Radius

Flexing Min.	4.9 in (120 mm)

Standards and Compliance

Environmental Suitability	Oil Resistance
AWM Compliance	AWM 2587, AWM I/II A/B
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
