Product Number: 73009W

MachFlexTM, 9 C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

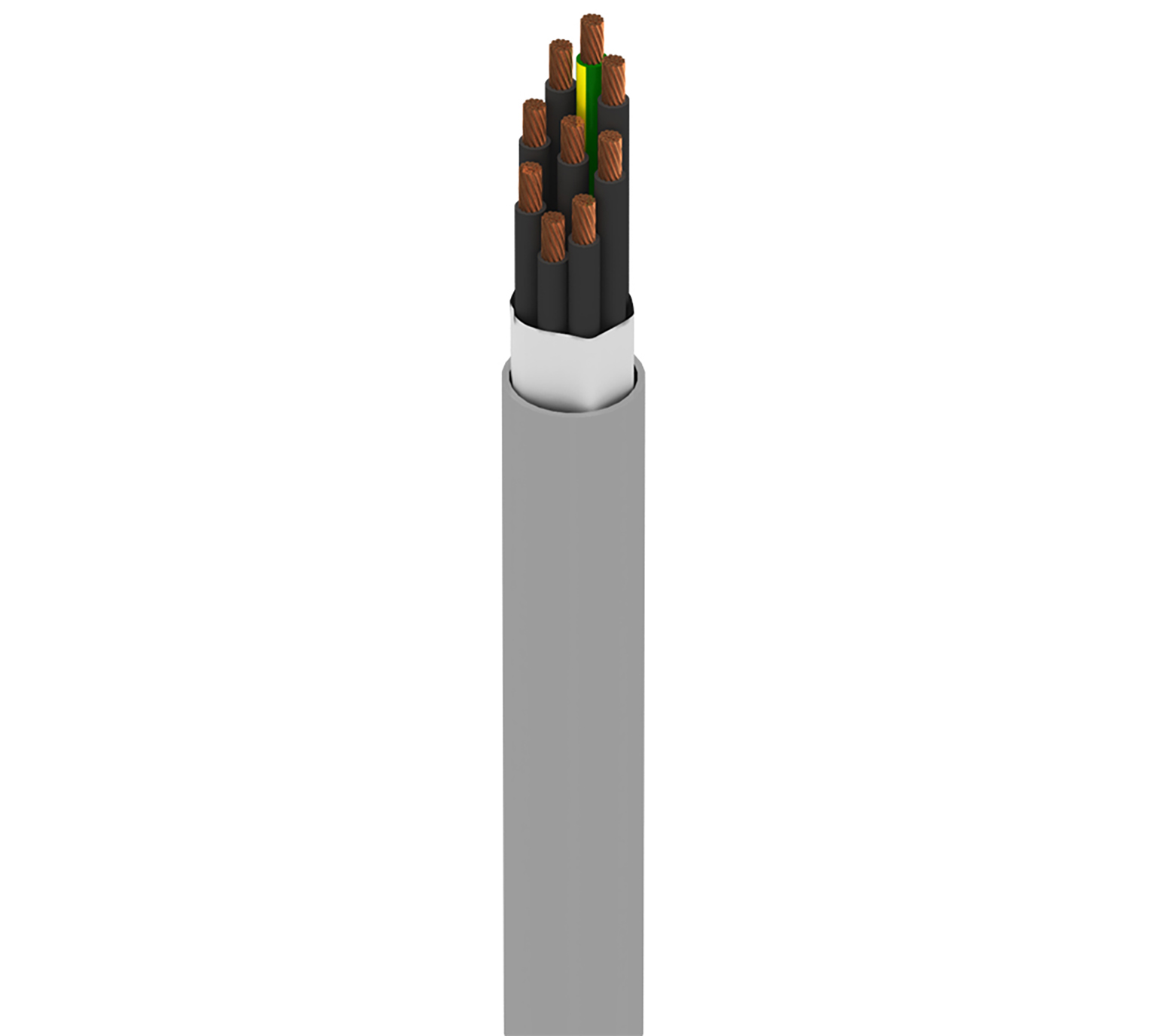

Name: Belden 73009W
Brand: Belden
SKU: 73009W

MachFlexTM for Moderate Flex, 9 Conductor 20AWG (10x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ships from and sold by A5 IT.

Part numbers

73009W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Put-Up Type	UPC	Order
73009W 008100	Gray	Reel	612825409144	Order online
73009W 0081000	Gray	Reel	612825409151	Order online
73009W 008500	Gray	Reel	612825409168	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Conductor Count	9

Element	AWG	Stranding	Material	No. of Conductors
Conductor(s)	20	10x30	BC - Bare Copper	8
Ground	20	10x30	BC - Bare Copper	1

Element	Material	Nominal Diameter	Nominal Wall Thickness
Conductor(s)	PVC - Polyvinyl Chloride	0.081 in	0.022 in
Ground	PVC - Polyvinyl Chloride

Type	No Shield
Material	No Shield

Nominal Conductor DCR	10.7 Ohm/1000ft

Nom. Capacitance Conductor to Conductor	28 pF/ft

Nominal Inductance	.210 μH/ft

UL Voltage Rating	600 V

UL Temperature Rating	90°C
Operating Temperature Range	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Oil Resistance	Yes
Flex Cycle Rating	1 Million Cycles
Bulk Cable Weight	186 lbs/1000ft
Maximum Recommended Pulling Tension	71 lbs
Minimum Continuous Flexing Bend Radius	2.1 in
Minimum Minor Axis Bend Radius	2.1 in

UL AWM Style Compliance	AWM 2587
CSA AWM Compliance	AWM I/II A/B

EU Directive 2000/53/EC (ELV)	Yes
EU Directive 2003/11/EC (BFR)	Yes
EU Directive 2011/65/EU (RoHS 2)	Yes
EU Directive 2012/19/EU (WEEE)	Yes
EU Directive 2015/863/EU (RoHS 2 amendment)	Yes
EU Directive Compliance	EU Directive 2003/11/EC (BFR)
EU CE Mark	Yes
