Product Number: 73003W

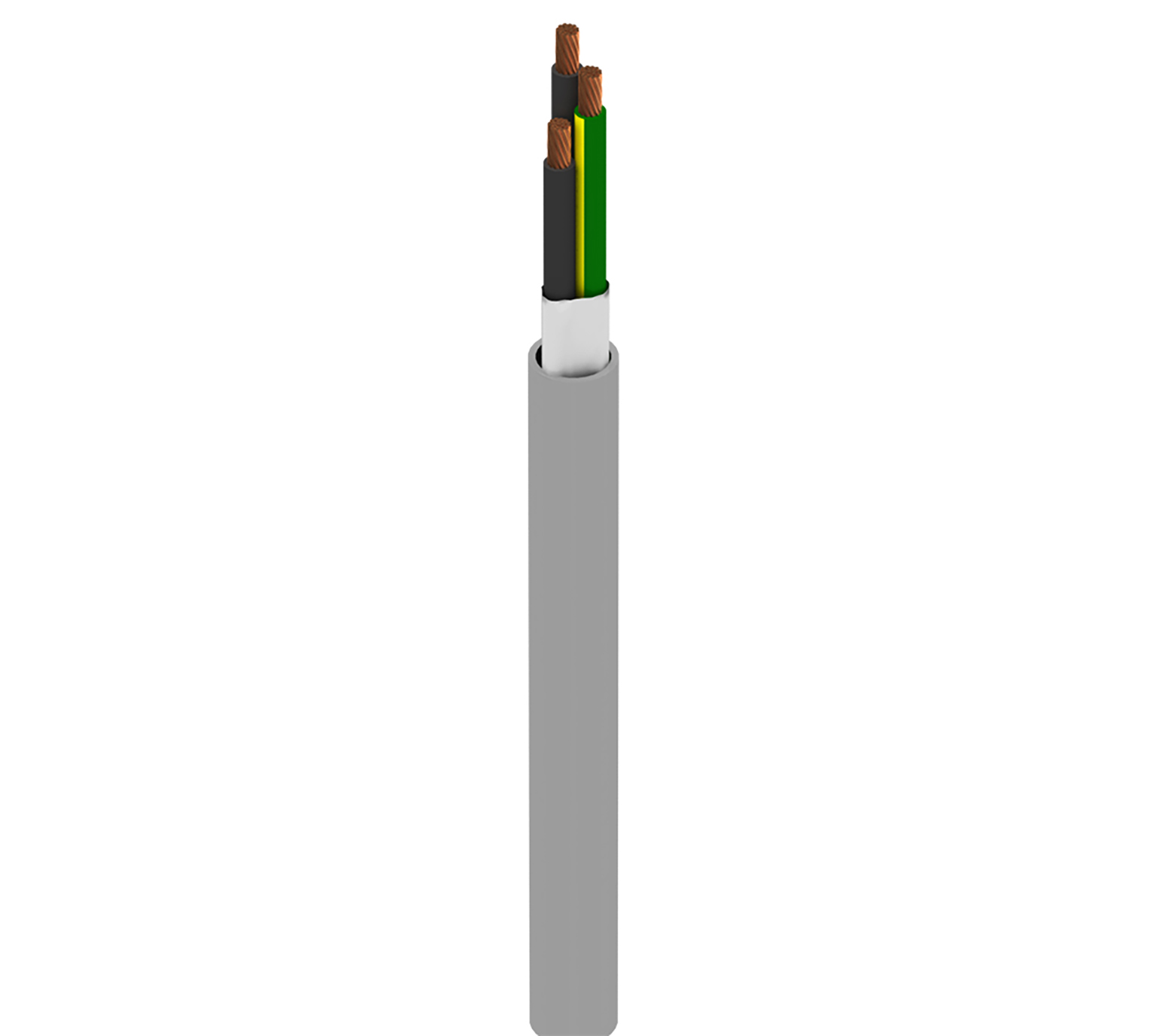

MachFlexTM, 3 C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K

Name: Belden 73003W
Brand: Belden
SKU: 73003W

MachFlexTM for Moderate Flex, 3 Conductor 20AWG (10x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K

Ships from and sold by A5 IT.

Specifications

Suitable Applications	Robotics, Robot, Continuous Flex

Overall Cable Diameter (Nominal)	0.251 in (6.38 mm)

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	20	10x30	BC - Bare Copper
Ground	1	20	10x30	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.081 in (2.1 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.022 in (0.56 mm)	0.081 in (2.1 mm)	Yellow/Green

Shield Type	No Shield
Material	No Shield

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Conductor(s)	10.7 Ohm/1000ft	28 pF/ft (92 pF/m)	8 Amps per Conductor at 30oC
Ground Wire	10.6 Ohm/1000ft (34.8 Ohm/km)

UL Voltage Rating	600 V

Max. Pull Tension	23.6 lbs (10.7 kg)
Bulk Cable Weight	62 lbs/1000ft

UL Temperature	90°C
Operating	-40°C To 90°C (Static), -5°C To 90°C (Flexing)

Flexing Min.	1.3 in (33 mm)

Environmental Suitability	Oil Resistance
AWM Compliance	AWM 2587, AWM I/II A/B
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
