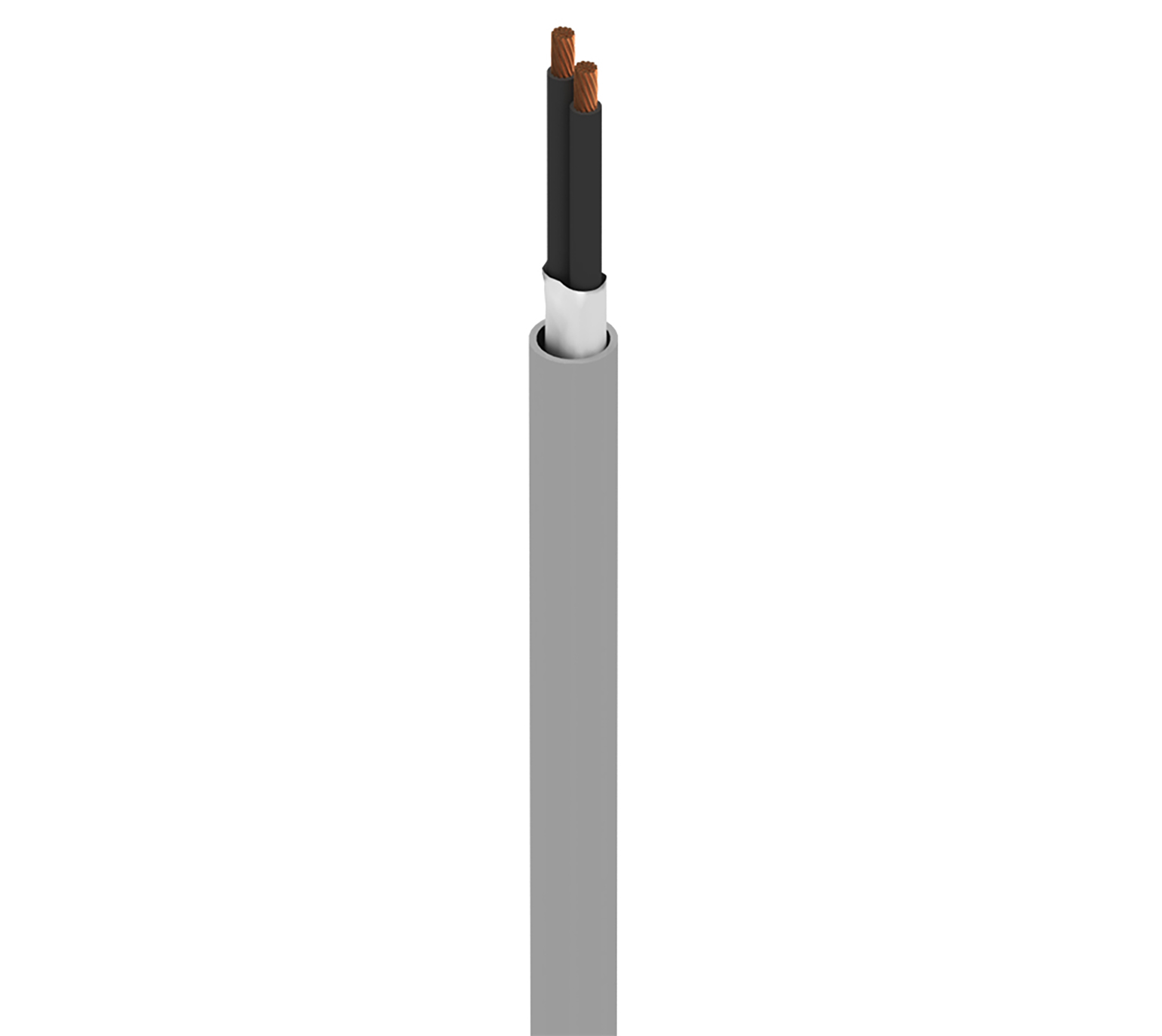

MachFlexTM, 2 C #20 Str BC, PVC Ins, PVC Jkt, AWM 2587 CLASS K
MachFlexTM for Moderate Flex, 2 Conductor 20AWG (10x30) Bare Copper, PVC Insulation, PVC Outer Jacket, AWM 2587 CLASS K
- Availability
- Global
- Status
- Active
- Orderable items
- 3
Part numbers
73002W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | UPC | Order |
|---|---|---|---|---|
| 73002W 008100 | Gray | Reel | 612825408956 | Order online |
| 73002W 0081000 | Gray | Reel | 612825408963 | Order online |
| 73002W 008500 | Gray | Reel | 612825408970 | Order online |
Specifications
Product Overview
| Suitable Applications | Robotics, Robot, Continuous Flex |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 0.238 in |
|---|
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 20 AWG |
| Stranding | 10x30 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.022 in (0.56 mm) |
| Nom. Insulation Diameter | 0.081 in mm |
| Color Code | Black and Numbered |
Outer Shield
| Material | No Shield |
|---|
Outer Jacket
| Separator | Paper Tape |
|---|---|
| Material | PVC - Polyvinyl Chloride |
| Nom. Thickness | 0.035 in (0.89 mm) |
| Nom. Diameter | 0.238 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | 10.7 Ohm/1000ft |
|---|---|
| Nom. Capacitance Cond-to-Cond | 28 pF/ft (92 pF/m) |
| Nom. Characteristic Impedence | 84 Ohm |
Voltage
| UL Voltage Rating | 600 V |
|---|
Mechanical Characteristics
| Max. Pull Tension | 15.7 lbs (7.12 kg) |
|---|---|
| Bulk Cable Weight | 50 lbs/1000ft |
Temperature
| UL Temperature | 90°C |
|---|---|
| Operating | -40°C To 90°C (Static), -5°C To 90°C (Flexing) |
Bend Radius
| Stationary Min. | 2.38 in (60.5 mm) |
|---|---|
| Installation Min. | 2.38 in |
| Flexing Min. | 1.2 in (30 mm) |
Standards and Compliance
| Environmental Suitability | Oil Resistance |
|---|---|
| AWM Compliance | AWM 2587, AWM I/II A/B |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
History
| Update and Revision | Revision Number: 0.141 Revision Date: 03-05-2026 |
|---|
