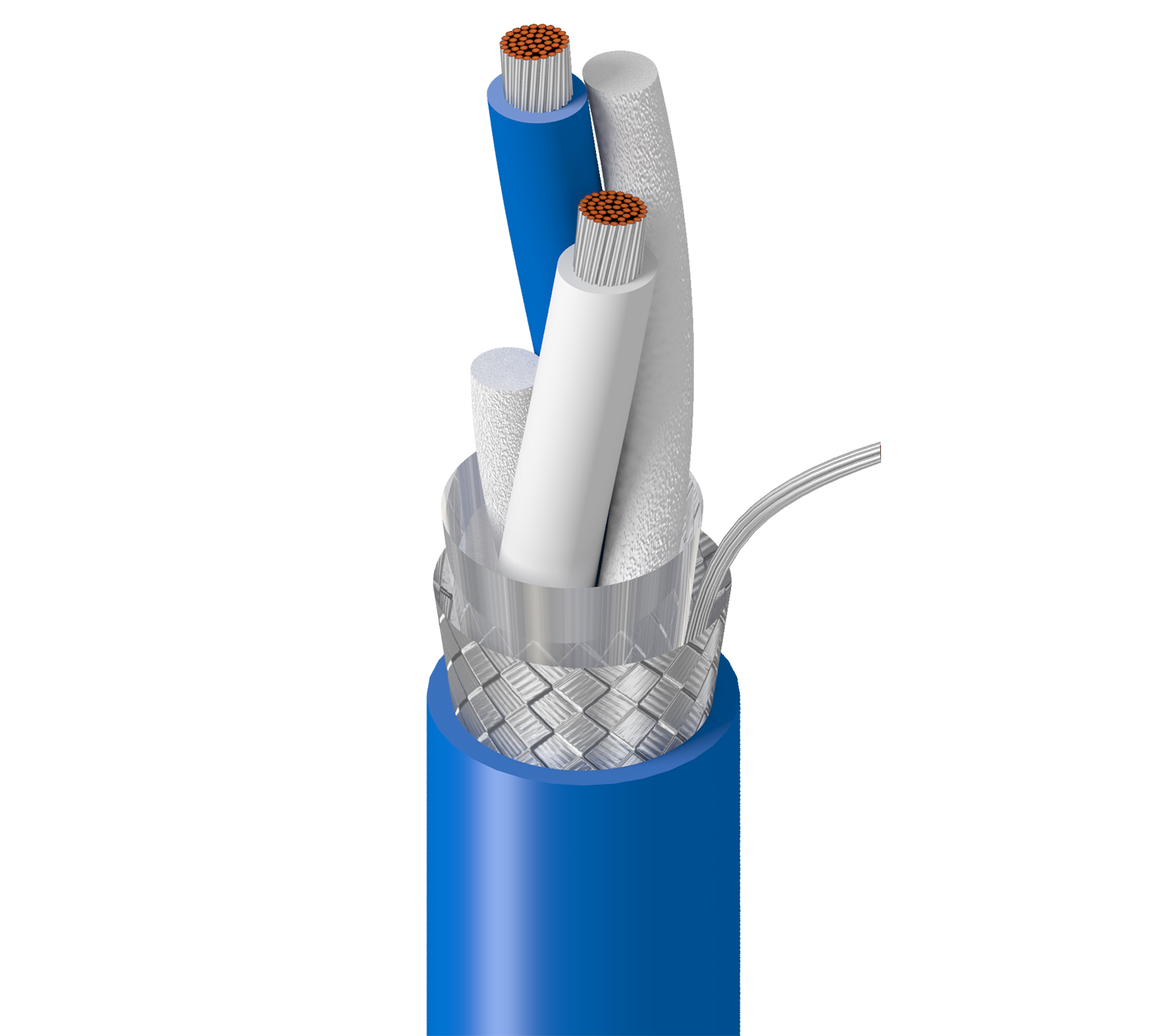

MachFlexTM, 1 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM
MachFlexTM for High Flex, 1 Pair 24AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
7205A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Length | UPC | Footnote | Order |
|---|---|---|---|---|---|---|
| 7205A X4P1000 | Green X4P | Reel | 1,000 ft | 612825182757 | C | Order online |
Specifications
Product Overview
| Suitable Applications | Flex Data, RS232, RS422 |
|---|
Construction Details
Conductor
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 24 AWG |
| Stranding | 41x40 |
| Material | BC - Bare Copper |
Insulation
| Element | Conductor(s) |
|---|---|
| Material | PE - Polyethylene (Foam) |
| Nom. Insulation Diameter | 0.0555 in (1.41 mm) |
| Color Code | White & Blue |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 85% |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nom. Thickness | 0.045 in (1.1 mm) |
| Nom. Diameter | 0.232 in (5.89 mm) |
Electrical Characteristics
| Nom Outer Shield DCR | 3.59 Ohm/1000ft (11.8 Ohm/km) |
|---|
Electricals
| Nom. Capacitance Cond-to-Cond | 14 pF/ft (46 pF/m) |
|---|---|
| Nom. Velocity of Prop. | 72% |
| Max. Current | 2 Amp per Conductor at 30oC |
Voltage
| UL Voltage Rating | 300 V RMS |
|---|
Mechanical Characteristics
| Max. Pull Tension | 11 lbs (5.0 kg) |
|---|---|
| Bulk Cable Weight | 33.4 lbs/1000ft (49.7 kg/km) |
Temperature
| UL Temperature | 60°C |
|---|---|
| Operating | -20°C To +60°C |
Bend Radius
| Installation Min. | 2.32 in (58.9 mm) |
|---|---|
| Flexing Min. | 2.32 in |
Standards and Compliance
| Flammability / Reaction to Fire | UL1685 UL Loading |
|---|---|
| NEC / UL Compliance | Article 800, CM |
| CEC / C(UL) Compliance | CM. |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | RS Type: 232/485 |
Product Notes
| Notes | 1 million flex cycles based on proper installation in a C-track cable guide. |
|---|
History
| Update and Revision | Revision Number: 0.632 Revision Date: 03-10-2026 |
|---|---|
| Footnote | C - CRATE REEL PUT-UP. |
