Product Number: 7201A

MachFlexTM, 2 Pr #24 Str BC, PO Ins, OS+TC Brd, PVC Jkt, CM

Name: Belden 7201A
Brand: Belden
SKU: 7201A

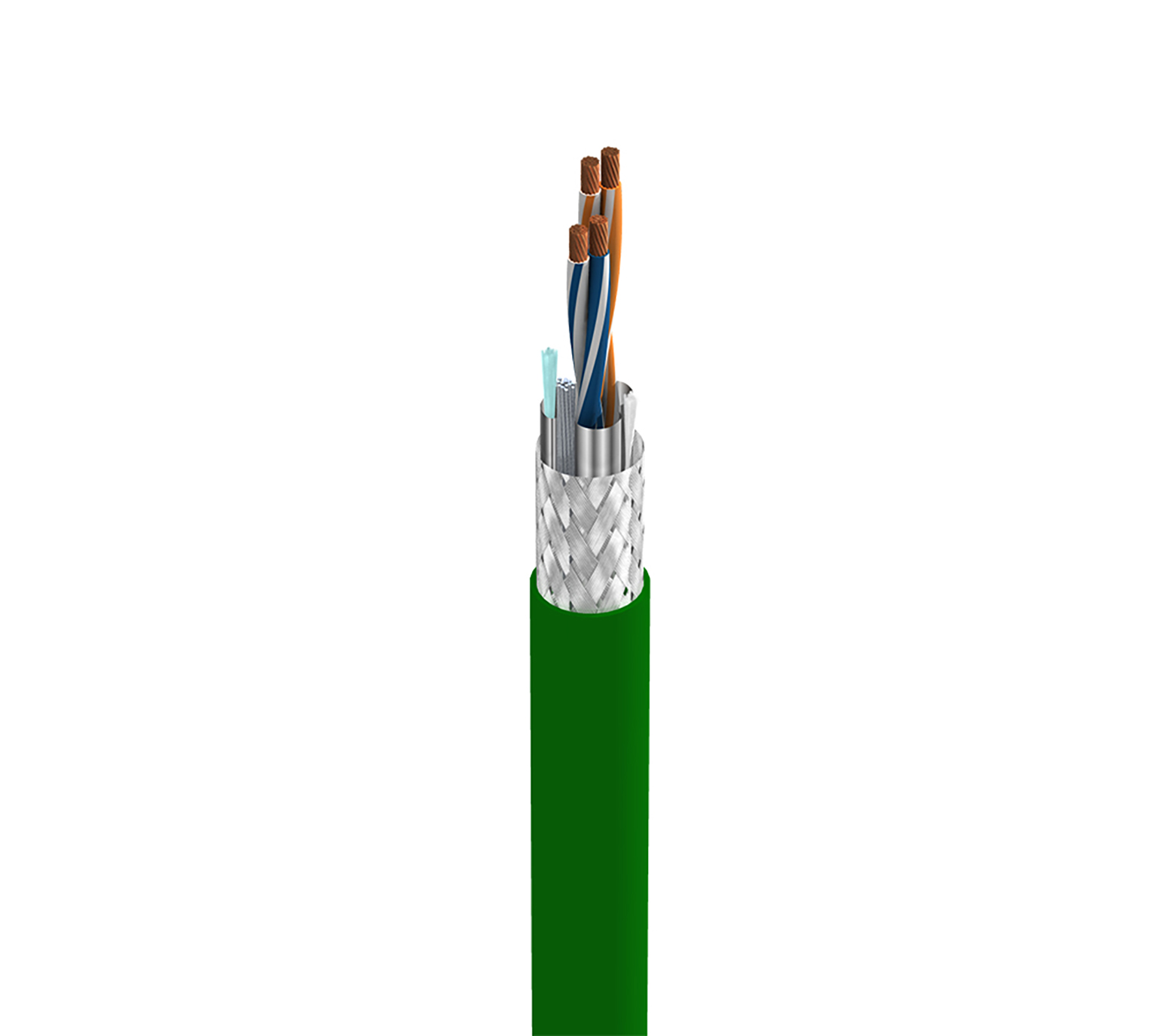

MachFlexTM for High Flex, 2 Pair 24AWG (41x40) Bare Copper, PO Insulation, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, PVC Outer Jacket, CM

Ships from and sold by A5 IT.

Part numbers

7201A is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7201A X4P500	Green X4P	Reel	500 ft	612825182702	C	Order online
7201A X4P1000	Green X4P	Reel	1,000 ft	612825182696	C	Order online

Suitable Applications	Flex Data, RS232, RS485

Overall Cable Diameter (Nominal)	0.322 in

Element	Pair(s)
Material	PE - Polyethylene (Foam)
Nom. Thickness	0.0115
Nom. Insulation Diameter	0.0555 in (1.41 mm)
Color Code	White/Blue & Blue/White, Orange/ White & White/Orange

Shield Type	Material	Coverage	Drainwire Type
Tape	Bi-Laminate (Alum+Poly)	100%	24 AWG (41x40) TC
Braid	Tinned Copper (TC)	89%

Nom Outer Shield DCR	2.83 Ohm/1000ft (9.28 Ohm/km)

Nom. Conductor DCR	27.8 Ohm/1000ft
Nom. Capacitance Cond-to-Cond	15 pF/ft (49 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	26 pF/ft (85 pF/m)
Nom. Velocity of Prop.	72%
Max. Current	1.6 Amps per Conductor at 30oC

UL Voltage Rating	300 V

Max. Pull Tension	87 lbs (39 kg)
Bulk Cable Weight	56 lbs/1000ft

UL Temperature	60°C
Operating	-20°C to +60°C

Stationary Min.	3.22 in (81.8 mm)
Installation Min.	3.22 in

Environmental Suitability	Indoor, Oil Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading
NEC / UL Compliance	Article 800, CM
CEC / C(UL) Compliance	CM.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	RS Type: 232/485
