Product Number: 7129W

MachFlexTM, 24+1G C #16 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

Name: Belden 7129W
Brand: Belden
SKU: 7129W

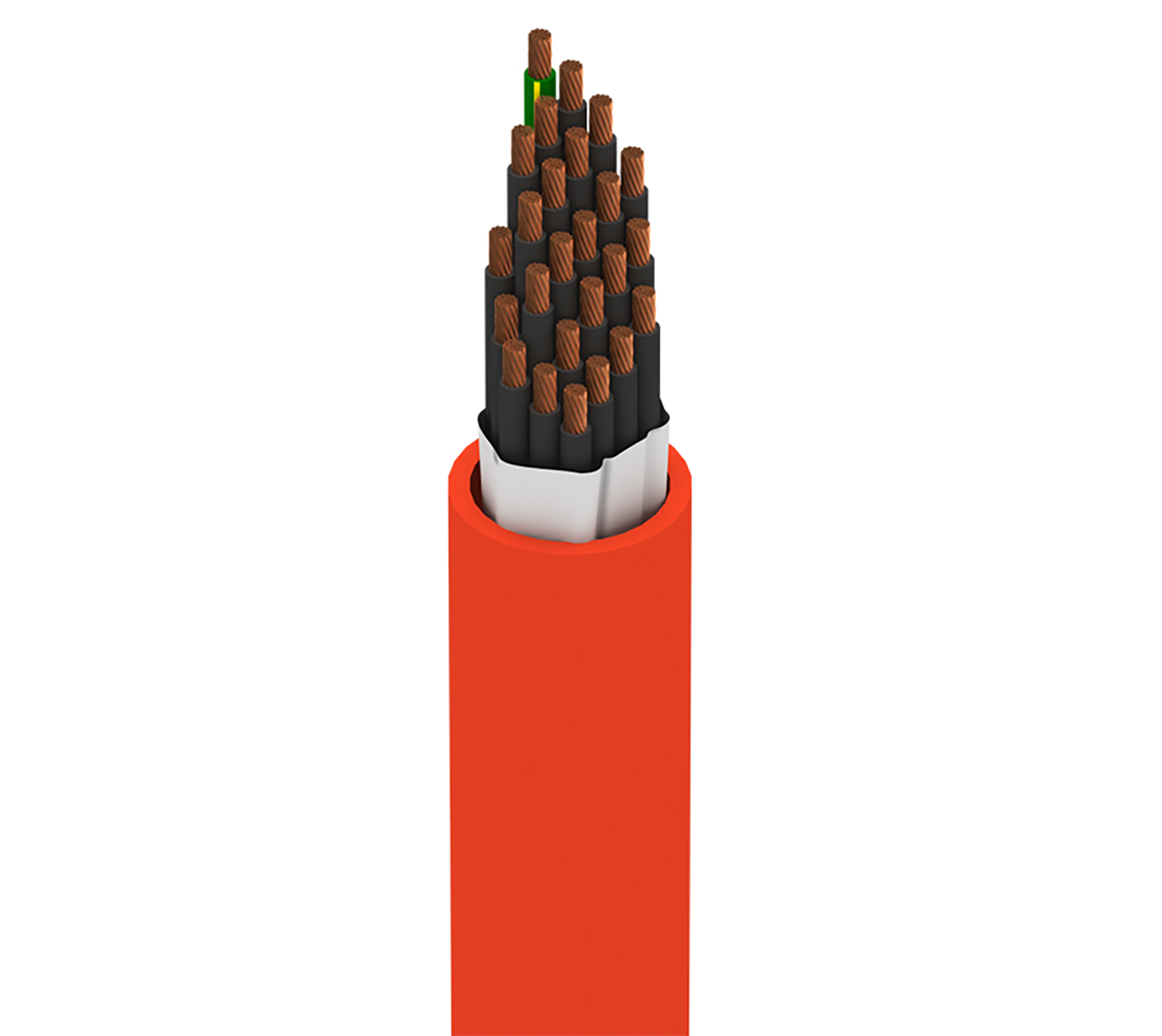

MachFlexTM for High Flex, 24+1G Conductor 16AWG (168(7x24) x38) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Ships from and sold by A5 IT.

Part numbers

7129W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7129W 003250	Orange	Reel	250 ft	612825182467	C	Order online
7129W 0031000	Orange	Reel	1,000 ft	612825182450	C	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Overall Cable Diameter (Nominal)	0.8 in

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	24	16 AWG	168x38	BC - Bare Copper
Ground Wire	1	16 AWG	168x38	BC - Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)	0.109 in (2.77 mm)	Black and Numbered
Ground Wire	PVC/Nylon - Polyvinyl Chloride + Nylon	0.021 in (0.53 mm)	0.109 in (2.77 mm)	Green/Yellow

Material	No Shield

Separator	non-Woven Tape
Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.8 in

Element	Nom. Conductor DCR	Max. Current
Conductor(s)	4.18 Ohm/1000ft	11.4 Amps per Conductor at 30oC
Ground Wire	4.45 Ohm/1000ft (14.6 Ohm/km)	30.4 Amps per Conductor at 30oC

UL Voltage Rating	1000 V (WTTC), 600 V (TC-ER)

Max. Pull Tension	995.7 lbs (451.6 kg)
Bulk Cable Weight	392 lbs/1000ft

UL Temperature	UL : 90°C Dry, 75°C Wet; AWM 20328 : 105°C
Operating	-40°C To 105°C

Stationary Min.	3.2 in (81 mm)
Installation Min.	4 in

Environmental Suitability	Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance	Article 336
AWM Compliance	AWM 20328, AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
