Product Number: 7127W

MachFlexTM, 11+1G C #16 Str BC, PVC-NYL Ins, TPE Jkt, 1000V WTTC, 600V TC-ER

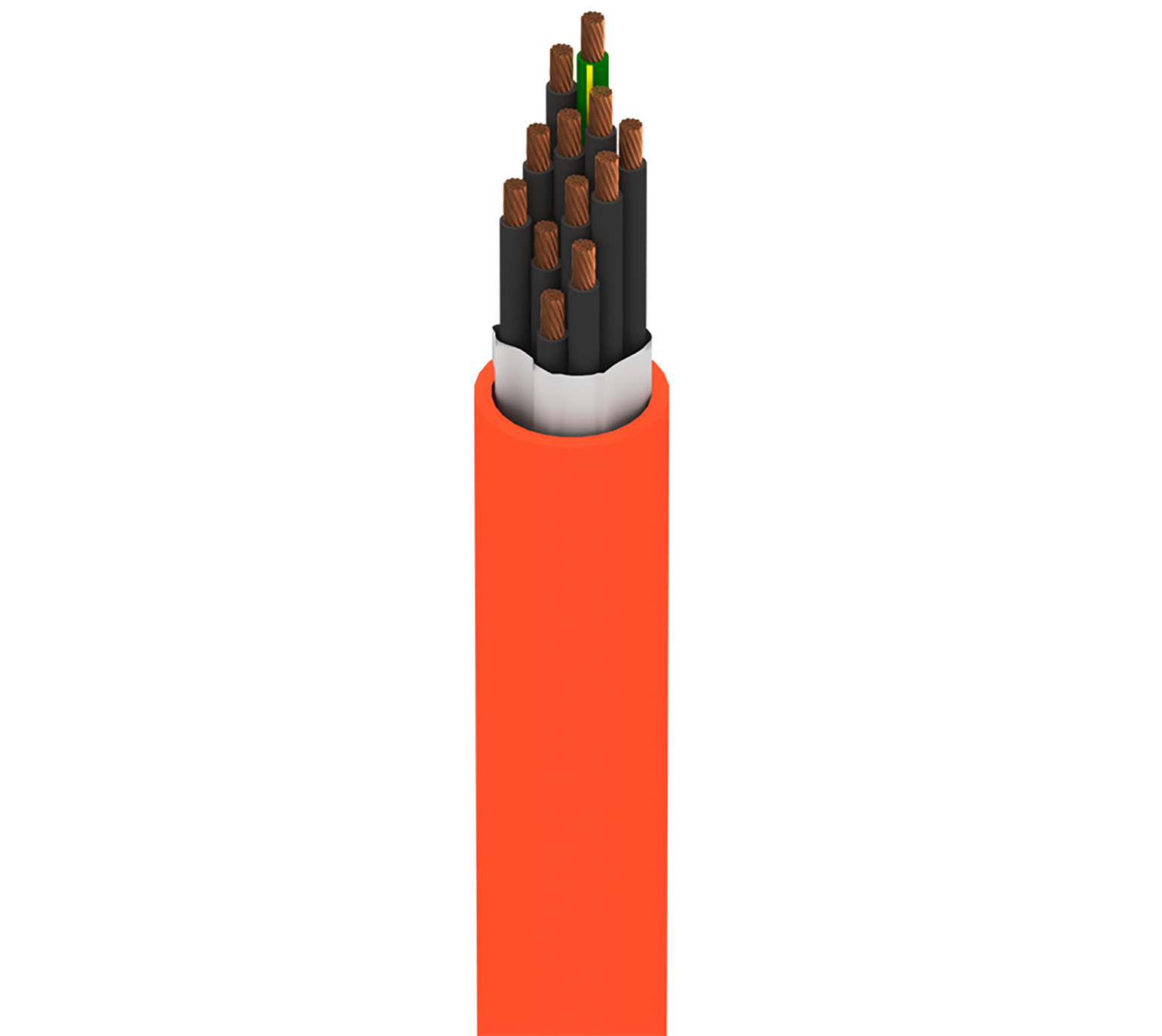

Name: Belden 7127W
Brand: Belden
SKU: 7127W

MachFlexTM for High Flex, 11+1G Conductor 16AWG (168(7x24) x38) Bare Copper, PVC-NYL Insulation, TPE Outer Jacket, 1000V WTTC, 600V TC-ER

Ships from and sold by A5 IT.

Part numbers

7127W is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7127W 003250	Orange	Reel	250 ft	612825182436	C	Order online
7127W 0031000	Orange	Reel	1,000 ft	612825182429	C	Order online
7127W 0035000	Orange	Reel	5,000 ft	612825182443	—	Order online

Suitable Applications	Robotics, Robot, Continuous Flex

Element	Size	Stranding	Material
	16	163x38	BC - Bare Copper
Ground Wire	16	163x38	BC - Bare Copper

Material	PVC/Nylon - Polyvinyl Chloride + Nylon
Nom. Insulation Diameter	0.109 in (2.77 mm)
Color Code	Black and Numbered, Green/Yellow

Material	No Shield

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.063 in (1.6 mm)
Nom. Diameter	0.582 in

Nom. Conductor DCR	5.7 Ohm/1000ft (19 Ohm/km)

UL Voltage Rating	1000 V RMS, 600 V RMS

Max. Pull Tension	456 lbs (207 kg)
Bulk Cable Weight	199 lbs/1000ft (296 kg/km)

UL Temperature	75°C Dry, 90°C Wet

Flexing Min.	5.8 in

Environmental Suitability	Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202
NEC / UL Compliance	TC-ER, WTTC
AWM Compliance	AWM 20328, AWM I/II A/B
CEC / C(UL) Compliance	CIC, TC.
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
