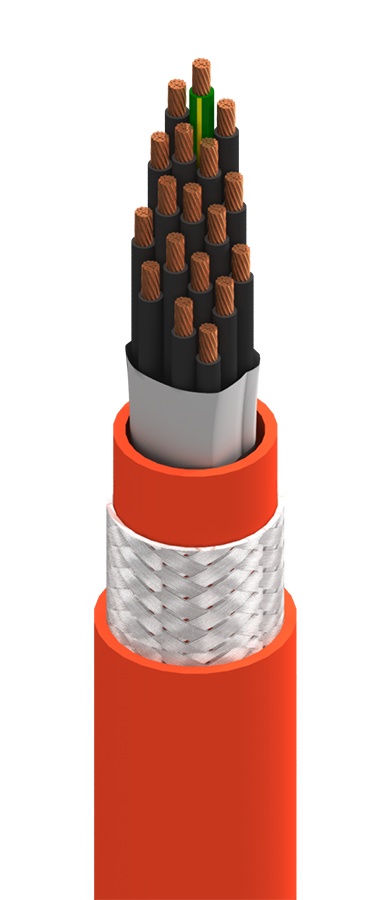

MachFlexTM, 17+1G C #20 Str BC, PVC Ins, TPE Jkt, PLTC
MachFlexTM for High Flex, 17+1G Conductor 20AWG (74x38) Bare Copper, PVC Insulation, TPE Outer Jacket, PLTC
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | Robotics, Robot, Continuous Flex |
|---|
Physical Characteristics (Overall)
| Conductor Count | 18 |
|---|
Conductor
| AWG | 20 |
|---|---|
| Stranding | 74x38 |
Insulation
| Material | PVC - Polyvinyl Chloride |
|---|
Outer Shield
| Material | Tinned Copper (TC) |
|---|
Outer Jacket
| Material | TPE - Thermoplastic Elastomer |
|---|
History
| Update and Revision | Revision Number: 0.80 Revision Date: 05-31-2024 |
|---|
