Product Number: 7106WS

MachFlexTM, 11+1G C #20 Str BC, PVC Ins, OA TC Brd, TPE Jkt, TPE Jkt, PLTC

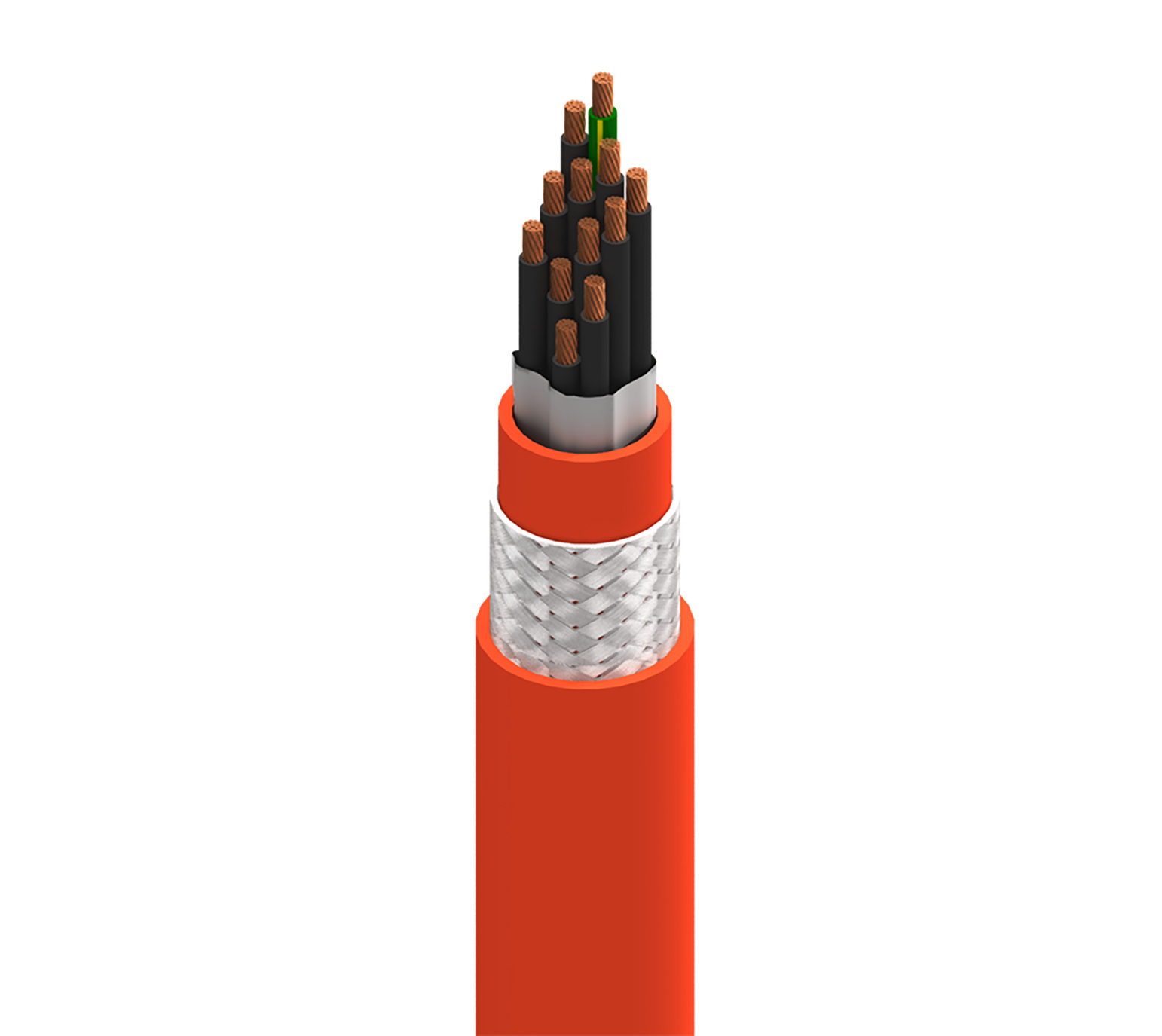

MachFlexTM for High Flex, 11+1G Conductor 20AWG (74x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, PLTC

Availability: Global
Status: Active
Orderable items: 3

Ships from and sold by A5 IT.

Part numbers

7106WS is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Footnote	Order
7106WS 003250	Orange	Reel	250 ft	612825182047	C	Order online
7106WS 0031000	Orange	Reel	1,000 ft	612825182030	C	Order online
7106WS 0035000	Orange	Reel	5,000 ft	612825182054	—	Order online

Specifications

Product Overview

Suitable Applications	Robotics, Robot, Continuous Flex

Construction Details

Conductor

Element	Size	Stranding	Material
	20	74x38	BC - Bare Copper
Ground Wire	20	74x38	BC - Bare Copper

Insulation

Material	PVC - Polyvinyl Chloride
Nom. Thickness	0.015 in (0.38 mm)
Color Code	Black and Numbered 1, Black and Numbered 2, Black and Numbered 3, Black and Numbered 4, Black and Numbered 5, Black and Numbered 6, Black and Numbered 7, Black and Numbered 8, Black and Numbered 9, Black and Numbered 10, Black and Numbered 11, Green/Yellow

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)
Coverage	85%

Inner Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.025 in (0.64 mm)
Nom. Diameter	0.361 in (9.17 mm)

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.053 in (1.3 mm)
Nom. Diameter	0.489 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	8.8 Ohm/1000ft (29 Ohm/km)

Voltage

UL Voltage Rating	300 V RMS, 600 V RMS

Mechanical Characteristics

Max. Pull Tension	194 lbs (88.0 kg)
Bulk Cable Weight	141 lbs/1000ft (210 kg/km)

Temperature

UL Temperature	90°C
Operating	-50°C (-5°C Flexing) To 90°C

Bend Radius

Flexing Min.	4.9 in

Standards and Compliance

Environmental Suitability	Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire	UL1685 UL Loading, IEEE 1202
NEC / UL Compliance	TC
AWM Compliance	AWM 20327, AWM I/II A/B
European Directive Compliance	EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
