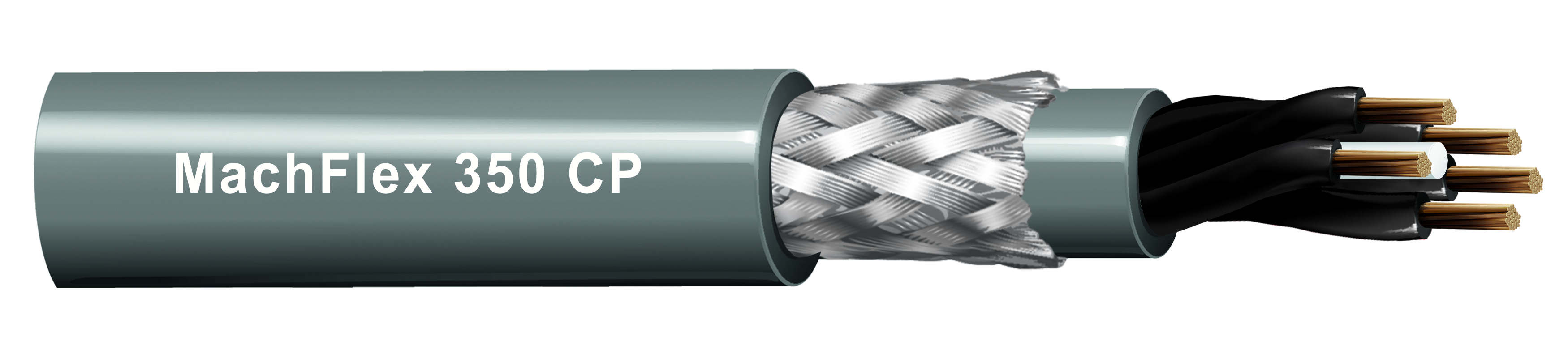

Product Number: 3X2.5CP

MachFlexTM 350CP, 3C 2.5 mm2 Str BC, PVC Ins, PVC Inner Jkt, TCBS, PUR Outer Jkt

MachFlexTM 350CP Control Cable, 3 Conductor 2.5 mm2 Stranded Bare Copper, PVC Insulation, PVC Inner Jacket, Tinned Copper Braid Shield, PUR Outer Jacket

Availability: EMEA | Asia Pacific
Status: Active
Orderable items: 9

Ships from and sold by A5 IT.

Part numbers

3X2.5CP is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
3X2.5CP 010100M	Black	100 m	Order online
3X2.5CP 010200M	Black	200 m	Order online
3X2.5CP 010300M	Black	300 m	Order online
3X2.5CP 006100M	Blue	100 m	Order online
3X2.5CP 006200M	Blue	200 m	Order online
3X2.5CP 006300M	Blue	300 m	Order online
3X2.5CP G8U100M	Gray, RAL 7001	100 m	Order online
3X2.5CP G8U200M	Gray, RAL 7001	200 m	Order online
3X2.5CP G8U300M	Gray, RAL 7001	300 m	Order online

Specifications

Product Overview

Suitable Applications

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. PUR jacket provides with excellent abrasion protection and chemical resistance. Tinned copper braid shielding version will ensure the cable with good noise immunity.

Construction Details

Overall Cable Diameter (Nominal)	11 mm (0.43 in)

Conductor

Element	Conductor(s)
No. of Elements	3
Size	2.5 mm2
Stranding	Stranded
Stranding Class	Class 5
Material	BC - Bare Copper

Insulation

Element	Conductor(s)
Material	PVC - Polyvinyl Chloride
Color Code	Black #1, Black #2, Black #3

Outer Shield

Shield Type	Braid
Material	Tinned Copper (TC)

Inner Jacket

Material	PVC - Polyvinyl Chloride

Outer Jacket

Material	PUR - Polyurethane

Electrical Characteristics

Voltage

Voltage Rating	300/500 V (Max. Operating Voltage), 4000 V (Testing Voltage)

Mechanical Characteristics

Bulk Cable Weight	203 kg/km (136 lbs/1000ft)

Temperature

Operating	-20°C to +70°C (Occasional movement)
Installation	‐40°C to +80°C (Fixed installation)

Bend Radius

Installation Min.	66 mm (2.6 in)
Flexing Min.	220 mm

Standards and Compliance

Environmental Suitability	Sunlight Resistance, UV Resistance, Oil Resistance - 70°C x 4h
ISO/IEC Compliance	IEC 60228
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2)
Other Standard Compliance(s)	EN 50525-2-51, VDE 0285, VDE 0295, EN 50363-3, EN 50363-10-2, BS 6360
