Product Number: 3G4SH

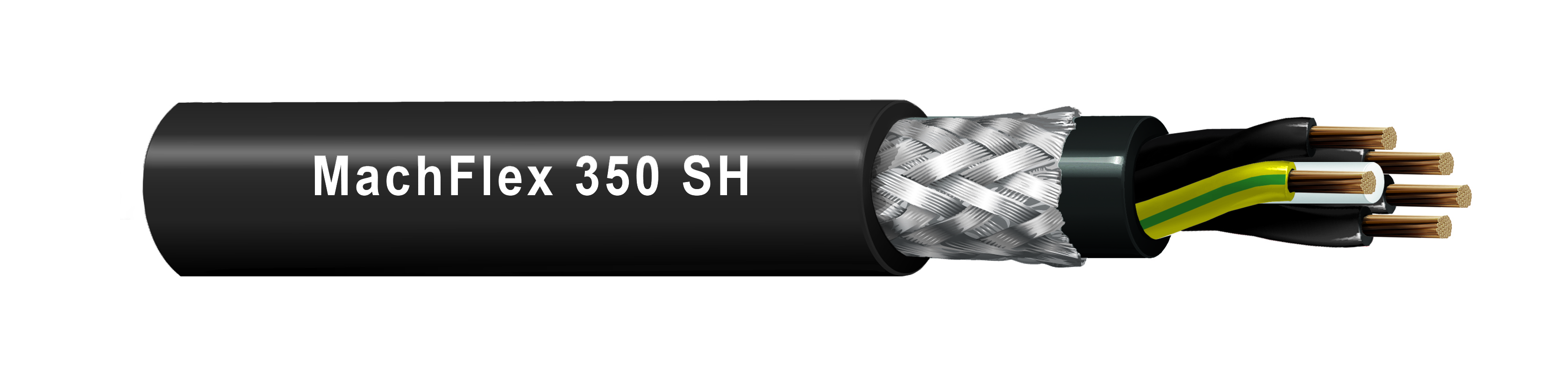

MachFlexTM 350 SH, 2C + 1G 4 mm2 Str BC, PP Ins, LSZH Inner Jkt, GSW Brd, LSZH Outer Jkt

MachFlexTM 350 SH Control Cable 2 Conductor + 1 Ground 4 mm2 Stranded Bare Copper, PP Insulation, LSZH Inner Jacket, Galvanized Steel Wire Braiding Armor, LSZH Outer Jacket

Availability: Global
Status: Active
Orderable items: 9

Ships from and sold by A5 IT.

Part numbers

3G4SH is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Length	Order
3G4SH 010100M	Black	100 m	Order online
3G4SH 010200M	Black	200 m	Order online
3G4SH 010300M	Black	300 m	Order online
3G4SH 006100M	Blue	100 m	Order online
3G4SH 006200M	Blue	200 m	Order online
3G4SH 006300M	Blue	300 m	Order online
3G4SH G8U100M	Gray, RAL 7001	100 m	Order online
3G4SH G8U200M	Gray, RAL 7001	200 m	Order online
3G4SH G8U300M	Gray, RAL 7001	300 m	Order online

Specifications

Product Overview

Suitable Applications

Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. Galvanized steel wire braid armor provides excellent mechanical protection. This LSZH material emits limited smoke and no halogen when exposed to high sources of heat. It can considerably reduce the amount and density of the smoke, toxic and corrosive gas emitted during a fire, enable easier evacuation as well as safer firefighting operations.

Construction Details

Overall Cable Diameter (Nominal)	12.6 mm (0.496 in)

Conductor

Element	No. of Elements	Size	Stranding	Stranding Class	Material
Conductor(s)	2	4 mm2	Stranded	Class 5	BC - Bare Copper
Ground	1	4 mm2	Stranded	Class 5	BC - Bare Copper

Insulation

Element	Material	Color Code
Conductor(s)	PP - Polypropylene	Black #1, Black #2
Ground	PP - Polypropylene	Yellow/Green

Inner Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)

Armor

Armor Type & Material	SWB - Steel Wire Braid Armor

Outer Jacket

Material	LSZH - Low Smoke Zero Halogen (Flame Retardant)

Electrical Characteristics

Voltage

Voltage Rating	300 / 500 V (Max. Operating Voltage), 4000 V (Testing Voltage)

Mechanical Characteristics

Bulk Cable Weight	268 kg/km (180 lbs/1000ft)

Temperature

Operating	-25°C to +70°C (Occasional movement)
Installation	-40°C to +80°C (Fixed installation)

Bend Radius

Installation Min.	75.6 mm (2.98 in)
Flexing Min.	252 mm

Standards and Compliance

Environmental Suitability	UV Resistance, Oil Resistance
Flammability / Reaction to Fire	IEC 60332-1-2, DIN VDE 0482‐332‐1‐2, DIN EN 60332‐1‐2
ISO/IEC Compliance	IEC 60228
CENELEC Compliance	EN 50290-2-22, EN 50290-2-27
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2)
Other Standard Compliance(s)	VDE 0295, IEC 60227-5, EN 50525-3-11, EN 61034-2, BS 6360
