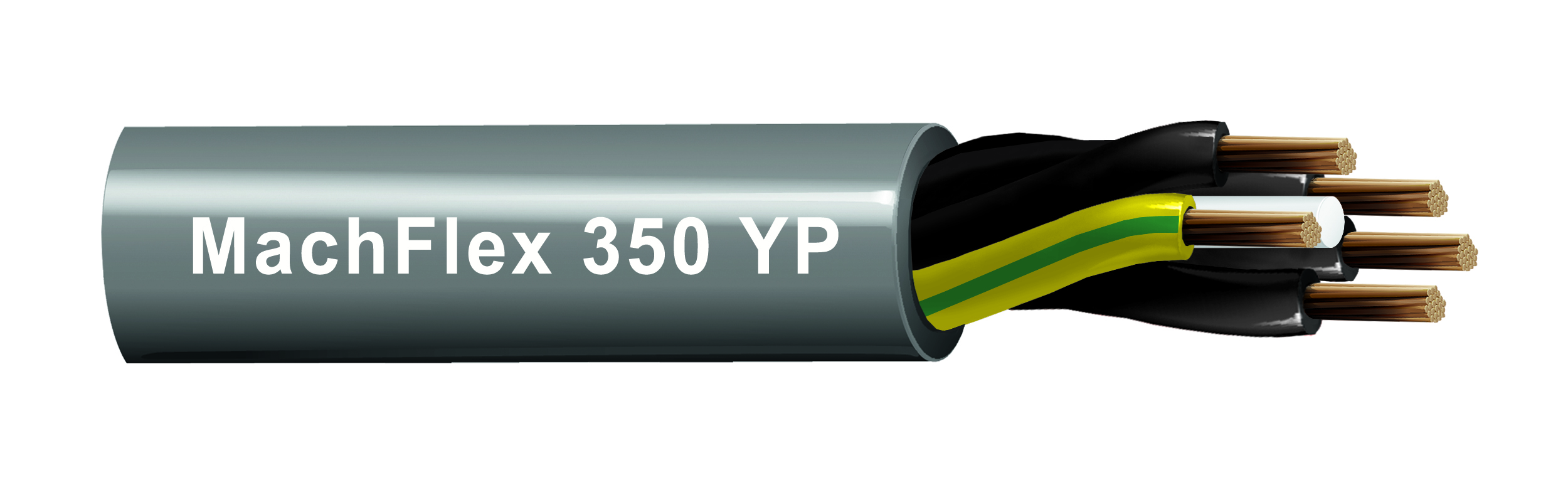

MachFlexTM 350YP, 2C+1G 35 mm2 Str BC, PVC Ins, PUR Outer Jkt
MachFlexTM 350YP Control Cable, 2 Conductor + 1 Ground 35 mm2 Stranded Bare Copper, PVC Insulation, PUR Outer Jacket
- Availability
- EMEA | Asia Pacific
- Status
- Active
- Orderable items
- 9
Part numbers
3G35P is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| 3G35P 010100M | Black | 100 m | Order online |
| 3G35P 010200M | Black | 200 m | Order online |
| 3G35P 010300M | Black | 300 m | Order online |
| 3G35P 006100M | Blue | 100 m | Order online |
| 3G35P 006200M | Blue | 200 m | Order online |
| 3G35P 006300M | Blue | 300 m | Order online |
| 3G35P G8U100M | Gray, RAL 7001 | 100 m | Order online |
| 3G35P G8U200M | Gray, RAL 7001 | 200 m | Order online |
| 3G35P G8U300M | Gray, RAL 7001 | 300 m | Order online |
Specifications
Product Overview
| Suitable Applications | Designed for applications which are installed in occasional flexing and fixed locations. Cable applications include precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. PUR jacket provides with excellent abrasion protection and chemical resistance. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 23.9 mm (0.941 in) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Stranding Class | Material |
|---|---|---|---|---|---|
| Conductor(s) | 2 | 35 mm2 | Stranded | Class 5 | BC - Bare Copper |
| Ground | 1 | 35 mm2 | Stranded | Class 5 | BC - Bare Copper |
Insulation
| Element | Material | Color Code |
|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | Black #1, Black #2 |
| Ground | PVC - Polyvinyl Chloride | Yellow/Green |
Outer Jacket
| Material | PUR - Polyurethane |
|---|
Electrical Characteristics
Voltage
| Voltage Rating | 300 / 500 V (Max. Operating Voltage), 4000 V (Testing Voltage) |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 1267 kg/km (851.4 lbs/1000ft) |
|---|
Temperature
| Operating | -20°C to +70°C (Occasional movement) |
|---|---|
| Installation | -40°C to +80°C (Fixed installation) |
Bend Radius
| Installation Min. | 95.6 mm (3.76 in) |
|---|---|
| Flexing Min. | 239 mm |
Standards and Compliance
| Environmental Suitability | Sunlight Resistance, UV Resistance, Oil Resistance - 70°C x 4h |
|---|---|
| ISO/IEC Compliance | IEC 60228 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2) |
| Other Standard Compliance(s) | EN 50525-2-51, VDE 0285, VDE 0295, EN 50363-3, EN 50363-10-2, BS 6360 |
Product Notes
| Notes | General Reference Standards : VDE 0207-363-3, DIN VDE 0207-363-10-2 |
|---|
History
| Update and Revision | Revision Number: 0.20 Revision Date: 09-07-2025 |
|---|
