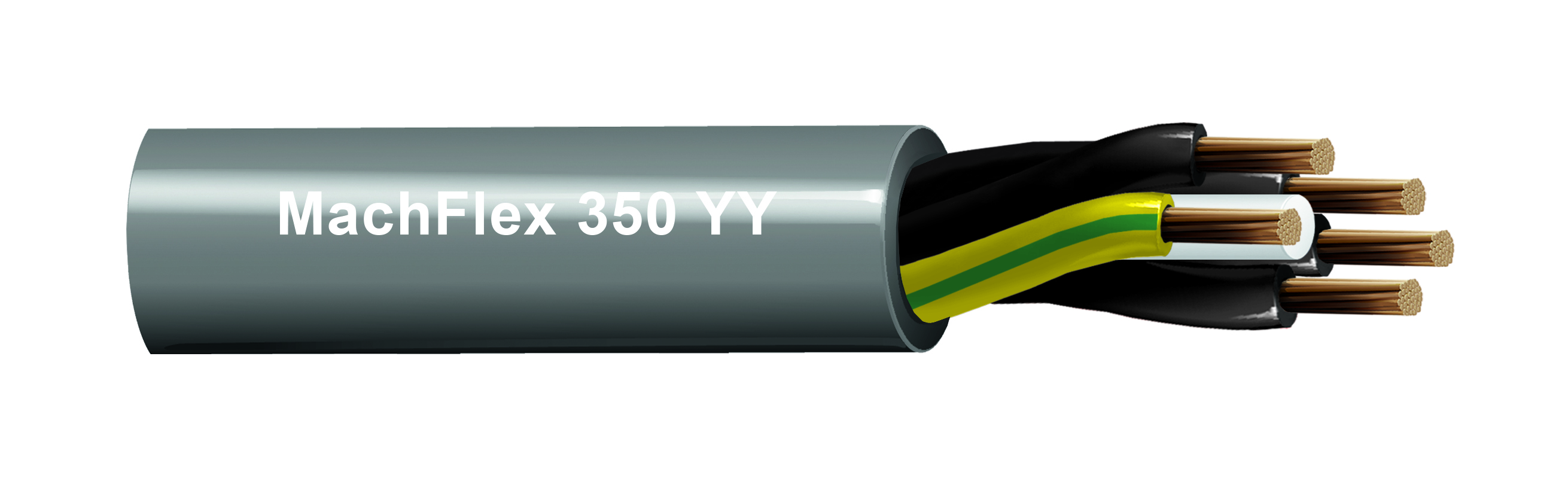

MachFlexTM 350YY, 2C+1G 10 mm2 Str BC, PVC Ins, PVC Jkt
MachFlexTM 350YY Control VDE Certified, 2 Conductor + 1 Ground 10 mm2 Stranded Bare Copper, PVC Insulation, PVC Jacket
- Availability
- Global
- Status
- Active
- Orderable items
- 6
Part numbers
3G10 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Length | Order |
|---|---|---|---|
| 3G10 010100M | Black, RAL 9004 | 100 m | Order online |
| 3G10 010200M | Black, RAL 9004 | 200 m | Order online |
| 3G10 010300M | Black, RAL 9004 | 300 m | Order online |
| 3G10 G8U100M | Gray, RAL 7001 | 100 m | Order online |
| 3G10 G8U200M | Gray, RAL 7001 | 200 m | Order online |
| 3G10 G8U300M | Gray, RAL 7001 | 300 m | Order online |
Specifications
Product Overview
| Suitable Applications | Applicable for occasional flexing or fixed installation connecting precision control sensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more. |
|---|
Construction Details
| Overall Cable Diameter (Nominal) | 14.8 mm (0.583 in) |
|---|
Conductor
| Element | No. of Elements | Size | Stranding | Stranding Class | Material |
|---|---|---|---|---|---|
| Conductor(s) | 2 | 10 mm2 | Stranded | Class 5 | BC - Bare Copper |
| Ground | 1 | 10 mm2 | Stranded | Class 5 | BC - Bare Copper |
Insulation
| Element | Material | Color Code |
|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | Black #1, Black #2 |
| Ground | PVC - Polyvinyl Chloride | Yellow/Green |
Outer Jacket
| Material | PVC - Polyvinyl Chloride |
|---|
Electrical Characteristics
Voltage
| Voltage Rating | 300/500 V (Max. Operating Voltage) |
|---|
Mechanical Characteristics
| Bulk Cable Weight | 447 kg/km (300 lbs/1000ft) |
|---|
Temperature
| Operating | -15°C to +70°C(Occasional movement) |
|---|---|
| Installation | -40°C to +80°C(Fixed installation) |
Bend Radius
| Installation Min. | 59.2 mm (2.33 in) |
|---|---|
| Flexing Min. | 148 mm |
Standards and Compliance
| Environmental Suitability | Indoor, Outdoor, Oil Resistance - EN 50290-2-22 (TM54) |
|---|---|
| Flammability / Reaction to Fire | IEC 60332-1-2, DIN VDE 0482‐332‐1‐2, DIN EN 60332‐1‐2 |
| Third Party Performance Verification | VDE Certification No. 40041970, VDE Registration No. 8770 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | VDE 0285-525-2-51, IEC 60227-5, EN 50525-2-51 |
History
| Update and Revision | Revision Number: 0.72 Revision Date: 09-07-2025 |
|---|
