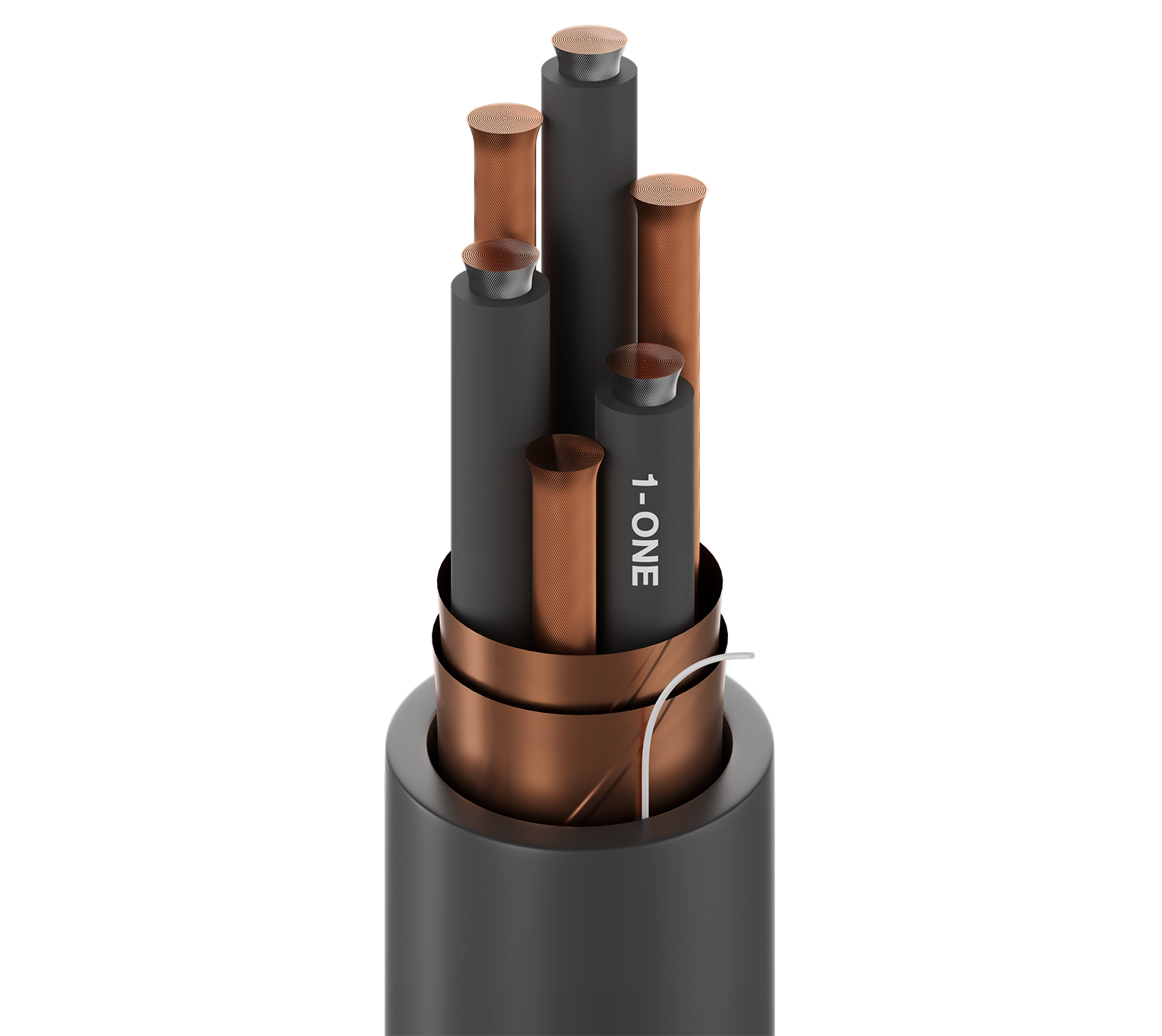

Product Number: 29531F

VFD 100% Gnd, 3C #3/0 Str TC XLPE Ins + #3/0 Symm. Seg. Gnd (3 of #4+) Str TC, CTS, Blk TPE Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC

Belden 100% Ground Extra Flexible VFD, 3 Conductor 3/0AWG (7x7x31x30) Tinned Copper XLPE Insulation M4 Color Code + 3/0AWG Symmetrical Segmented Ground (3 of 4AWG+) Tinned Copper Stranded in Continuous Contact with Overall Dual Copper Tape Helically Applied Shield, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

29531F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	Length	UPC	Order
29531F 0101000	Black	Reel	1,000 ft	612825373490	Order online
29531F 0102000	Black	Reel	2,000 ft	612825373506	Order online

Specifications

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas; Class 1 Division 2 Hazardous Locations

Construction Details

Overall Cable Diameter (Nominal)	1.620 in (41.15 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material	Notes
Conductor(s)	3	3/0 AWG	7x7x31x30	TC - Tinned Copper
Ground	3	4 AWG	7x60x30	TC - Tinned Copper	Segmented Grounds

Insulation

Element	Material	Nom. Thickness	Color Code
Conductor(s)	XLPE - Cross-Linked Polyethylene (Thermoset)	0.057 in (1.4 mm)	Black and Numbered
Ground	No Insulation

Outer Shield

Shield Type	Material	Coverage
Helical Tape	Bare Copper (BC)	100%
Helical Tape	Bare Copper (BC)	100%

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.083 in (2.1 mm)
Nom. Diameter	1.620 in (41.15 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Conductor(s)
Nom. Conductor DCR	0.067 Ohm/1000ft (0.22 Ohm/km)
Nom. Capacitance Cond-to-Cond	23 pF/ft (75 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	42 pF/ft (140 pF/m)
Nom. Characteristic Impedence	80 Ohm
Nom. Velocity of Prop.	55%
Max. Current	225 Amps per Conductor at 30oC (per NEC)

Voltage

UL Voltage Rating	1000 V (TC, WTTC, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC)

Mechanical Characteristics

Max. Pull Tension	7562 lbs (3430 kg)
Bulk Cable Weight	2373 lbs/1000ft (3531 kg/km)

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-40°C To +90°C

Bend Radius

Stationary Min.	8.1 in (210 mm)
Installation Min.	19.4 in (493 mm)
Flexing Min.	19.4 in (493 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL1685 UL Loading, FT4, 1202, 383 Vertical Tray Flame Test (70,000 BTU)
NEC / UL Compliance	Article 336, TC-ER, WTTC, XHHW-2, UL Flexible Motor Supply Cable
CEC / C(UL) Compliance	CIC, TC.
ICEA Compliance	S-95-658
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	P-07-KA070003-MSHA
