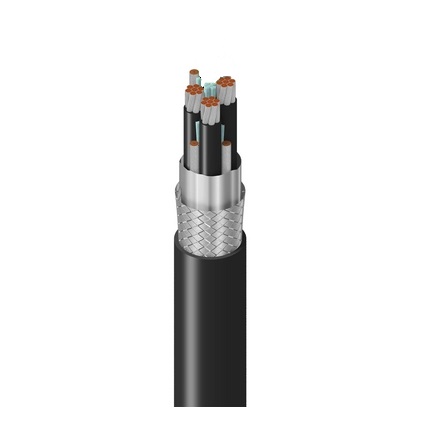

Product Number: 29505F

VFD 100% Gnd, 3C #6 Str TC XLPE Ins + #6 Symm. Seg. Gnd (3 of #10) Str TC, OS+TC Brd, Blk TPE Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC

Belden 100% Ground Extra Flexible VFD, 3 Conductor 6AWG (7x37x30) Tinned Copper XLPE Insulation M4 Color Code + 6AWG Symmetrical Segmented Ground (3 of 10AWG) Tinned Copper Stranded, Overall Beldfoil®+Tinned Copper Braid(85%) Shield, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

29505F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
29505F 0101000	Black	Reel	612825373186	Order online
29505F 0103500	Black	Reel	612825373193	Order online

Specifications

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas

Construction Details

Overall Cable Diameter (Nominal)	0.961 in (24.4 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material	Notes
Conductor(s)	3	6 AWG	7x37x30	TC - Tinned Copper
Ground	3	6 AWG	105x30	TC - Tinned Copper	Segmented Grounds

Insulation

Element	Material	Nom. Thickness	Color Code
Conductor(s)	XLPE - Cross-Linked Polyethylene (Thermoset)	0.062 in (1.6 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.062 in (1.6 mm)	Green/Yellow Stripe

Outer Shield

Shield Type	Material	Coverage
Tape	Tri-Laminate (Alum+Poly+Alum)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.095 in (2.4 mm)
Nom. Diameter	0.961 in (24.4 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Conductor(s)
Nom. Conductor DCR	0.393 Ohm/1000ft (1.29 Ohm/km)
Nom. Capacitance Cond-to-Cond	40 pF/ft (130 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	72 pF/ft (240 pF/m)
Nom. Characteristic Impedence	60 Ohm
Nom. Velocity of Prop.	55%
Max. Current	75 Amps per Conductor at 30oC (per NEC)

Voltage

UL Voltage Rating	1000 V (TC, WTTC, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC)

Mechanical Characteristics

Max. Pull Tension	1539 lbs (698.1 kg)
Bulk Cable Weight	675 lbs/1000ft (1000 kg/km)

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-40°C To +90°C

Bend Radius

Stationary Min.	4.8 in (120 mm)
Installation Min.	11.5 in (292 mm)
Flexing Min.	11.5 in (292 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL1685 UL Loading, FT4, 1202, 383 Vertical Tray Flame Test (70,000 BTU)
NEC / UL Compliance	Article 336, TC-ER, XHHW-2, RHW-2, UL Flexible Motor Supply Cable
CEC / C(UL) Compliance	CIC, TC.
ICEA Compliance	S-95-658
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
