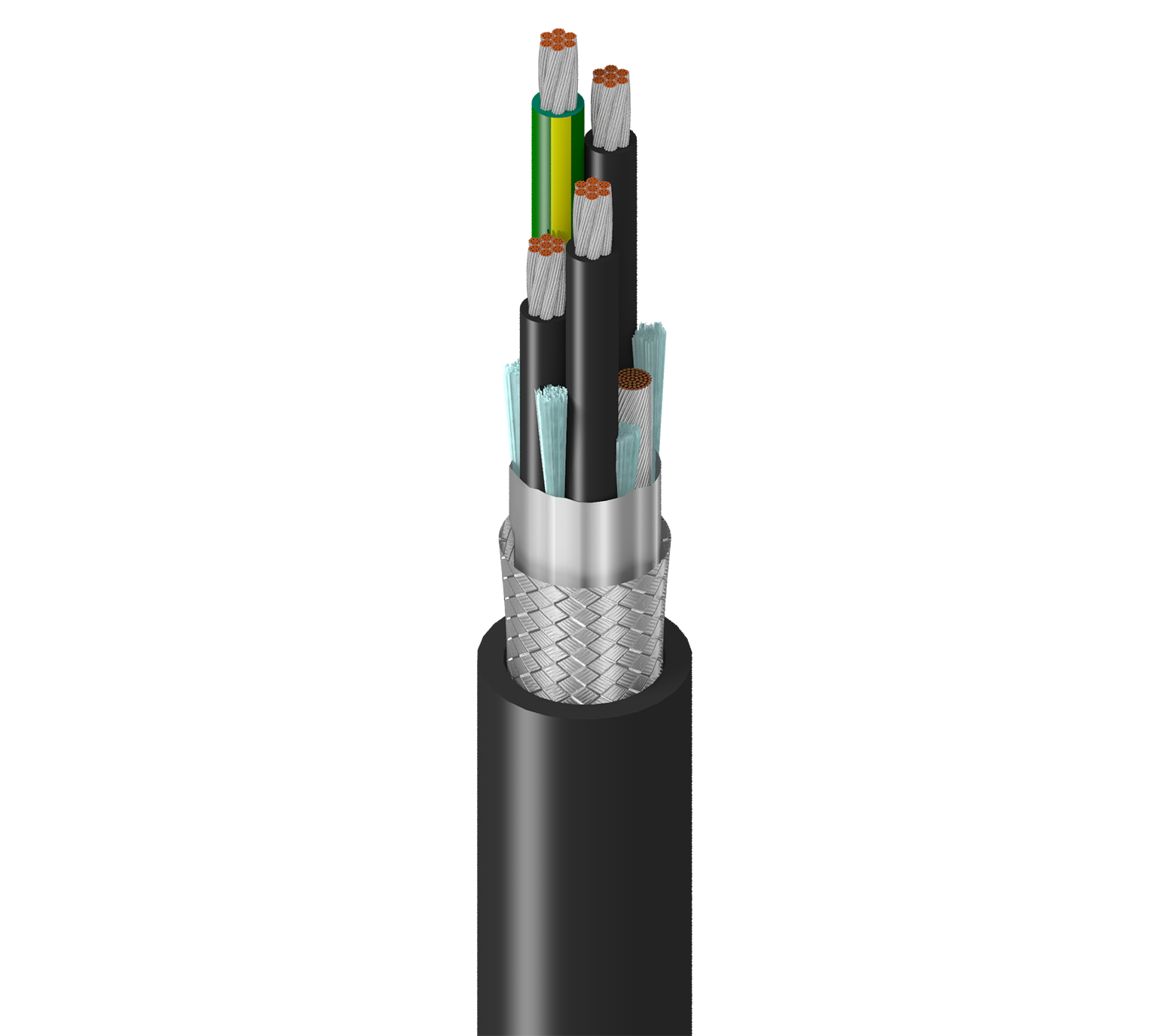

Product Number: 29502F

VFD 300% Gnd, 3C+G #12 Str TC, XLPE Ins+PVC Gnd, OS+TC Brd w/#12 TC Drain, Blk TPE Jkt, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable WTTC

Belden 300% Ground Extra Flexible VFD, 3 Conductor 12AWG (7x24x34) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/12AWG TC Drain, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II

Availability: Global
Status: Active
Orderable items: 2

Ships from and sold by A5 IT.

Part numbers

29502F is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
29502F 0101000	Black	Reel	612825367208	Order online
29502F 0105000	Black	Reel	612825367215	Order online

Specifications

Product Overview

Suitable Applications	Variable Frequency Drives (VFD); AC Motor and Drive Systems, Exposure to high flex, motion, and abrasion, Hard to reach installation areas

Construction Details

Overall Cable Diameter (Nominal)	0.661 in (16.8 mm)

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	3	12 AWG	7x24x34	TC - Tinned Copper
Ground	1	12 AWG	7x24x34	TC - Tinned Copper

Insulation

Element	Material	Nom. Thickness	Color Code
Conductor(s)	XLPE - Cross-Linked Polyethylene (Thermoset)	0.046 in (1.2 mm)	Black and Numbered
Ground	PVC - Polyvinyl Chloride	0.046 in (1.2 mm)	Green/Yellow Stripe

Outer Shield

Shield Type	Material	Coverage
Tape	Tri-Laminate (Alum+Poly+Alum)	100%
Braid	Tinned Copper (TC)	85%

Outer Jacket

Material	TPE - Thermoplastic Elastomer
Nom. Thickness	0.073 in (1.9 mm)
Nom. Diameter	0.661 in (16.8 mm)
Ripcord	Yes

Electrical Characteristics

Electricals

Element	Conductor(s)
Nom. Conductor DCR	1.546 Ohm/1000ft (5.072 Ohm/km)
Nom. Capacitance Cond-to-Cond	29 pF/ft (95 pF/m)
Nom. Capacitance Cond-to-Shield	53 pF/ft (170 pF/m)
Nom. Capacitance Cond-to-Other (Conds + Shield)	53 pF/ft (170 pF/m)
Nom. Characteristic Impedence	63 Ohm
Nom. Velocity of Prop.	55%
Max. Current	30 Amps per Conductor at 30oC (per NEC)

Voltage

UL Voltage Rating	1000 V (TC, WTTC, UL Flexible Motor Supply Cable), 600 V (C(UL) CIC TC)

Mechanical Characteristics

Max. Pull Tension	458 lbs (208 kg)
Bulk Cable Weight	280 lbs/1000ft (420 kg/km)

Temperature

UL Temperature	90°C Dry, 90°C Wet
Operating	-40°C To +90°C

Bend Radius

Stationary Min.	3.3 in (84 mm)
Installation Min.	5.0 in (130 mm)
Flexing Min.	5.0 in (130 mm)

Standards and Compliance

Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	UL1685 UL Loading, FT4, 1202, 383 Vertical Tray Flame Test (70,000 BTU)
NEC / UL Compliance	Article 336, TC-ER, WTTC, RHW-2, UL Flexible Motor Supply Cable
CEC / C(UL) Compliance	CIC, TC.
ICEA Compliance	S-95-658
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
