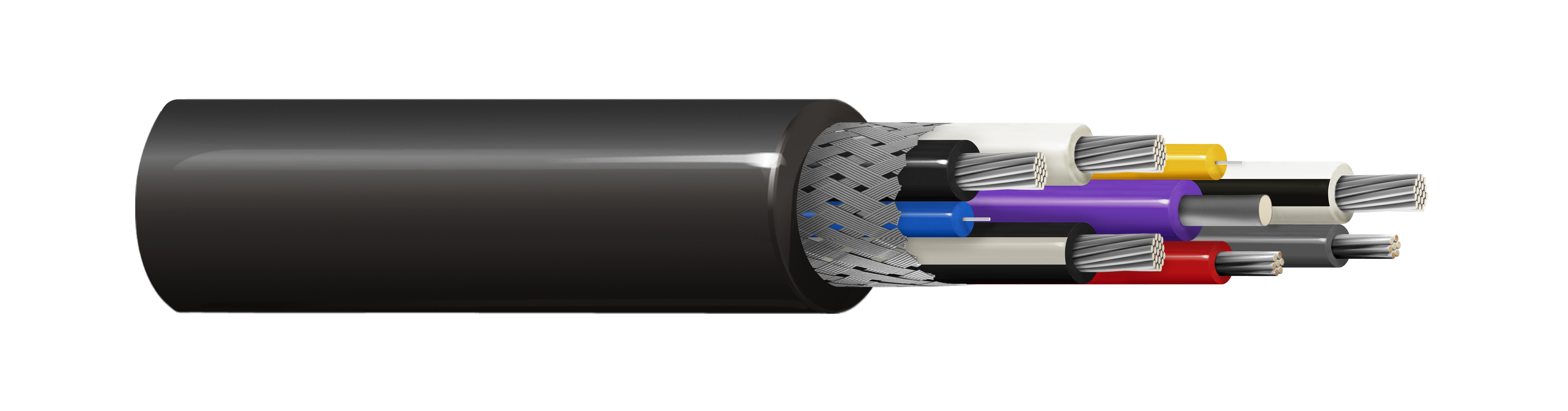

Indoor/Mobile Duty SMPTE 311M Cable, 2 Fiber, 2 Conductor 24 AWG, 4 Conductor 20 AWG, FRNC jacket
Indoor/Mobile SMPTE 311M Cable, 2 Single Mode Fibers, 2 TC Conductors 24 AWG (7x32) and 4 TC Conductors 20 AWG (19x32), FRNC Insulation, TC Braid Shield (80% coverage), FRNC Jacket
- Availability
- Global
- Status
- Active
Specifications
Product Overview
| Suitable Applications | SMPTE 311M CAMERA CABLE |
|---|
Multiconductor
| Shielding Type | Braid(s) |
|---|
Multiconductor Conductor and Insulation
| Element | No. of Conductors | AWG | Stranding | Material | Nominal Conductor DCR | Insulation Material | Insulation Nominal Diameter |
|---|---|---|---|---|---|---|---|
| 24 AWG | 2 | 24 | 7x32 | TC - Tinned Copper | 92 Ohm/km | LSZH/FRNC | 1.22 mm |
| 20 AWG | 4 | 20 | 19x32 | TC - Tinned Copper | 36 Ohm/km | LSZH / FRNC | 1.57 mm |
Multiconductor Color Chart
| Description | Color |
|---|---|
| 24 AWG | Red |
| 24 AWG | Gray |
| 20 AWG | Black |
| 20 AWG | White |
| 20 AWG | White/Black |
| 20 AWG | Black/White |
Multiconductor UL Voltage
| UL Description | UL Voltage Rating |
|---|---|
| 24 AWG | 300 V RMS |
| 20 AWG | 300 V RMS |
Fiber
| Fiber Color Code | Yellow, Blue |
|---|---|
| Mode Field Diameter | 9.2 μm |
| Wavelength@Optical SM1 | 1310 nm, 1550 nm |
| Maximum Attenuation at 1310 nm | 0.50 dB/km |
| Maximum Attenuation at 1550 nm | 0.50 dB/km |
Fiber Cable Construction
| Fiber Type | OS2 |
|---|---|
| Fiber Count | 2 |
Buffer Specification
| Buffer Material | Thermoplastic |
|---|---|
| Buffer Diameter | 900 μm |
Overall Cable
| Conductor Material: | Tinned Copper |
|---|---|
| Outer Jacket Material | LSZH / FRNC |
| Nominal Diameter@OuterJacket1 1_CP_OV | 9.2 mm |
| Operating Temperature Range | -40°C To +75°C |
| Installation Temperature Range | -10°C To +70°C |
| Storage Temperature Range | -40°C To +75°C |
| Maximum Recommended Pulling Tension | 1350 N |
Outer Jacket
| Nominal Diameter | 9.2 mm |
|---|
Overall Shielding
| Layer 1 | Overall |
|---|---|
| Type | Braid |
| Material | TC - Tinned Copper |
| Coverage | 80 % |
Applicable Standards & Environmental Programs
| EU Directive 2011/65/EU (RoHS 2) | Yes |
|---|---|
| EU Directive 2015/863/EU (RoHS 2 amendment) | Yes |
| EU Directive 2000/53/EC (ELV) | Yes |
| EU Directive 2012/19/EU (WEEE) | Yes |
| EU Directive 2003/11/EC (BFR) | Yes |
| EU CE Mark | Yes |
| CPR Euroclass | Cca-s1,d1,a1 |
| IEC 60754-1 - Halogen Amount | Zero |
Suitability
| Suitability - Burial | No |
|---|---|
| Suitability - Indoor | Yes |
| Suitability - Non-Halogenated | Yes |
| Suitability - Outdoor | Yes |
| Suitability - Sunlight Resistance | Yes - UL 1581 sec 1200 Black Only |
Flame Test
| IEC Flammability | IEC 60332-1-2 |
|---|
Plenum/Non-Plenum
| Plenum (Y/N) | N |
|---|
History
| Update and Revision | Revision Number: 0.153 Revision Date: 03-09-2026 |
|---|
