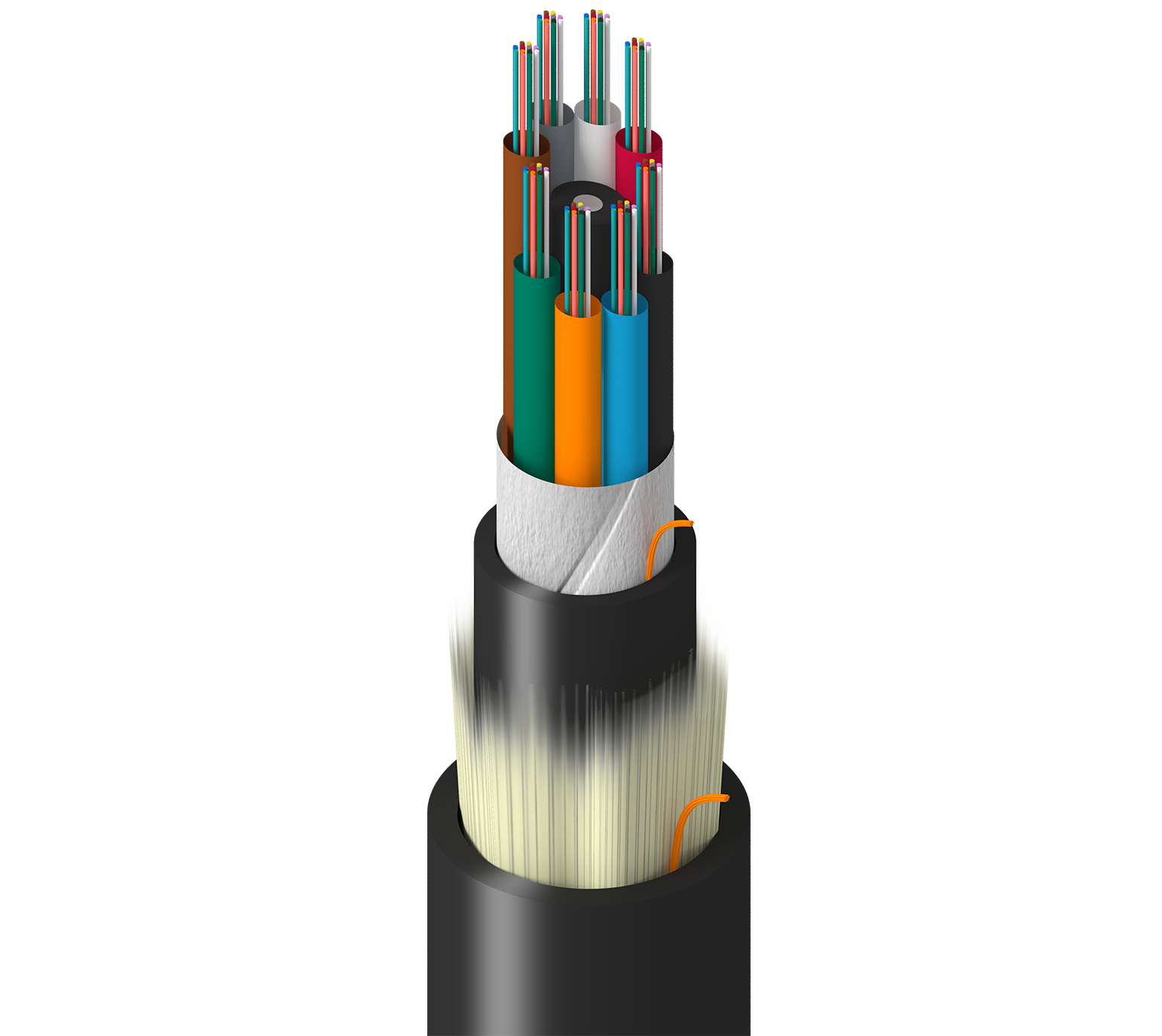

Tray, In+Outdoor, MLT, OS2, 96f, Gel Tubes 2.8mm, Dbl Jkt - PVC & CPE, OFNR, Oil Res 1/2
DataTuff Tray, Indoor/Outdoor, Multi-Loose-Tube, OS2, 96 Fibers, Gel Filled Tubes 2.8mm, Double Jacket - PVC Inner / CPE Outer, OFNR, Oil Res 1 & 2
- Availability
- Global
- Status
- Active
- Orderable items
- 1
Part numbers
TU-SLG-096-R22 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.
| Item # | Color | Putup Type | Order |
|---|---|---|---|
| TU-SLG-096-R22N | Black | Reel | Order online |
Specifications
Product Overview
| Product Category | Fiber Multi-Loose Tube Cable |
|---|---|
| Suitable Applications | Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations |
Fiber Specifications
| Fiber Type | OS2 |
|---|---|
| Fiber Core Diameter | 8.2/125 μm |
| Fiber Diameter | 250 μm |
| Fiber Count | 96 |
| Fiber Color Coding | TIA-598-D |
Cable Construction
| Number of Active Subunits | 8 |
|---|---|
| Fibers Per Subunit | 12 |
| Subunit Waterblocking | Gel Filled |
| Subunit Diameter | 0.110 in (2.8 mm) |
| Subunit Color | TIA-598-D |
| Central Strength Member Type | Upjacketed GRP |
| Core Wrap Material | Waterblocking tape |
Inner Jacket Specifications
| Material | PVC - Polyvinyl Chloride |
|---|---|
| Nominal Diameter@InnerJacket1 (cnv) | 0.472 in (12.0 mm) |
| Color | Black |
Outer Jacket Specifications
| Nom. Diameter | 0.607 in (15.4 mm) |
|---|
Optical Characteristics
| Wavelength | 1310 nm | 1550 nm |
|---|---|---|
| Max. Attenuation | 0.40 dB/km | 0.30 dB/km |
| Mode Field Diameter | 9.2 μm | 10.4 μm |
| 1 Gigabit Ethernet Performance | 5,000 m | - |
| 10 Gigabit Ethernet Performance | 10,000 m | 40,000 m |
Mechanical Characteristics
| Minimum Bend Radius During Installation | 15x Cable OD |
|---|---|
| Minimum Bend Radius During Operation | 10x Cable OD |
| Max. Tensile Strength During Installation | 2670 N (600 |
| Max. Tensile Strength During Operation | 800 N (180 lbf) |
| Crush Resistance | 220 N/cm |
| Bulk Cable Weight | 147 lbs/kft (219 kg/km) |
Temperature Range
| Installation Temperature Range | -10°C to +60°C |
|---|---|
| Operating Temperature Range | -50°C to +70°C |
| Storage Temperature Range | -50°C to +70°C |
Standards and Compliance
| Environmental Suitability | Indoor/Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance - Oil Res I/II |
|---|---|
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | OFNR, FT4 |
History
| Update and Revision | Revision Number: 0.27 Revision Date: 09-07-2025 |
|---|
