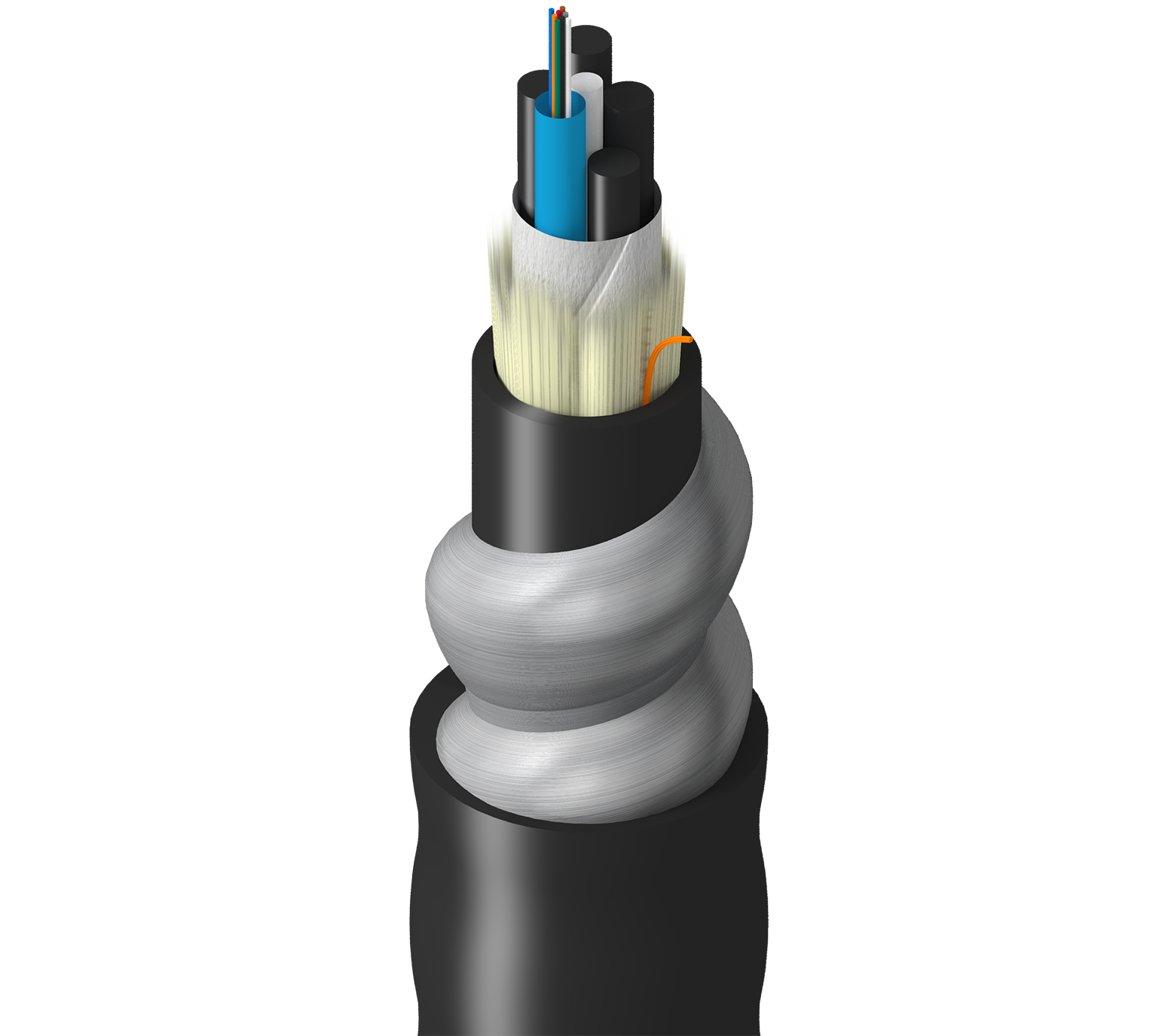

Product Number: TU-SLG-008-RH2

Tray, In+Outdoor, MLT, OS2, 8f, Gel Tubes 2.8mm, SIA, Dbl Jkt, Blk, CPE, OFCR, Oil Res 1/2

DataTuff Tray, Indoor/Outdoor, Multi-Loose-Tube, OS2, 8 Fibers, Gel Filled Tubes 2.8mm, Steel Interlock Armor, Double Jacket, Black, CPE, OFCR, Oil Res 1 & 2

Availability: Global
Status: Active
Orderable items: 1

Ships from and sold by A5 IT.

Part numbers

TU-SLG-008-RH2 is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #	Color	Putup Type	UPC	Order
TU-SLG-008-RH2N	Black	Cut to Length	612825486213	Order online

Specifications

Product Overview

Product Category	Fiber Multi-Loose Tube Cable
Suitable Applications	Extended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Proof

Fiber Specifications

Fiber Type	OS2
Fiber Core Diameter	8.2/125 μm
Fiber Diameter	250 μm
Fiber Count	8
Fiber Color Coding	TIA-598-D

Cable Construction

Number of Active Subunits	1
Number of Fillers	4
Fibers Per Subunit	8
Subunit Waterblocking	Gel Filled
Subunit Diameter	0.110 in (2.8 mm)
Subunit Color	TIA-598-D
Central Strength Member Type	GRP
Core Wrap Material	Waterblocking tape

Inner Jacket Specifications

Inner Jacket Strength Member	Waterblocking Aramid Yarns
Material	PVC - Polyvinyl Chloride
Nominal Diameter@InnerJacket1 (cnv)	0.454 in (11.5 mm)
Color	Black
Number of Inner Jacket Ripcords	1

Armor Specifications

Armor Type and Material	SIA - Steel Interlock Armor

Outer Jacket Specifications

Jacket Material	CPE - Chlorinated Polyethylene
Nom. Diameter	0.765 in (19.4 mm)

Optical Characteristics

Wavelength	1310 nm	1550 nm
Max. Attenuation	0.40 dB/km	0.30 dB/km
Mode Field Diameter	9.2 μm	10.4 μm
1 Gigabit Ethernet Performance	5,000 m	-
10 Gigabit Ethernet Performance	10,000 m	40,000 m

Mechanical Characteristics

Minimum Bend Radius During Installation	20x Cable OD
Minimum Bend Radius During Operation	10x Cable OD
Max. Tensile Strength During Installation	2670 N (600 lbf)
Max. Tensile Strength During Operation	800 N (180 lbf)
Crush Resistance	440 N/cm
Bulk Cable Weight	307 lbs/kft (457 kg/km)

Temperature Range

Installation Temperature Range	-10°C to +60°C
Operating Temperature Range	-50°C to +70°C
Storage Temperature Range	-50°C to +70°C

Standards and Compliance

Environmental Suitability	Indoor/Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance - Oil Res I/II, Burial
Sustainability	CA Prop 65
Flammability / Reaction to Fire	OFCR, FT4
ICEA Compliance	S-104-696

History

Update and Revision	Revision Number: 0.15 Revision Date: 09-07-2025
