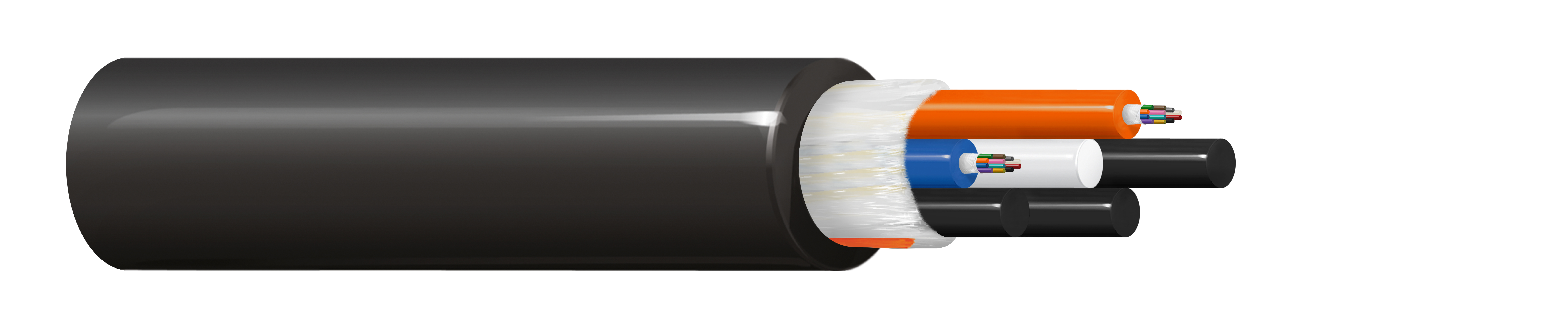

TU-4LD-024-RR2N

Product Number: TU-4LD-024-RR2N

Indoor/Outdoor Multi-Loose Tube OM4 24 Fibers Dry Tubes 2.5mm Rodent Resistant Single Jacket

Tray Grade, Indoor/Outdoor, Multi-Loose-Tube, OM4, 24 Fibers, Dry Tubes 2.5mm, Rodent Resistant, Single Jacket, Black, CPE, OFNR, Oil Res 1 & 2

Availability
Global
Status
Active
Orderable items
1
Request a quoteOrder options (1)

Ships from and sold by A5 IT.

Part numbers

TU-4LD-024-RR2N is a product family. Each item number below is a separate orderable part — colour, put-up and length differ.

Item #ColorPutup TypeOrder
TU-4LD-024-RR2NBlackReelOrder online

Specifications

Product Overview

Product CategoryFiber Multi-Loose Tube Cable
Suitable ApplicationsExtended Distance Horizontal & Backbone Data/Telco Network, Noisy Environment, Indoor/Outdoor & Wet Locations, Rodent Resistant, UV Resistant, Oil Res 1 & 2

Fiber Specifications

Fiber TypeOM4
Fiber Core Diameter50/125 μm
Fiber Diameter250 μm
Fiber Count24
Fiber Color CodingTIA-598-D

Cable Construction

Number of Active Subunits2
Number of Fillers3
Fibers Per Subunit12
Subunit WaterblockingGel Free
Subunit Diameter0.098 in (2.5 mm)
Subunit ColorTIA-598-D
Central Strength Member TypeGRP

Outer Jacket Specifications

Strength MemberFiberglass Yarns
Jacket MaterialCPE - Chlorinated Polyethylene
Nom. Diameter0.421 in (10.7 mm)
Outer Jacket ColorBlack
Outer Jacket Ripcord1

Optical Characteristics

Wavelength850 nm1300 nm
Max. Attenuation3.0 dB/km1.0 dB/km
10 Gigabit Ethernet Performance400 m--
40 Gigabit Ethernet Performance150 m--
100 Gigabit Ethernet Performance100 m--
Min. Effective Modal Bandwidth (EMB)4700 MHz.km--
Min. Overfilled Launch (OFL) Bandwidth3500 MHz.km500 MHz.km

Mechanical Characteristics

Minimum Bend Radius During Installation15x Cable OD
Minimum Bend Radius During Operation10x Cable OD
Max. Tensile Strength During Installation2670 N (600 lbf)
Max. Tensile Strength During Operation800 N (180 lbf)
Crush Resistance220 N/cm
Bulk Cable Weight70 lbs/kft (104 kg/km)

Temperature Range

Installation Temperature Range-10°C to +60°C
Operating Temperature Range-50°C to +70°C
Storage Temperature Range-50°C to +70°C

Standards and Compliance

Environmental SuitabilityIndoor/Outdoor, Sunlight Resistance
Flammability / Reaction to FireUL1666, UL 1685
NEC / UL ComplianceOFNR
CEC / C(UL) ComplianceFT4.
ICEA ComplianceS-104-696
TIA/EIA Compliance568.3, 598-D
European Directive ComplianceEU Directive 2015/863/EU (RoHS 2 amendment)

History

Update and RevisionRevision Number: 0.2 Revision Date: 01-12-2026
